Current Regulator Diode. 500 Series / SST500 Series. FEATURES. ORDERING INFORMATION. Simple Two Lead Current Sources

Datasheet J500, SST500 Calogic

Línea de modelo para esta hoja de datos

Versión de texto del documento

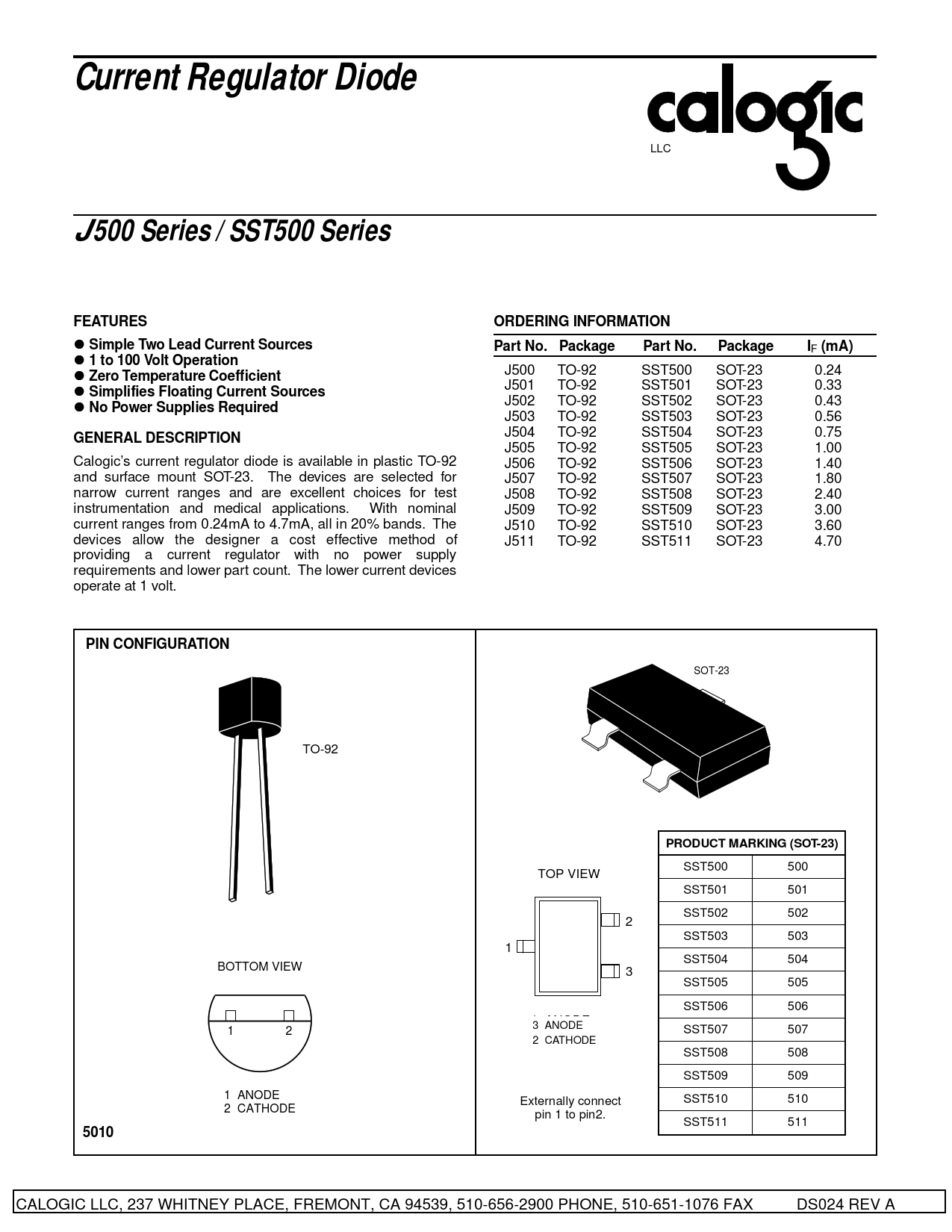

Current Regulator Diode
LLC
J 500 Series / SST500 Series FEATURES ORDERING INFORMATION

Simple Two Lead Current Sources

Part No. Package Part No. Package I
F
(mA) 1 to 100 Volt Operation

Zero Temperature Coefficient
J500 TO-92 SST500 SOT-23 0.24 •
Simplifies Floating Current Sources
J501 TO-92 SST501 SOT-23 0.33 •
No Power Supplies Required
J502 TO-92 SST502 SOT-23 0.43 J503 TO-92 SST503 SOT-23 0.56
GENERAL DESCRIPTION
J504 TO-92 SST504 SOT-23 0.75 J505 TO-92 SST505 SOT-23 1.00 Calogic’s current regulator diode is available in plastic TO-92 J506 TO-92 SST506 SOT-23 1.40 and surface mount SOT-23. The devices are selected for J507 TO-92 SST507 SOT-23 1.80 narrow current ranges and are excellent choices for test J508 TO-92 SST508 SOT-23 2.40 instrumentation and medical applications. With nominal J509 TO-92 SST509 SOT-23 3.00 current ranges from 0.24mA to 4.7mA, all in 20% bands. The J510 TO-92 SST510 SOT-23 3.60 devices allow the designer a cost effective method of J511 TO-92 SST511 SOT-23 4.70 providing a current regulator with no power supply requirements and lower part count. The lower current devices operate at 1 volt.
PIN CONFIGURATION
SOT-23 TO-92
PRODUCT MARKING (SOT-23)
SST500 500 TOP VIEW SST501 501 SST502 502 2 SST503 503 1 SST504 504 BOTTOM VIEW 3 SST505 505 SST506 506 1 ANODE 3 ANODE 1 2 SST507 507 2 CATHODE 2 CATHODE SST508 508 SST509 509 1 ANODE Externally connect SST510 510 2 CATHODE pin 1 to pin2. SST511 511
5010
CALOGIC LLC, 237 WHITNEY PLACE, FREMONT, CA 94539, 510-656-2900 PHONE, 510-651-1076 FAX DS024 REV A
