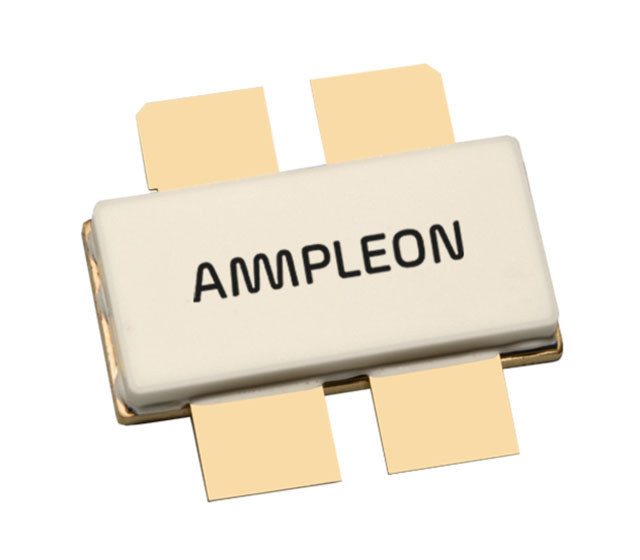

Datasheet Ampleon CLF09H4LS800PU — Ficha de datos

Application
Catalog RF power solutions for
MultiMarket September 2026 Advancing society
through RF
Welcome to our catalog, designed to provide you with a comprehensive overview of our extensive
range of MultiMarket RF power applications, targeting Navigation and Safety Radio, Broadcast,
Industrial, Scientific, and Medical.
Going beyond the ordinary, our dedicated application support service offers a holistic approach,
including in-depth package mechanical force simulations to ensure every component is finely tuned to
perfection. Delving further, we conduct lifetime and reliability calculations, offering invaluable insights
to optimize performance and ensure sustained longevity.
To guarantee robustness, our service encompasses detailed thermal simulations and rigorous Power
Cycle Tests, subjecting your designs to real-world conditions. Strengthening our commitment, we
employ systematic statistical data gathering, establishing a solid foundation for product consistency
and providing actionable insights for continuous improvement.
Highlights of this catalog include:
• • • • • AR211135: smallest footprint and 90 % efficiency SSPA for 13.56 MHz with ART2K0FE
AR241030: industry-leading CW design for high-power 2.4 GHz ISM applications
AR211072: providing over 1 kW output power at 650 MHz with the BLF978P
AR201110: avionics long-pulse 700 W GaN SSPA design using the CLL3H0914L(S)-700
AR191191: industry's best ultra-wideband UHF-TV design using the BLF989E Download the latest version www.ampleon.com/acmm 2 Application Catalog - September 2026 | www.ampleon.com Navigation and Safety Radio
Page 8-11 Broadcast
Page 12-13 Industrial, Scientific and Medical …
