Descripción18-Bit, 250ksps, Pseudo-Differential Unipolar SAR ADC with 97dB SNR
Páginas / Página24 / 1 — FEATURES. DESCRIPTION. 250ksps Throughput Rate. ±2.5LSB INL (Max). …
Formato / tamaño de archivoPDF / 2.1 Mb
Idioma del documentoInglés

FEATURES. DESCRIPTION. 250ksps Throughput Rate. ±2.5LSB INL (Max). Guaranteed 18-Bit No Missing Codes

Datasheet LTC2364-18 Analog Devices

Línea de modelo para esta hoja de datos

Versión de texto del documento

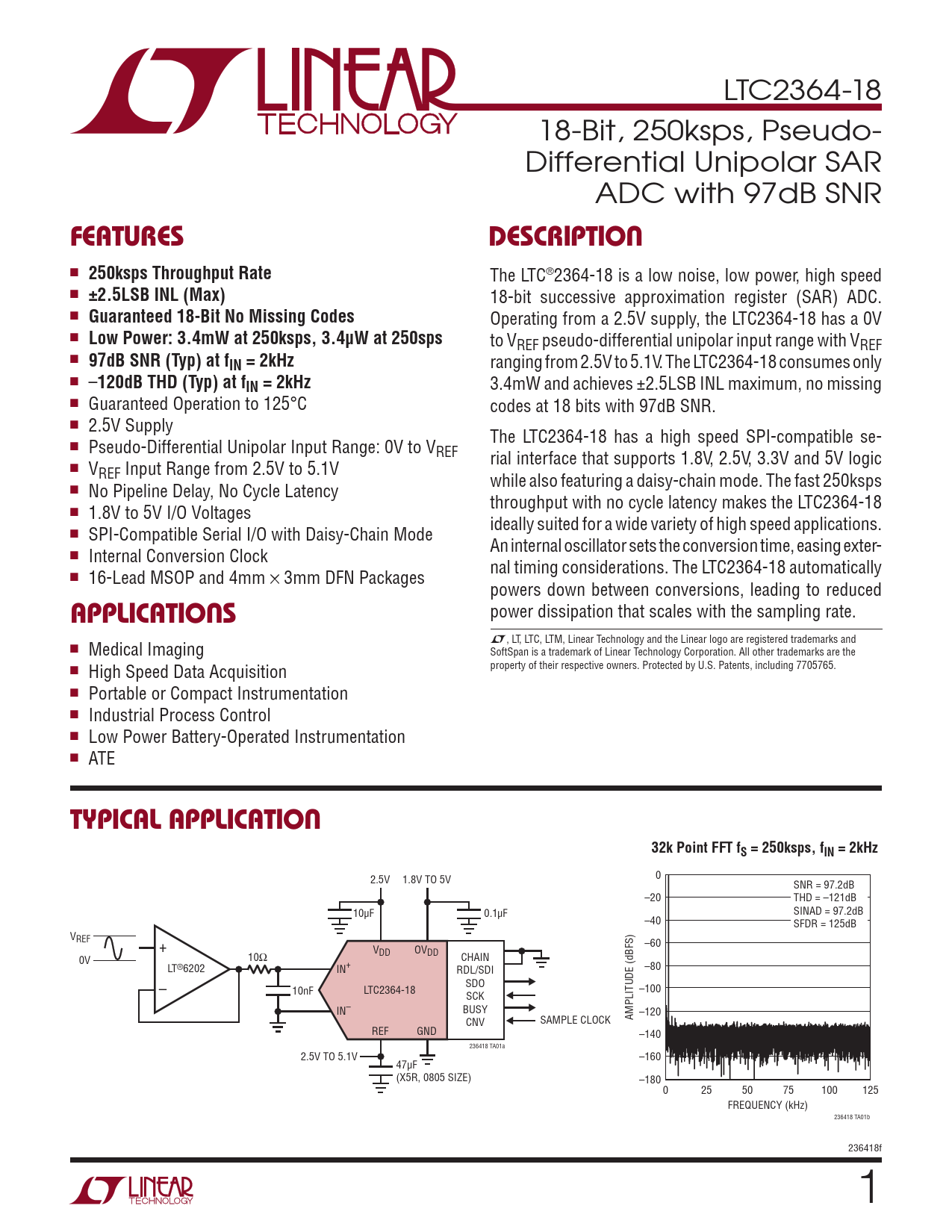

LTC2364-18 18-Bit, 250ksps, Pseudo- Differential Unipolar SAR ADC with 97dB SNR
FEATURES DESCRIPTION
n
250ksps Throughput Rate
The LTC®2364-18 is a low noise, low power, high speed n
±2.5LSB INL (Max)
18-bit successive approximation register (SAR) ADC. n
Guaranteed 18-Bit No Missing Codes
Operating from a 2.5V supply, the LTC2364-18 has a 0V n
Low Power: 3.4mW at 250ksps, 3.4µW at 250sps
to VREF pseudo-differential unipolar input range with VREF n
97dB SNR (Typ) at fIN = 2kHz
ranging from 2.5V to 5.1V. The LTC2364-18 consumes only n –
120dB THD (Typ) at fIN = 2kHz
3.4mW and achieves ±2.5LSB INL maximum, no missing n Guaranteed Operation to 125°C codes at 18 bits with 97dB SNR. n 2.5V Supply The LTC2364-18 has a high speed SPI-compatible se- n Pseudo-Differential Unipolar Input Range: 0V to VREF rial interface that supports 1.8V, 2.5V, 3.3V and 5V logic n VREF Input Range from 2.5V to 5.1V while also featuring a daisy-chain mode. The fast 250ksps n No Pipeline Delay, No Cycle Latency throughput with no cycle latency makes the LTC2364-18 n 1.8V to 5V I/O Voltages ideally suited for a wide variety of high speed applications. n SPI-Compatible Serial I/O with Daisy-Chain Mode An internal oscillator sets the conversion time, easing exter- n Internal Conversion Clock nal timing considerations. The LTC2364-18 automatically n 16-Lead MSOP and 4mm × 3mm DFN Packages powers down between conversions, leading to reduced power dissipation that scales with the sampling rate.
APPLICATIONS
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and n Medical Imaging SoftSpan is a trademark of Linear Technology Corporation. All other trademarks are the property of their respective owners. Protected by U.S. Patents, including 7705765. n High Speed Data Acquisition n Portable or Compact Instrumentation n Industrial Process Control n Low Power Battery-Operated Instrumentation n ATE
TYPICAL APPLICATION 32k Point FFT fS = 250ksps, fIN = 2kHz
