Datasheet AD713 (Analog Devices)

FabricanteAnalog Devices
DescripciónPrecision, High Speed, BiFET Quad Op Amp
Páginas / Página12 / 1 — DLA LAND AND MARITIME. COLUMBUS, OHIO 43218-3990. STANDARD. …
Formato / tamaño de archivoPDF / 123 Kb
Idioma del documentoInglés

DLA LAND AND MARITIME. COLUMBUS, OHIO 43218-3990. STANDARD. http://www.landandmaritime.dla.mil. MICROCIRCUIT. DRAWING. 5962-90633

Datasheet AD713 Analog Devices

Línea de modelo para esta hoja de datos

Versión de texto del documento

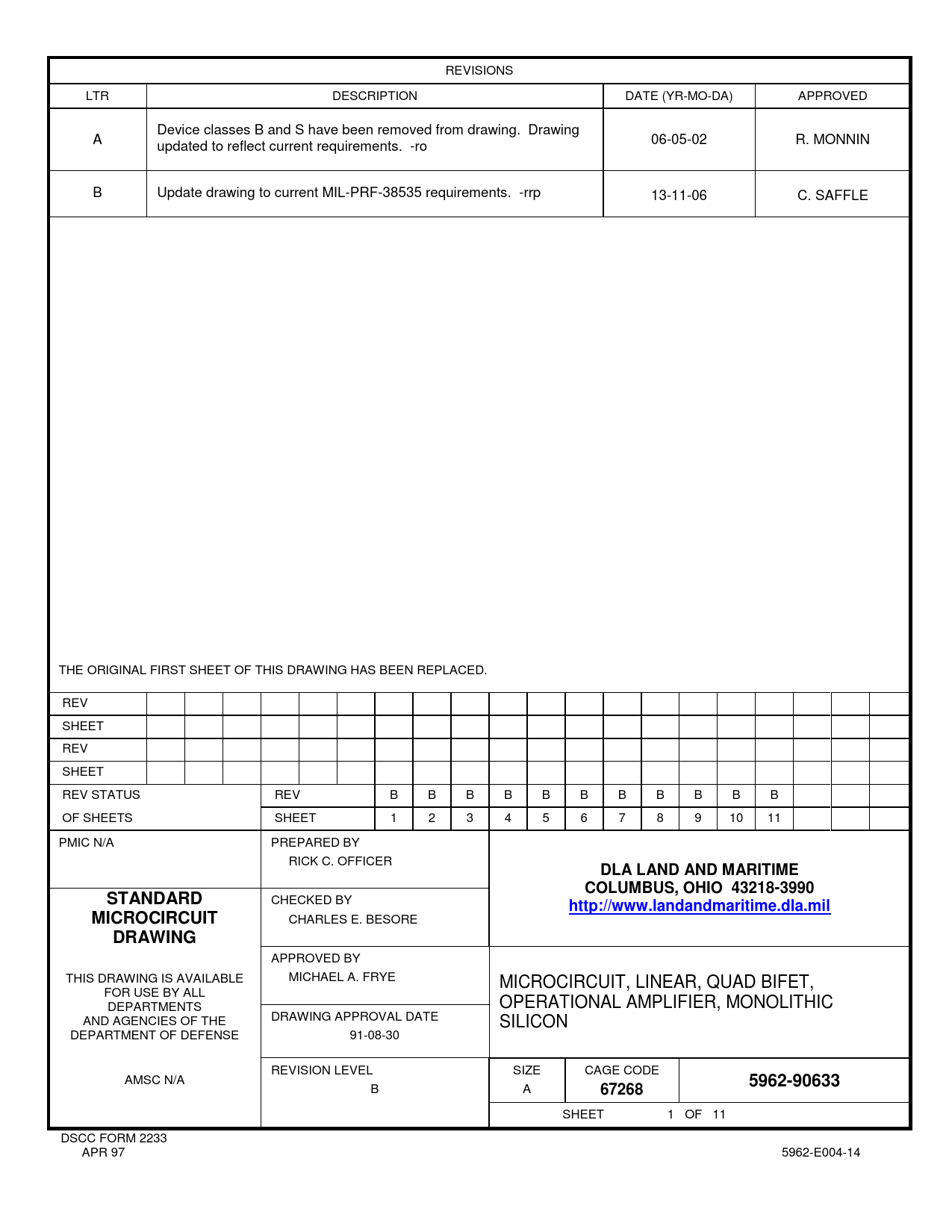

REVISIONS LTR DESCRIPTION DATE (YR-MO-DA) APPROVED Device classes B and S have been removed from drawing. Drawing A updated to reflect current requirements. -ro 06-05-02 R. MONNIN B Update drawing to current MIL-PRF-38535 requirements. -rrp 13-11-06 C. SAFFLE THE ORIGINAL FIRST SHEET OF THIS DRAWING HAS BEEN REPLACED. REV SHEET REV SHEET REV STATUS REV B B B B B B B B B B B OF SHEETS SHEET 1 2 3 4 5 6 7 8 9 10 11 PMIC N/A PREPARED BY RICK C. OFFICER
DLA LAND AND MARITIME COLUMBUS, OHIO 43218-3990 STANDARD
CHECKED BY
http://www.landandmaritime.dla.mil MICROCIRCUIT
CHARLES E. BESORE
DRAWING
APPROVED BY THIS DRAWING IS AVAILABLE MICHAEL A. FRYE MICROCIRCUIT, LINEAR, QUAD BIFET, FOR USE BY ALL DEPARTMENTS OPERATIONAL AMPLIFIER, MONOLITHIC AND AGENCIES OF THE DRAWING APPROVAL DATE SILICON DEPARTMENT OF DEFENSE 91-08-30 REVISION LEVEL SIZE CAGE CODE AMSC N/A
5962-90633
B A
67268
SHEET 1 OF 11 DSCC FORM 2233 APR 97 5962-E004-14 Document Outline DEPARTMENT OF DEFENSE SPECIFICATION DEPARTMENT OF DEFENSE STANDARDS
