DIE CROSS REFERENCE. PAD FUNCTION. DICE ELECTRICAL TEST LI ITS TA = 25. C. VS =. 20V unless otherwise noted. TA = 25. SYMBOL
Línea de modelo para esta hoja de datos
Versión de texto del documento

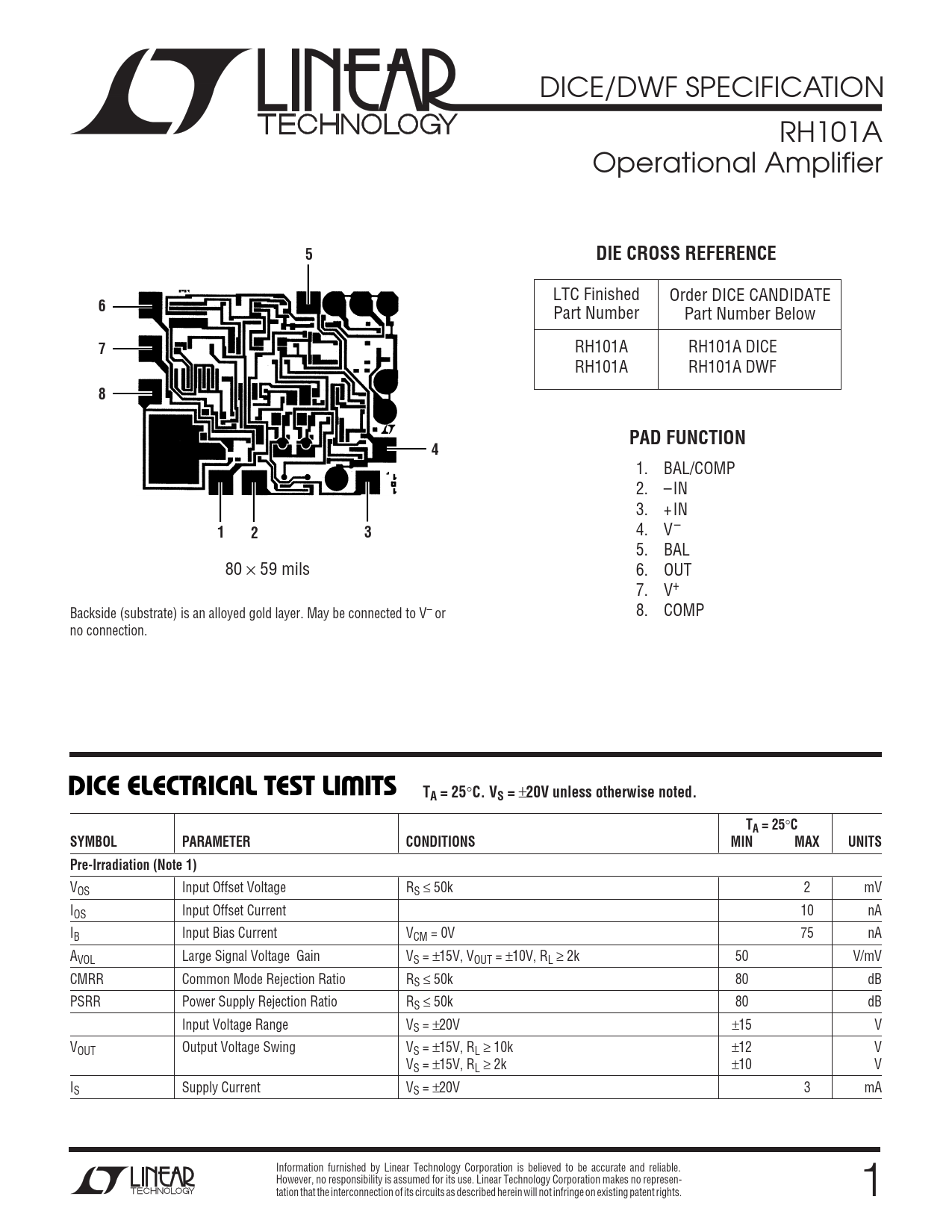

DICE/DWF SPECIFICATION RH101A Operational Amplifier
5 DIE CROSS REFERENCE
LTC Finished Order DICE CANDIDATE
6
Part Number Part Number Below
7
RH101A RH101A DICE RH101A RH101A DWF
8 PAD FUNCTION 4
1. BAL/COMP 2. –IN 3. +IN
1 2 3
4. V– 5. BAL 80 × 59 mils 6. OUT 7. V+ Backside (substrate) is an alloyed gold layer. May be connected to V– or 8. COMP no connection.
W DICE ELECTRICAL TEST LI ITS TA = 25
°
C. VS =
±
20V unless otherwise noted. TA = 25
°
C SYMBOL PARAMETER CONDITIONS MIN MAX UNITS Pre-Irradiation (Note 1)
VOS Input Offset Voltage RS ≤ 50k 2 mV IOS Input Offset Current 10 nA IB Input Bias Current VCM = 0V 75 nA AVOL Large Signal Voltage Gain VS = ±15V, VOUT = ±10V, RL ≥ 2k 50 V/mV CMRR Common Mode Rejection Ratio RS ≤ 50k 80 dB PSRR Power Supply Rejection Ratio RS ≤ 50k 80 dB Input Voltage Range VS = ±20V ±15 V VOUT Output Voltage Swing VS = ±15V, RL ≥ 10k ±12 V VS = ±15V, RL ≥ 2k ±10 V IS Supply Current VS = ±20V 3 mA Information furnished by Linear Technology Corporation is believed to be accurate and reliable. However, no responsibility is assumed for its use. Linear Technology Corporation makes no represen- tation that the interconnection of its circuits as described herein will not infringe on existing patent rights. 1
