Datasheet IGT40R070D1 E8220 (Infineon)

FabricanteInfineon
DescripciónCoolGaN™ 400V enhancement-mode power transistor
Páginas / Página16 / 1 — IGT40R070D1. E8220. IGT40R070D1. E8220. 400V. CoolGaN™. enhancement-mode. …
Revisión02_00
Formato / tamaño de archivoPDF / 525 Kb
Idioma del documentoInglés

IGT40R070D1. E8220. IGT40R070D1. E8220. 400V. CoolGaN™. enhancement-mode. Power. Transistor. The. 400V. CoolGaNTM. family. is. the. derivative. of

Datasheet IGT40R070D1 E8220 Infineon, Revisión: 02_00

Línea de modelo para esta hoja de datos

Versión de texto del documento

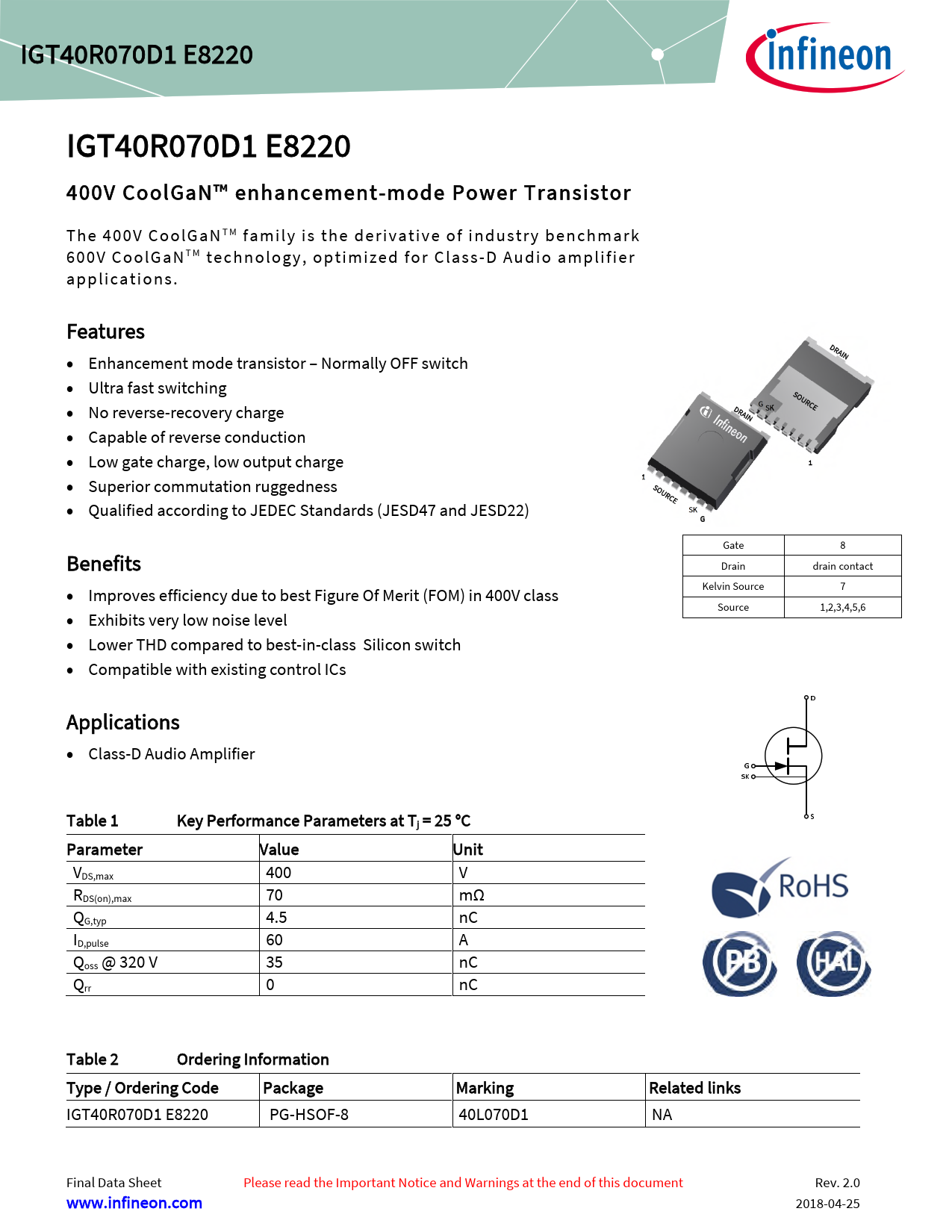

IGT40R070D1 E8220 IGT40R070D1 E8220 400V CoolGaN™ enhancement-mode Power Transistor The 400V CoolGaNTM family is the derivative of industry benchmark 600V CoolGaNTM technology, optimized for Class-D Audio amplifier applications. Features • Enhancement mode transistor – Normal y OFF switch • Ultra fast switching • No reverse-recovery charge G SK • Capable of reverse conduction • Low gate charge, low output charge 1 1 • Superior commutation ruggedness • Qualified according to JEDEC Standards (JESD47 and JESD22) SK G Gate 8 Benefits Drain drain contact • Improves efficiency due to best Figure Of Merit (FOM) in 400V class Kelvin Source 7 Source 1,2,3,4,5,6 • Exhibits very low noise level • Lower THD compared to best-in-class Silicon switch • Compatible with existing control ICs Applications • Class-D Audio Amplifier Table 1 Key Performance Parameters at Tj = 25 °C Parameter Value Unit VDS,max 400 V RDS(on),max 70 mΩ QG,typ 4.5 nC ID,pulse 60 A Qoss @ 320 V 35 nC Qrr 0 nC Table 2 Ordering Information Type / Ordering Code Package Marking Related links IGT40R070D1 E8220 PG-HSOF-8 40L070D1 NA Final Data Sheet Please read the Important Notice and Warnings at the end of this document Rev. 2.0 www.infineon.com 2018-04-25
