OP290. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter1. Rating. Table 4. Package Type. θ 1. Unit. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 5 link to page 5

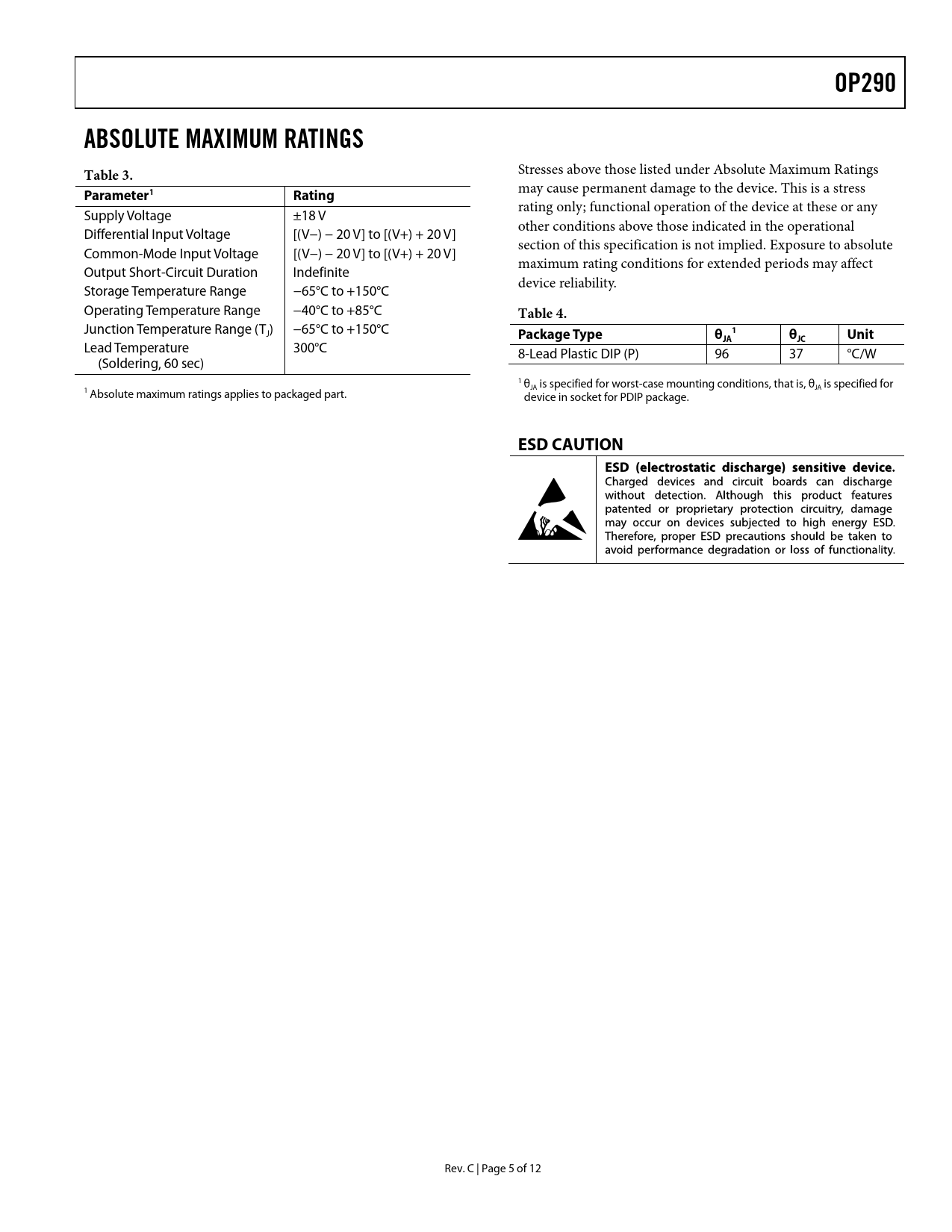

OP290 ABSOLUTE MAXIMUM RATINGS Table 3.
Stresses above those listed under Absolute Maximum Ratings
Parameter1 Rating
may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any Supply Voltage ±18 V other conditions above those indicated in the operational Differential Input Voltage [(V−) − 20 V] to [(V+) + 20 V] section of this specification is not implied. Exposure to absolute Common-Mode Input Voltage [(V−) − 20 V] to [(V+) + 20 V] maximum rating conditions for extended periods may affect Output Short-Circuit Duration Indefinite device reliability. Storage Temperature Range −65°C to +150°C Operating Temperature Range −40°C to +85°C
Table 4.
Junction Temperature Range (T ) −65°C to +150°C J
Package Type θ 1 θ Unit JA JC
Lead Temperature 300°C 8-Lead Plastic DIP (P) 96 37 °C/W (Soldering, 60 sec) 1 θ 1 Absolute maximum ratings applies to packaged part. JA is specified for worst-case mounting conditions, that is, θJA is specified for device in socket for PDIP package.
ESD CAUTION
Rev. C | Page 5 of 12 Document Outline Features Pin Connections General Description Revision History Specifications Electrical Characteristics Absolute Maximum Ratings ESD Caution Typical Performance Characteristics Theory of Operation Battery-Powered Applications Input Voltage Protection Single-Supply Output Voltage Range Applications Information Temperature to 4 mA to 20 mA Transmitter Variable Slew Rate Filter Low Overhead Voltage Reference Outline Dimensions Ordering Guide
