Nexperia. PMEG120G10ELR. 120 V, 1 A Silicon Germanium (SiGe) rectifier. 13. Soldering

Nexperia PMEG120G10ELR 120 V, 1 A Silicon Germanium (SiGe) rectifier 13 Soldering

Línea de modelo para esta hoja de datos

Versión de texto del documento

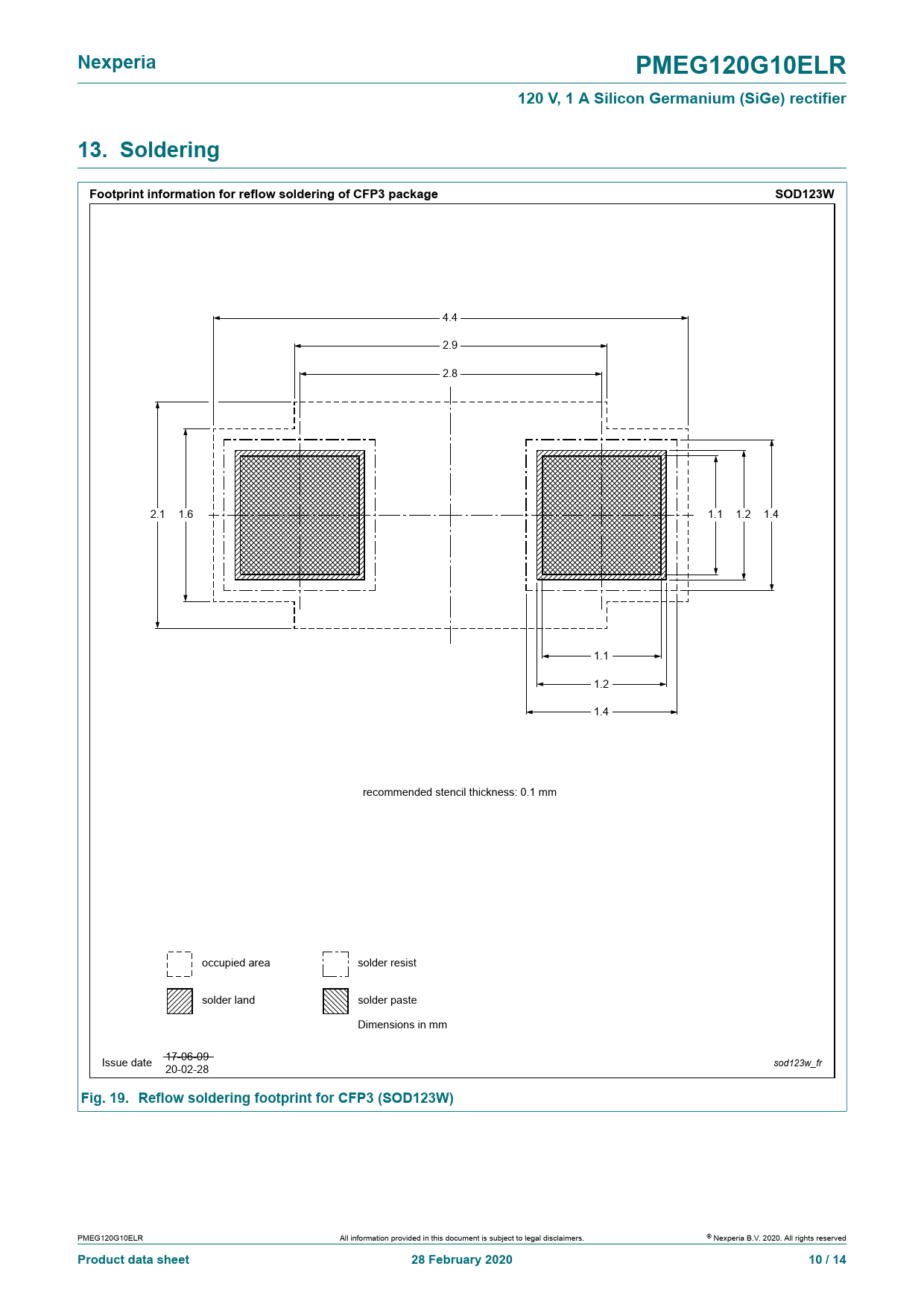

Nexperia PMEG120G10ELR 120 V, 1 A Silicon Germanium (SiGe) rectifier 13. Soldering Footprint information for reflow soldering of CFP3 package SOD123W
4.4 2.9 2.8 2.1 1.6 1.1 1.2 1.4 1.1 1.2 1.4 recommended stencil thickness: 0.1 mm occupied area solder resist solder land solder paste Dimensions in mm Issue date 17-06-09 sod123w_fr 20-02-28
Fig. 19. Reflow soldering footprint for CFP3 (SOD123W)
PMEG120G10ELR All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2020. Al rights reserved
Product data sheet 28 February 2020 10 / 14
