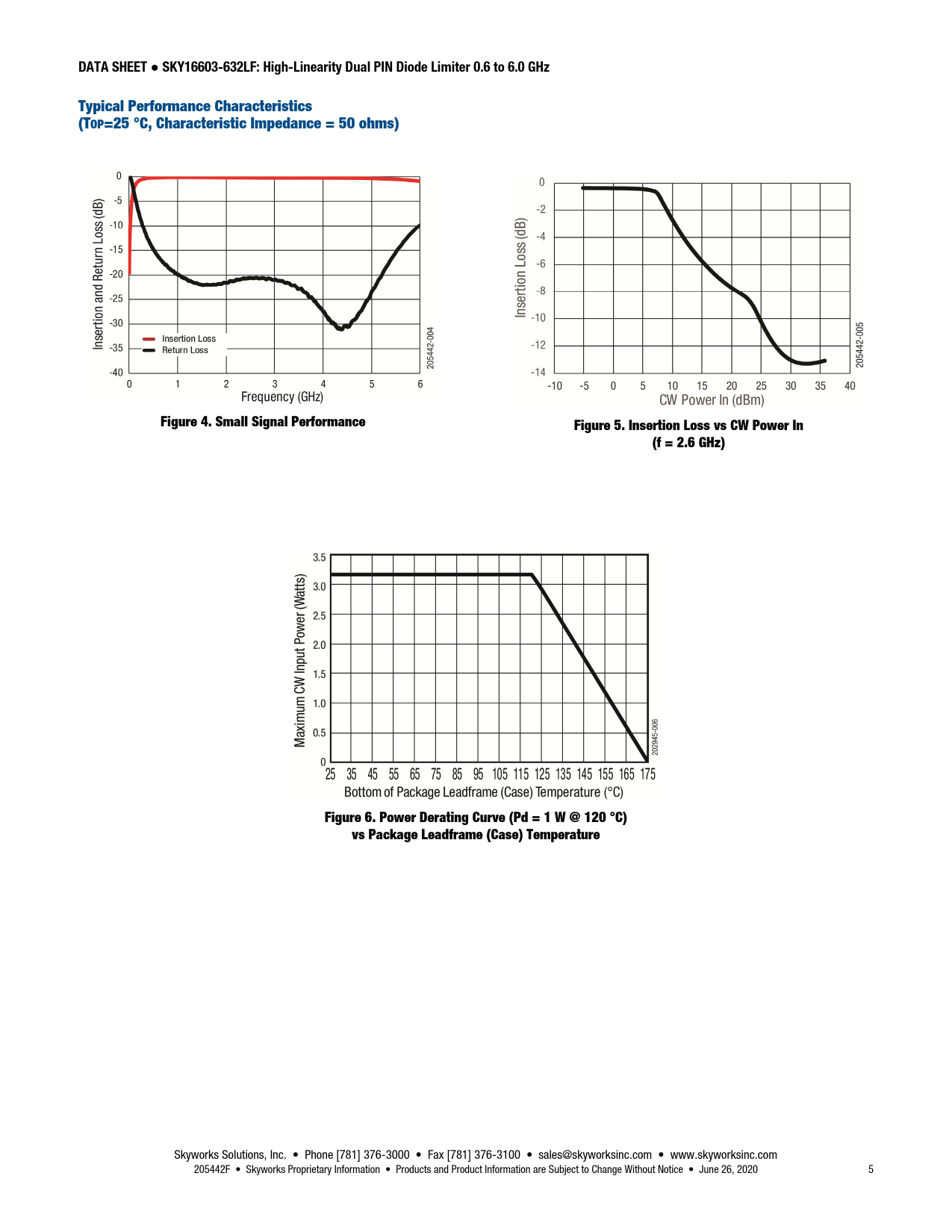

DATA SHEET ● SKY16603-632LF: High-Linearity Dual PIN Diode Limiter 0.6 to 6.0 GHz Typical Performance Characteristics (TOP=25 °C, Characteristic Impedance = 50 ohms) Figure 4. Small Signal Performance Figure 5. Insertion Loss vs CW Power In (f = 2.6 GHz) Figure 6. Power Derating Curve (Pd = 1 W @ 120 °C) vs Package Leadframe (Case) Temperature
