Datasheet T2035H-8I (STMicroelectronics) - 8
| Fabricante | STMicroelectronics |
| Descripción | 20 A - 800 V - 150°C H-series Triac in TO-220AB insulated |
| Páginas / Página | 11 / 8 — T2035H-8I. TO-220AB package information. Table 5. TO-220AB package … |
| Formato / tamaño de archivo | PDF / 272 Kb |
| Idioma del documento | Inglés |
T2035H-8I. TO-220AB package information. Table 5. TO-220AB package mechanical data. Dimensions. Ref. Millimeters. Inches(1). Min. Typ
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 8

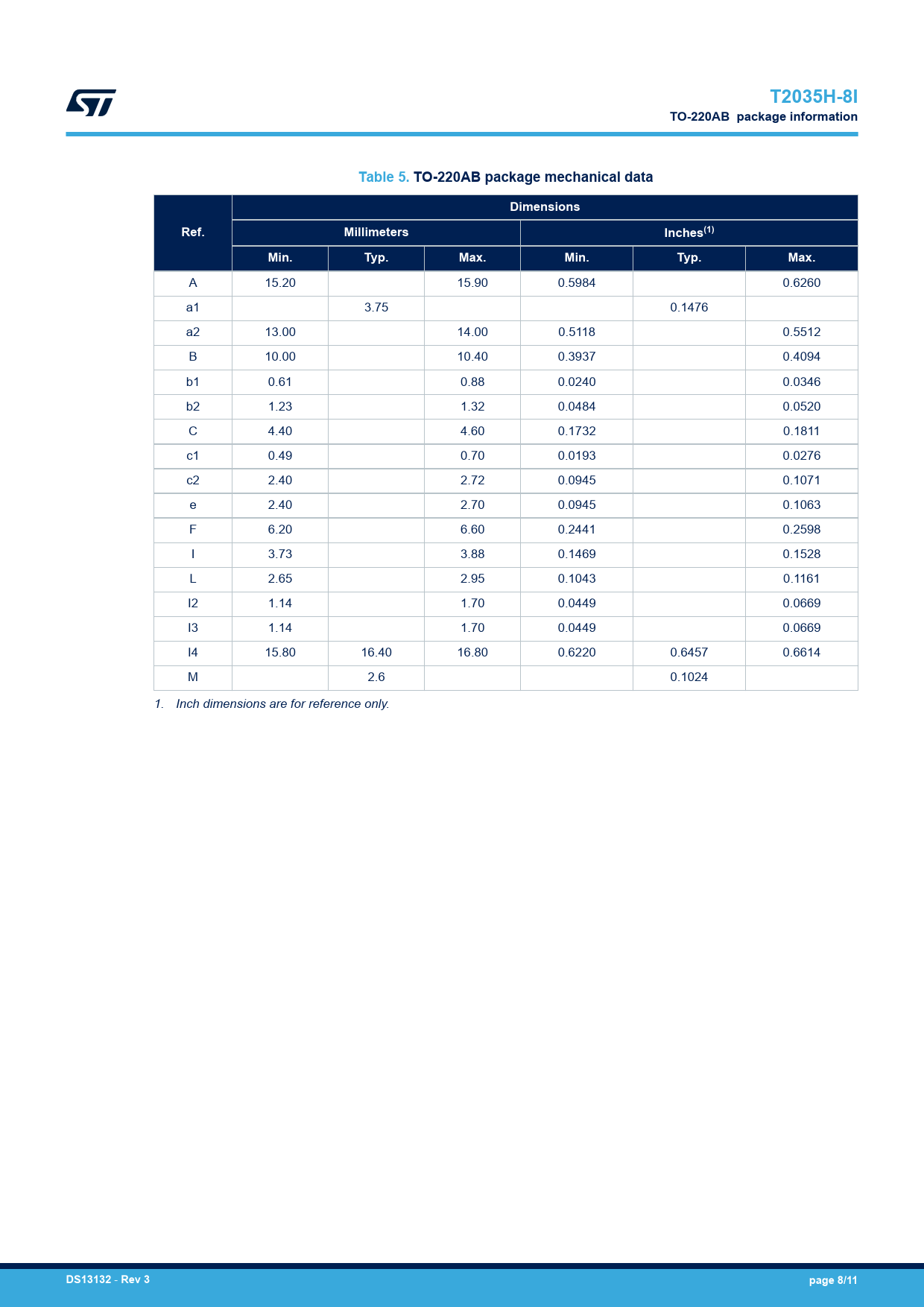

T2035H-8I TO-220AB package information Table 5. TO-220AB package mechanical data Dimensions Ref. Millimeters Inches(1) Min. Typ. Max. Min. Typ. Max.
A 15.20 15.90 0.5984 0.6260 a1 3.75 0.1476 a2 13.00 14.00 0.5118 0.5512 B 10.00 10.40 0.3937 0.4094 b1 0.61 0.88 0.0240 0.0346 b2 1.23 1.32 0.0484 0.0520 C 4.40 4.60 0.1732 0.1811 c1 0.49 0.70 0.0193 0.0276 c2 2.40 2.72 0.0945 0.1071 e 2.40 2.70 0.0945 0.1063 F 6.20 6.60 0.2441 0.2598 I 3.73 3.88 0.1469 0.1528 L 2.65 2.95 0.1043 0.1161 I2 1.14 1.70 0.0449 0.0669 I3 1.14 1.70 0.0449 0.0669 I4 15.80 16.40 16.80 0.6220 0.6457 0.6614 M 2.6 0.1024 1. Inch dimensions are for reference only.
DS13132
-
Rev 3 page 8/11
