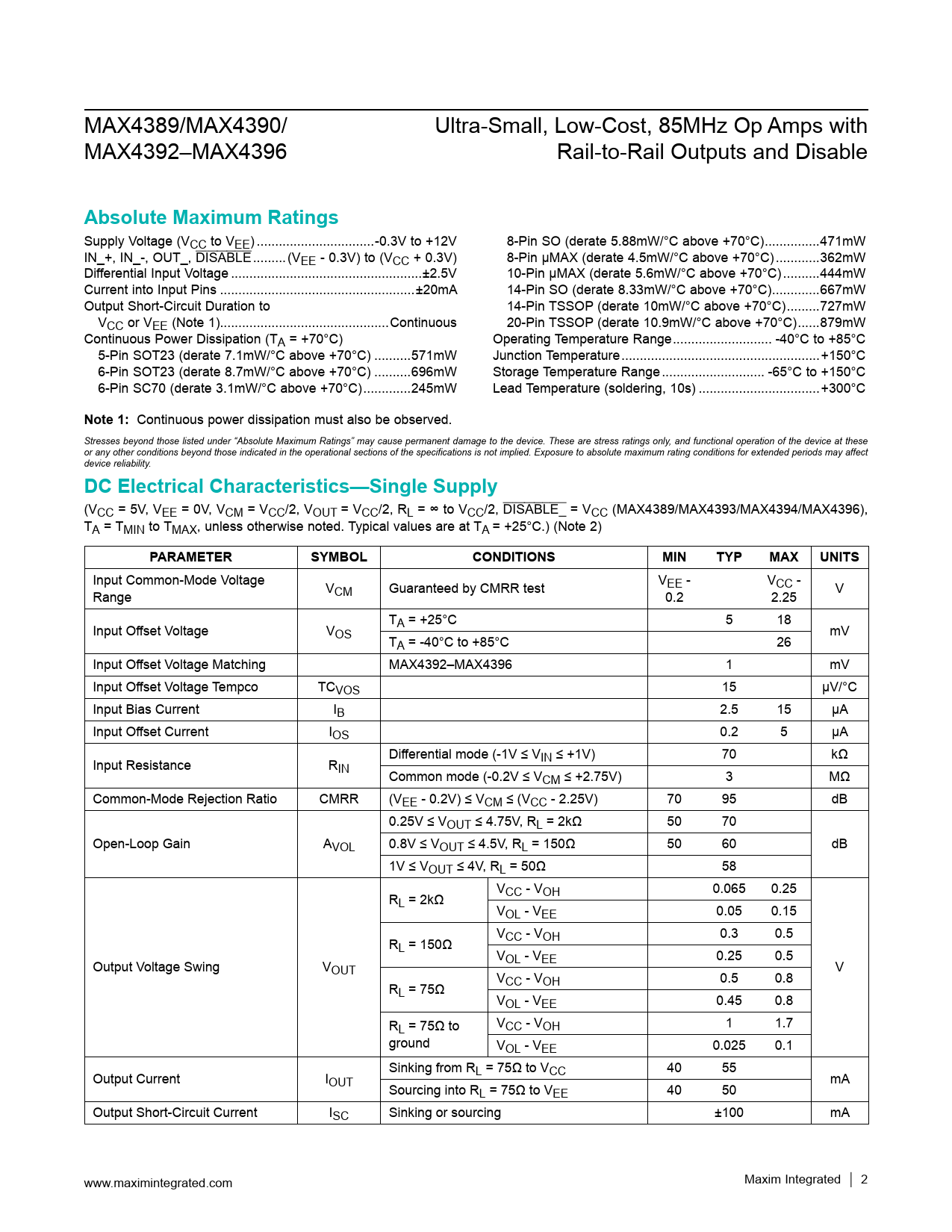

MAX4389/MAX4390/ Ultra-Small, Low-Cost, 85MHz Op Amps with MAX4392–MAX4396 Rail-to-Rail Outputs and Disable
Absolute Maximum Ratings
Supply Voltage (VCC to VEE) ..-0.3V to +12V 8-Pin SO (derate 5.88mW/°C above +70°C) ...471mW IN_+, IN_-, OUT_, DISABLE ...(VEE - 0.3V) to (VCC + 0.3V) 8-Pin μMAX (derate 4.5mW/°C above +70°C) ..362mW Differential Input Voltage ..±2.5V 10-Pin μMAX (derate 5.6mW/°C above +70°C) ..444mW Current into Input Pins ...±20mA 14-Pin SO (derate 8.33mW/°C above +70°C) ...667mW Output Short-Circuit Duration to 14-Pin TSSOP (derate 10mW/°C above +70°C) ...727mW VCC or VEE (Note 1)..Continuous 20-Pin TSSOP (derate 10.9mW/°C above +70°C) ..879mW Continuous Power Dissipation (TA = +70°C) Operating Temperature Range ... -40°C to +85°C 5-Pin SOT23 (derate 7.1mW/°C above +70°C) ..571mW Junction Temperature ..+150°C 6-Pin SOT23 (derate 8.7mW/°C above +70°C) ..696mW Storage Temperature Range .. -65°C to +150°C 6-Pin SC70 (derate 3.1mW/°C above +70°C) ...245mW Lead Temperature (soldering, 10s) ...+300°C
Note 1:
Continuous power dissipation must also be observed. Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
DC Electrical Characteristics—Single Supply
(VCC = 5V, VEE = 0V, VCM = VCC/2, VOUT = VCC/2, RL = ∞ to VCC/2, DISABLE_ = VCC (MAX4389/MAX4393/MAX4394/MAX4396), TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.) (Note 2)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Input Common-Mode Voltage VCC - Range VCM Guaranteed by CMRR test VEE - 0.2 2.25 V T Input Offset Voltage V A = +25°C 5 18 OS mV TA = -40°C to +85°C 26 Input Offset Voltage Matching MAX4392–MAX4396 1 mV Input Offset Voltage Tempco TCVOS 15 µV/°C Input Bias Current IB 2.5 15 µA Input Offset Current IOS 0.2 5 µA Differential mode (-1V ≤ V Input Resistance R IN ≤ +1V) 70 kΩ IN Common mode (-0.2V ≤ VCM ≤ +2.75V) 3 MΩ Common-Mode Rejection Ratio CMRR (VEE - 0.2V) ≤ VCM ≤ (VCC - 2.25V) 70 95 dB 0.25V ≤ VOUT ≤ 4.75V, RL = 2kΩ 50 70 Open-Loop Gain AVOL 0.8V ≤ VOUT ≤ 4.5V, RL = 150Ω 50 60 dB 1V ≤ VOUT ≤ 4V, RL = 50Ω 58 V R CC - VOH 0.065 0.25 L = 2kΩ VOL - VEE 0.05 0.15 V R CC - VOH 0.3 0.5 L = 150Ω V Output Voltage Swing V OL - VEE 0.25 0.5 OUT V V R CC - VOH 0.5 0.8 L = 75Ω VOL - VEE 0.45 0.8 RL = 75Ω to VCC - VOH 1 1.7 ground VOL - VEE 0.025 0.1 Sinking from R Output Current I L = 75Ω to VCC 40 55 OUT mA Sourcing into RL = 75Ω to VEE 40 50 Output Short-Circuit Current ISC Sinking or sourcing ±100 mA www.maximintegrated.com Maxim Integrated │

2
