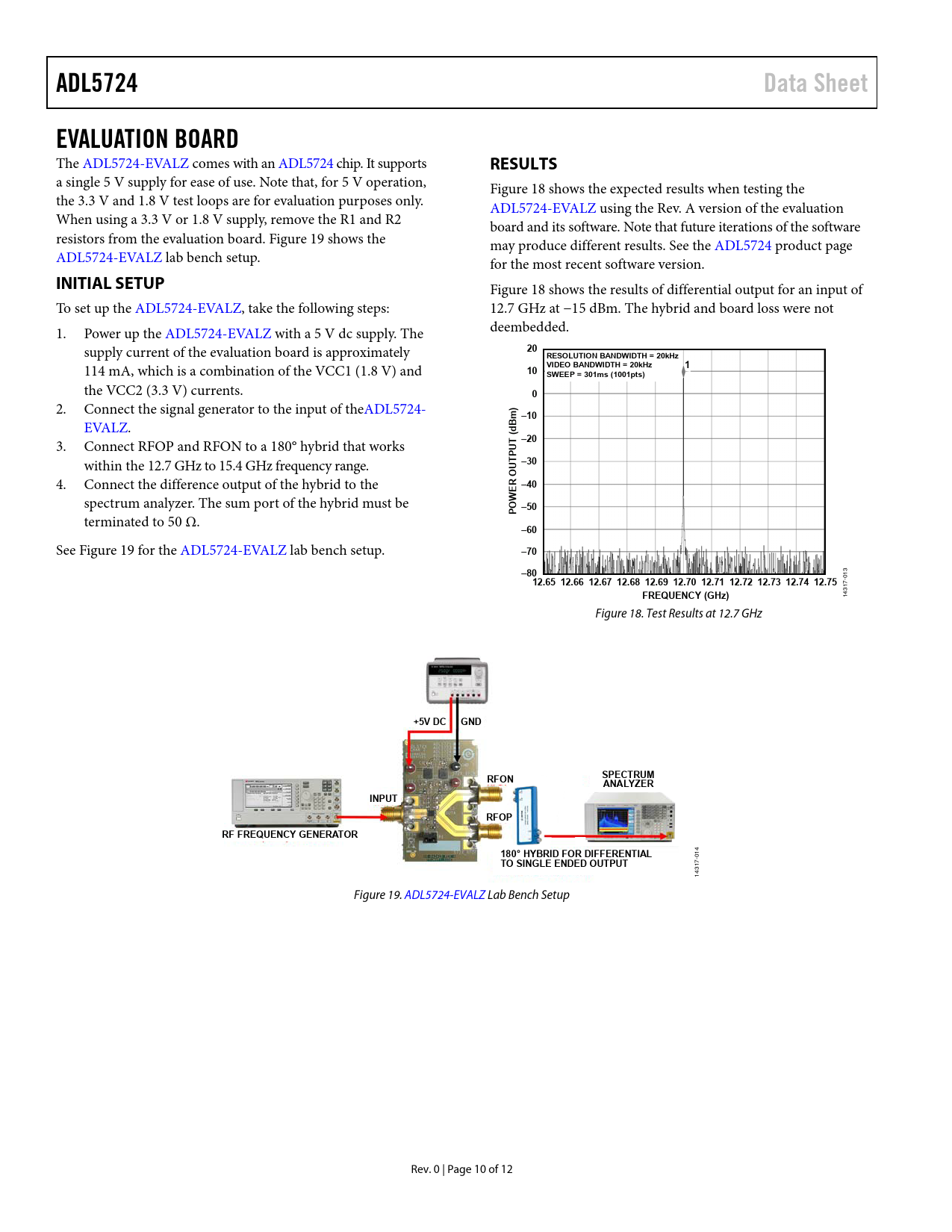

ADL5724 Data Sheet EVALUATION BOARD
The ADL5724-EVALZ comes with an ADL5724 chip. It supports
RESULTS
a single 5 V supply for ease of use. Note that, for 5 V operation, Figure 18 shows the expected results when testing the the 3.3 V and 1.8 V test loops are for evaluation purposes only. ADL5724-EVALZ using the Rev. A version of the evaluation When using a 3.3 V or 1.8 V supply, remove the R1 and R2 board and its software. Note that future iterations of the software resistors from the evaluation board. Figure 19 shows the may produce different results. See the ADL5724 product page ADL5724-EVALZ lab bench setup. for the most recent software version.
INITIAL SETUP
Figure 18 shows the results of differential output for an input of To set up the ADL5724-EVALZ, take the following steps: 12.7 GHz at −15 dBm. The hybrid and board loss were not 1. Power up the ADL5724-EVALZ with a 5 V dc supply. The deembedded. supply current of the evaluation board is approximately
20 RESOLUTION BANDWIDTH = 20kHz VIDEO BANDWIDTH = 20kHz 1
114 mA, which is a combination of the VCC1 (1.8 V) and
10 SWEEP = 301ms (1001pts)
the VCC2 (3.3 V) currents.
0
2. Connect the signal generator to the input of theADL5724-
) m –10
EVALZ.
B d ( –20
3. Connect RFOP and RFON to a 180° hybrid that works
UT P T
within the 12.7 GHz to 15.4 GHz frequency range.
U –30
4. Connect the difference output of the hybrid to the
R O E –40
spectrum analyzer. The sum port of the hybrid must be
W O P –50
terminated to 50 Ω.
–60
See Figure 19 for the ADL5724-EVALZ lab bench setup.
–70 –80
-013
12.65 12.66 12.67 12.68 12.69 12.70 12.71 12.72 12.73 12.74 12.75
317
FREQUENCY (GHz)
14 Figure 18. Test Results at 12.7 GHz
+5V DC GND RFON SPECTRUM ANALYZER INPUT RFOP RF FREQUENCY GENERATOR 180° HYBRID FOR DIFFERENTIAL
014 7-
TO SINGLE ENDED OUTPUT
1431 Figure 19. ADL5724-EVALZ Lab Bench Setup Rev. 0 | Page 10 of 12 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS AC SPECIFICATIONS DC SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS INFORMATION LAYOUT DIFFERENTIAL vs. SINGLE-ENDED OUTPUT EVALUATION BOARD INITIAL SETUP RESULTS BASIC CONNECTIONS FOR OPERATION OUTLINE DIMENSIONS ORDERING GUIDE
