HMC263LP4E. GaAs MMIC LOW NOISE. AMPLIFIER, 24 - 36 GHz. Evaluation PCB. List of Materials for Evaluation PCB 123965 [1]

HMC263LP4E GaAs MMIC LOW NOISE AMPLIFIER, 24 - 36 GHz Evaluation PCB List of Materials for Evaluation PCB 123965 [1]

Línea de modelo para esta hoja de datos

Versión de texto del documento

HMC263LP4E
v02.1017
GaAs MMIC LOW NOISE AMPLIFIER, 24 - 36 GHz Evaluation PCB
T m s e - is o w N lo s - r ie lif p m A

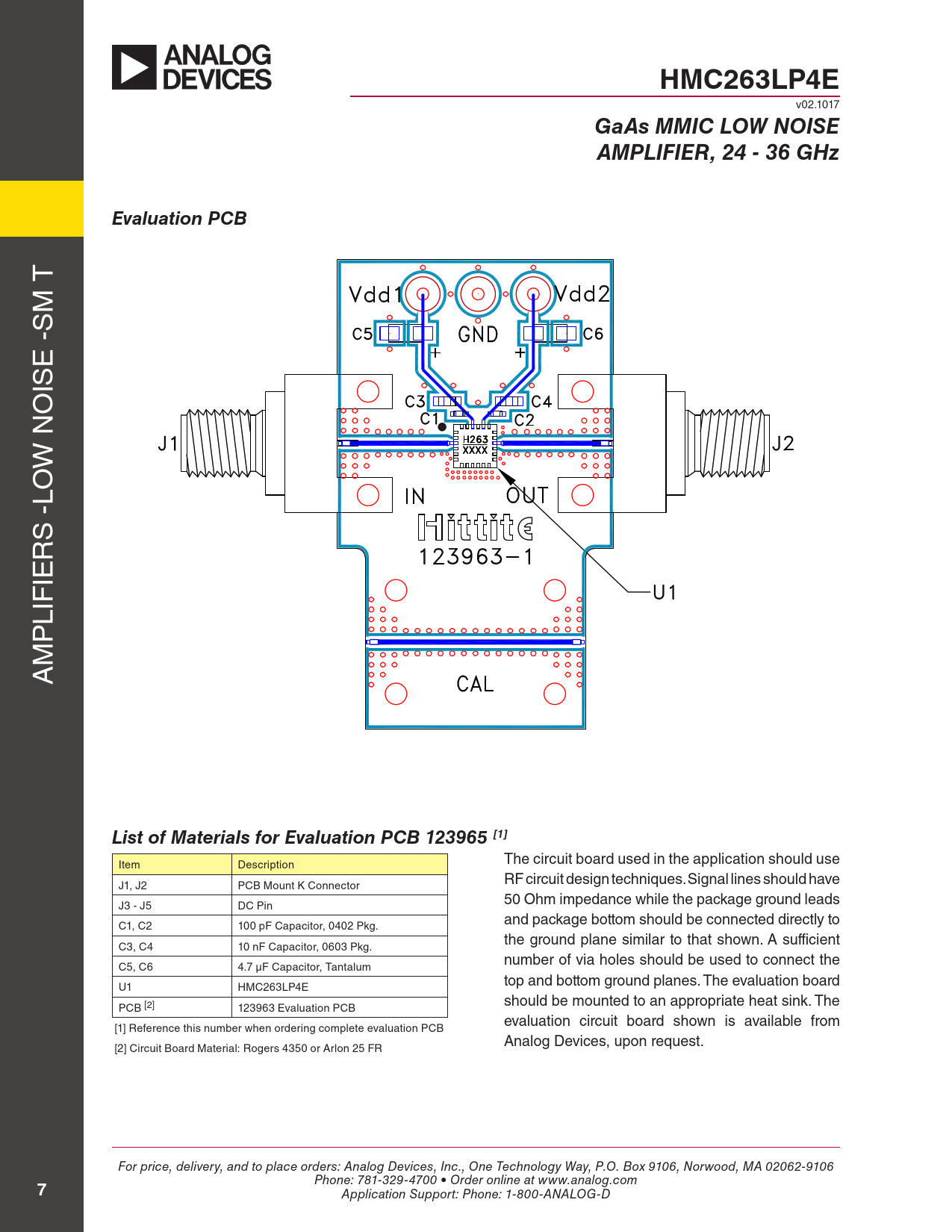

List of Materials for Evaluation PCB 123965 [1]
The circuit board used in the application should use item Description rf circuit design techniques. signal lines should have J1, J2 pCB mount K Connector 50 ohm impedance while the package ground leads J3 - J5 DC pin and package bottom should be connected directly to C1, C2 100 pf Capacitor, 0402 pkg. the ground plane similar to that shown. A sufficient C3, C4 10 nf Capacitor, 0603 pkg. number of via holes should be used to connect the C5, C6 4.7 µf Capacitor, Tantalum top and bottom ground planes. The evaluation board U1 HmC263lp4e should be mounted to an appropriate heat sink. The pCB [2] 123963 evaluation pCB evaluation circuit board shown is available from [1] reference this number when ordering complete evaluation pCB Analog Devices, upon request. [2] Circuit Board material: rogers 4350 or Arlon 25 fr For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com
