Datasheet HMC7885 (Analog Devices)
| Fabricante | Analog Devices |
| Descripción | 2 GHz to 6 GHz, 45 dBm Power Amplifier |
| Páginas / Página | 11 / 1 — 2 GHz to 6 GHz, 45 dBm Power Amplifier. Data Sheet. HMC7885. FEATURES. … |
| Formato / tamaño de archivo | PDF / 305 Kb |
| Idioma del documento | Inglés |

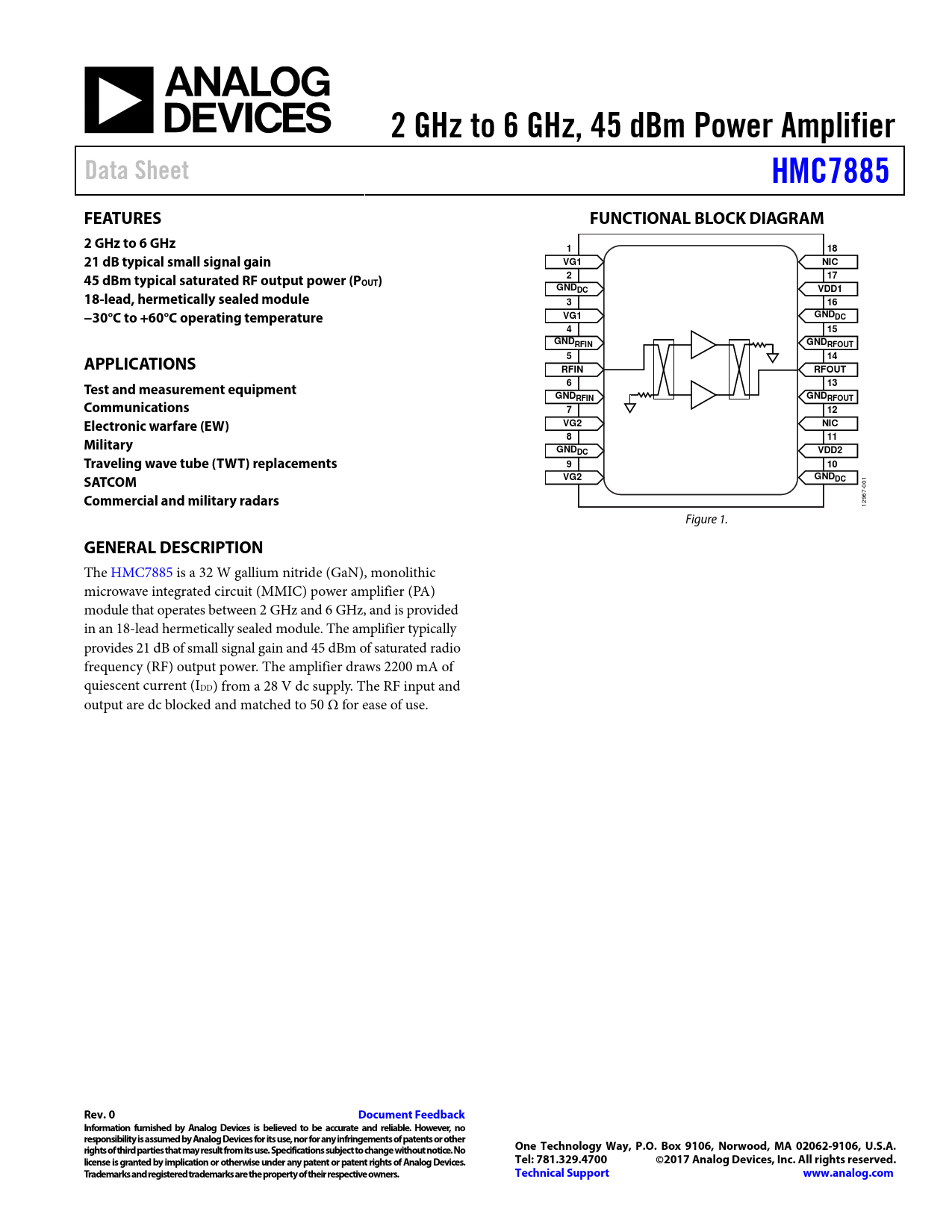

2 GHz to 6 GHz, 45 dBm Power Amplifier. Data Sheet. HMC7885. FEATURES. FUNCTIONAL BLOCK DIAGRAM. 2 GHz to 6 GHz
Línea de modelo para esta hoja de datos
Versión de texto del documento
2 GHz to 6 GHz, 45 dBm Power Amplifier Data Sheet HMC7885 FEATURES FUNCTIONAL BLOCK DIAGRAM 2 GHz to 6 GHz 1 18 21 dB typical small signal gain VG1 NIC 45 dBm typical saturated RF output power (P 2 17 OUT) GNDDC VDD1 18-lead, hermetically sealed module 3 16 −30°C to +60°C operating temperature VG1 GNDDC 4 15 GND GND RFIN RFOUT APPLICATIONS 5 14 RFIN RFOUT Test and measurement equipment 6 13 GND GND RFIN RFOUT Communications 7 12 Electronic warfare (EW) VG2 NIC Military 8 11 GNDDC VDD2 Traveling wave tube (TWT) replacements 9 10 SATCOM VG2 GNDDC
001
Commercial and military radars
12967-
Figure 1.
GENERAL DESCRIPTION
The HMC7885 is a 32 W gallium nitride (GaN), monolithic microwave integrated circuit (MMIC) power amplifier (PA) module that operates between 2 GHz and 6 GHz, and is provided in an 18-lead hermetical y sealed module. The amplifier typical y provides 21 dB of smal signal gain and 45 dBm of saturated radio frequency (RF) output power. The amplifier draws 2200 mA of quiescent current (IDD) from a 28 V dc supply. The RF input and output are dc blocked and matched to 50 Ω for ease of use.
Rev. 0 Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2017 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION EVALUATION BOARD ASSEMBLY BILL OF MATERIALS OUTLINE DIMENSIONS ORDERING GUIDE
