Data Sheet. ADG5208F/ADG5209F. SPECIFICATIONS ±15 V DUAL SUPPLY. Table 1. −40°C to. Parameter. +25°C +85°C. +125°C. Unit

Data Sheet ADG5208F/ADG5209F SPECIFICATIONS ±15 V DUAL SUPPLY Table 1 −40°C to Parameter +25°C +85°C +125°C Unit

Línea de modelo para esta hoja de datos

Versión de texto del documento

link to page 20 link to page 18 link to page 20 link to page 20 link to page 20 link to page 20 link to page 20 link to page 20 link to page 20 link to page 20

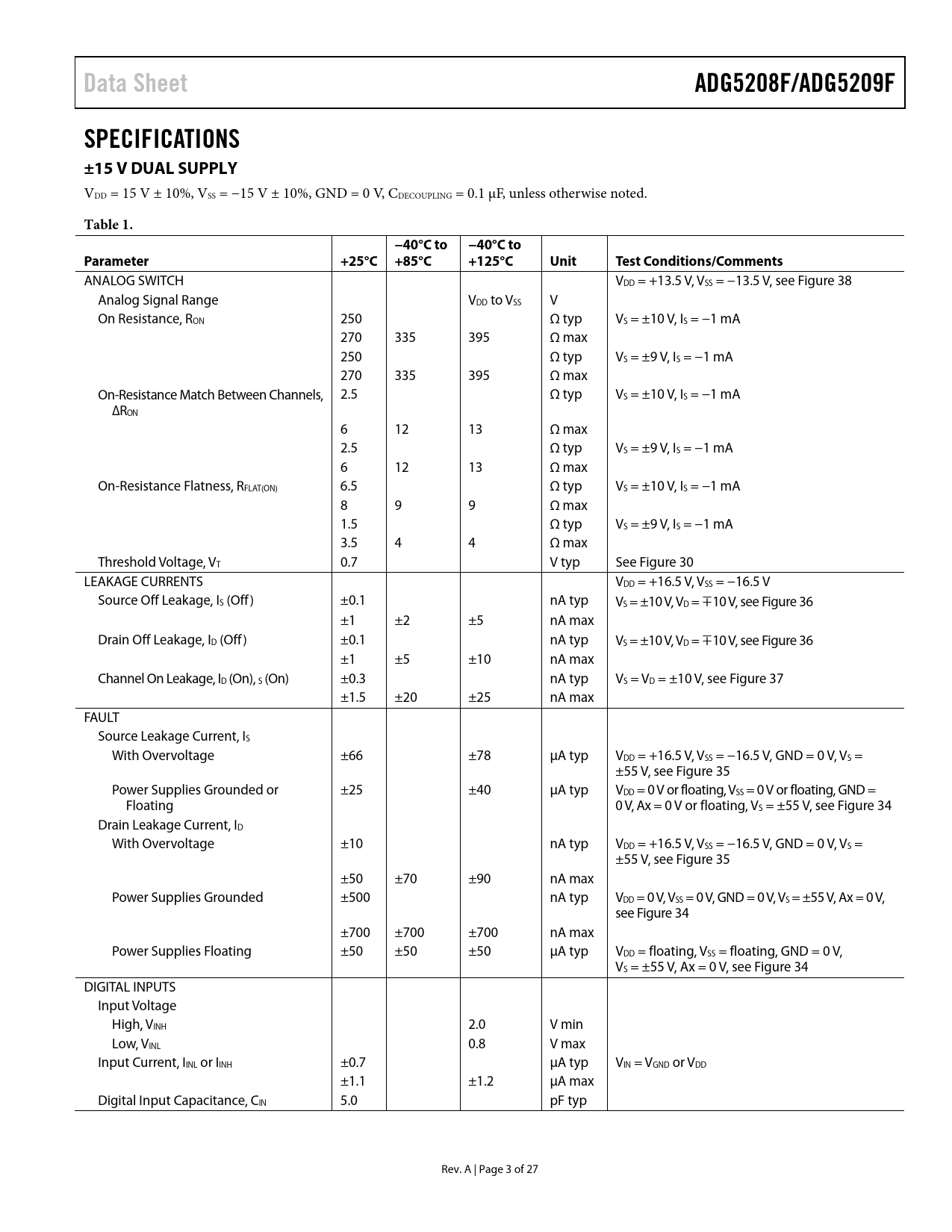

Data Sheet ADG5208F/ADG5209F SPECIFICATIONS ±15 V DUAL SUPPLY
VDD = 15 V ± 10%, VSS = −15 V ± 10%, GND = 0 V, CDECOUPLING = 0.1 µF, unless otherwise noted.
Table 1. −40°C to −40°C to Parameter +25°C +85°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH VDD = +13.5 V, VSS = −13.5 V, see Figure 38 Analog Signal Range VDD to VSS V On Resistance, RON 250 Ω typ VS = ±10 V, IS = −1 mA 270 335 395 Ω max 250 Ω typ VS = ±9 V, IS = −1 mA 270 335 395 Ω max On-Resistance Match Between Channels, 2.5 Ω typ VS = ±10 V, IS = −1 mA ∆RON 6 12 13 Ω max 2.5 Ω typ VS = ±9 V, IS = −1 mA 6 12 13 Ω max On-Resistance Flatness, RFLAT(ON) 6.5 Ω typ VS = ±10 V, IS = −1 mA 8 9 9 Ω max 1.5 Ω typ VS = ±9 V, IS = −1 mA 3.5 4 4 Ω max Threshold Voltage, VT 0.7 V typ See Figure 30 LEAKAGE CURRENTS VDD = +16.5 V, VSS = −16.5 V Source Off Leakage, IS (Off) ±0.1 nA typ VS = ±10 V, VD = ∓10 V, see Figure 36 ±1 ±2 ±5 nA max Drain Off Leakage, ID (Off) ±0.1 nA typ VS = ±10 V, VD = ∓10 V, see Figure 36 ±1 ±5 ±10 nA max Channel On Leakage, ID (On), S (On) ±0.3 nA typ VS = VD = ±10 V, see Figure 37 ±1.5 ±20 ±25 nA max FAULT Source Leakage Current, IS With Overvoltage ±66 ±78 µA typ VDD = +16.5 V, VSS = −16.5 V, GND = 0 V, VS = ±55 V, see Figure 35 Power Supplies Grounded or ±25 ±40 µA typ VDD = 0 V or floating, VSS = 0 V or floating, GND = Floating 0 V, Ax = 0 V or floating, VS = ±55 V, see Figure 34 Drain Leakage Current, ID With Overvoltage ±10 nA typ VDD = +16.5 V, VSS = −16.5 V, GND = 0 V, VS = ±55 V, see Figure 35 ±50 ±70 ±90 nA max Power Supplies Grounded ±500 nA typ VDD = 0 V, VSS = 0 V, GND = 0 V, VS = ±55 V, Ax = 0 V, see Figure 34 ±700 ±700 ±700 nA max Power Supplies Floating ±50 ±50 ±50 µA typ VDD = floating, VSS = floating, GND = 0 V, VS = ±55 V, Ax = 0 V, see Figure 34 DIGITAL INPUTS Input Voltage High, VINH 2.0 V min Low, VINL 0.8 V max Input Current, IINL or IINH ±0.7 µA typ VIN = VGND or VDD ±1.1 ±1.2 µA max Digital Input Capacitance, CIN 5.0 pF typ Rev. A | Page 3 of 27 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, Sx, D, OR Dx ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY THEORY OF OPERATION SWITCH ARCHITECTURE Overvoltage Reaction ESD Performance Trench Isolation FAULT PROTECTION Power-On Protection Power-Off Protection Digital Input Protection APPLICATIONS INFORMATION POWER SUPPLY RAILS POWER SUPPLY SEQUENCING PROTECTION SIGNAL RANGE POWER SUPPLY RECOMMENDATIONS HIGH VOLTAGE SURGE SUPPRESSION LARGE VOLTAGE, HIGH FREQUENCY SIGNALS OUTLINE DIMENSIONS ORDERING GUIDE
