Datasheet ADG1414 (Analog Devices) - 5

FabricanteAnalog Devices
Descripción9.5 Ω RON ±15 V/+12 V/±5 V iCMOS Serially-Controlled Octal SPST Switches
Páginas / Página19 / 5 — Data Sheet. ADG1414. −40°C to −40°C to. Parameter. +25°C. +85°C. +125°C. …
RevisiónB
Formato / tamaño de archivoPDF / 536 Kb
Idioma del documentoInglés

Data Sheet. ADG1414. −40°C to −40°C to. Parameter. +25°C. +85°C. +125°C. Unit. Test Conditions/Comments

Data Sheet ADG1414 −40°C to −40°C to Parameter +25°C +85°C +125°C Unit Test Conditions/Comments

Línea de modelo para esta hoja de datos

Versión de texto del documento

link to page 16 link to page 16 link to page 16 link to page 15 link to page 15 link to page 15 link to page 15
Data Sheet ADG1414 −40°C to −40°C to Parameter +25°C +85°C +125°C Unit Test Conditions/Comments

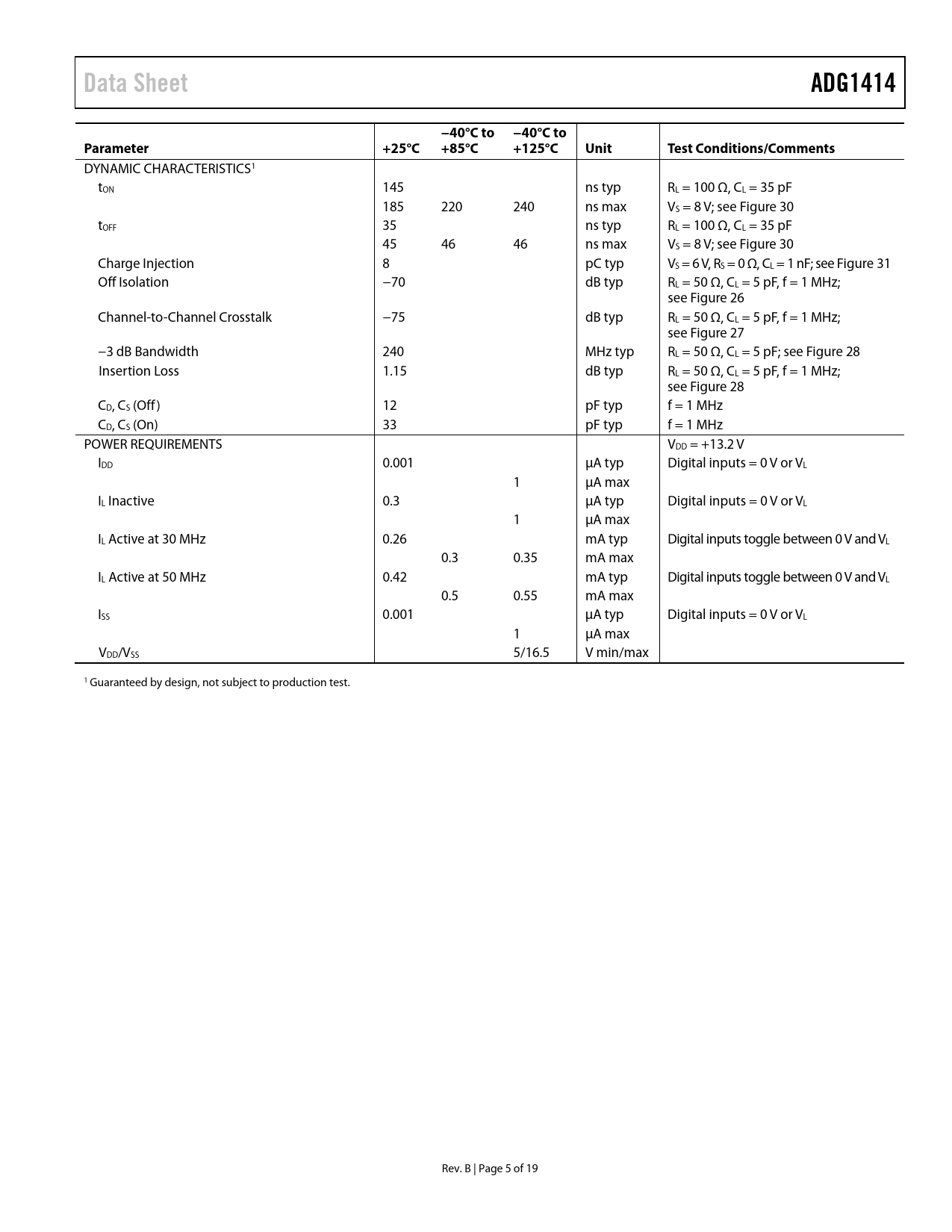

DYNAMIC CHARACTERISTICS1 tON 145 ns typ RL = 100 Ω, CL = 35 pF 185 220 240 ns max VS = 8 V; see Figure 30 tOFF 35 ns typ RL = 100 Ω, CL = 35 pF 45 46 46 ns max VS = 8 V; see Figure 30 Charge Injection 8 pC typ VS = 6 V, RS = 0 Ω, CL = 1 nF; see Figure 31 Off Isolation −70 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 26 Channel-to-Channel Crosstalk −75 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 27 −3 dB Bandwidth 240 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 28 Insertion Loss 1.15 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 28 CD, CS (Off) 12 pF typ f = 1 MHz CD, CS (On) 33 pF typ f = 1 MHz POWER REQUIREMENTS VDD = +13.2 V IDD 0.001 µA typ Digital inputs = 0 V or VL 1 µA max IL Inactive 0.3 µA typ Digital inputs = 0 V or VL 1 µA max IL Active at 30 MHz 0.26 mA typ Digital inputs toggle between 0 V and VL 0.3 0.35 mA max IL Active at 50 MHz 0.42 mA typ Digital inputs toggle between 0 V and VL 0.5 0.55 mA max ISS 0.001 µA typ Digital inputs = 0 V or VL 1 µA max VDD/VSS 5/16.5 V min/max 1 Guaranteed by design, not subject to production test. Rev. B | Page 5 of 19 Document Outline Features Applications Functional Block Diagram Product Highlights Revision History Specifications ±15 V Dual Supply 12 V Single Supply ±5 V Dual Supply Continuous Current per Channel Timing Characteristics Timing Diagrams Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Test Circuits Terminology Theory of Operation Serial Interface Input Shift Register Power-On Reset Daisy Chaining Outline Dimensions Ordering Guide
