Datasheet SW201 (Analog Devices) - 2

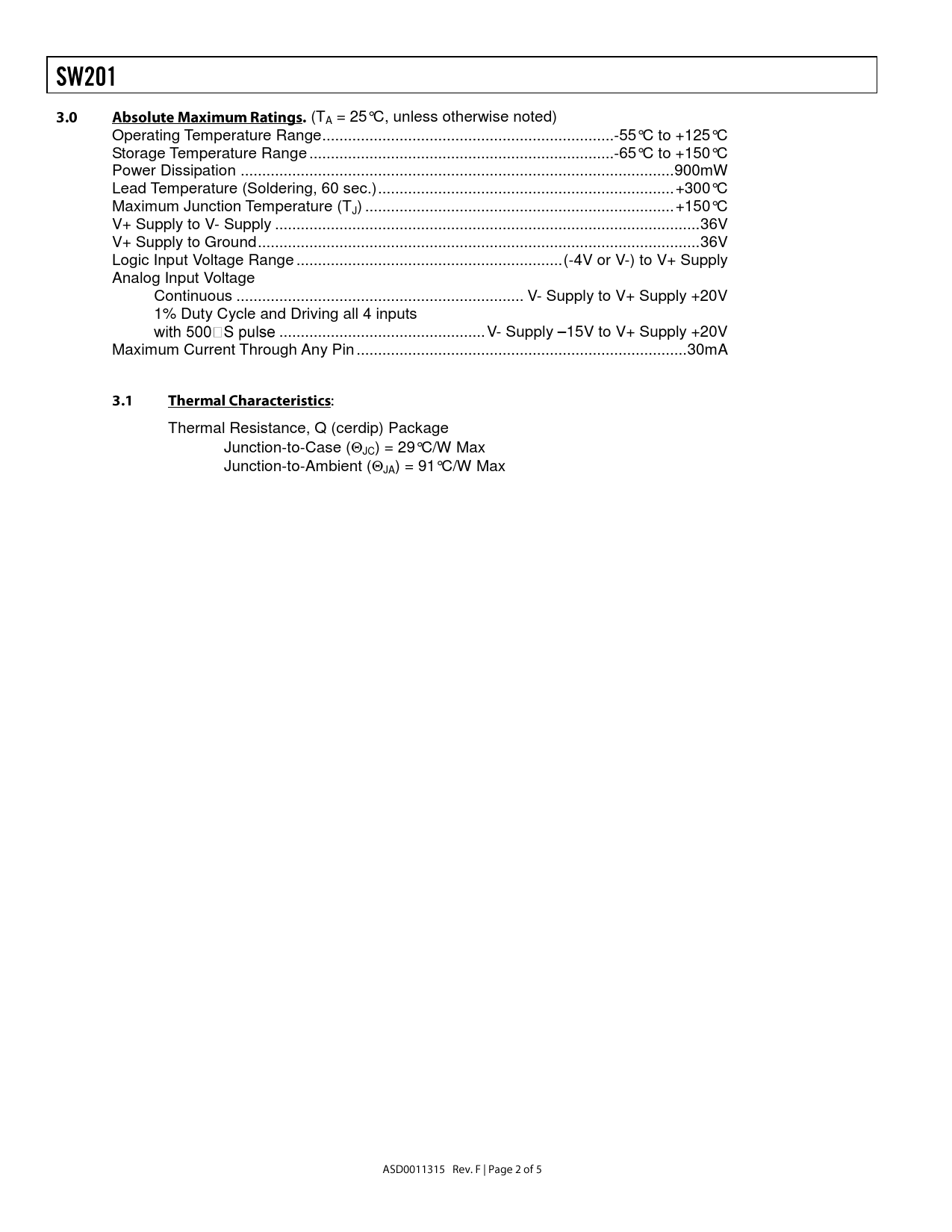

(TA = 25°C, unless otherwise noted) Operating Temperature Range ..-55°C to +125°C Storage Temperature Range ...-65°C to +150°C Power Dissipation ... 900mW Lead Temperature (Soldering, 60 sec.) ... +300°C Maximum Junction Temperature (TJ) .. +150°C V+ Supply to V- Supply ... 36V V+ Supply to Ground ... 36V Logic Input Voltage Range .. (-4V or V-) to V+ Supply Analog Input Voltage Continuous ... V- Supply to V+ Supply +20V 1% Duty Cycle and Driving all 4 inputs .. V- Supply –15V to V+ Supply +20V Maximum Current Through Any Pin ... 30mA

Thermal Resistance, Q (cerdip) Package Junction-to-Case (JC) = 29°C/W Max Junction-to-Ambient (JA) = 91°C/W Max
