Datasheet VIA2000SD (Vishay)
| Fabricante | Vishay |
| Descripción | High Reliability Reinforced Isolated Amplifier in SOP-8 (300 mil) Package |
| Páginas / Página | 12 / 1 — VIA2000SD. High Reliability Reinforced Isolated Amplifier. DESCRIPTION. … |
| Formato / tamaño de archivo | PDF / 197 Kb |
| Idioma del documento | Inglés |

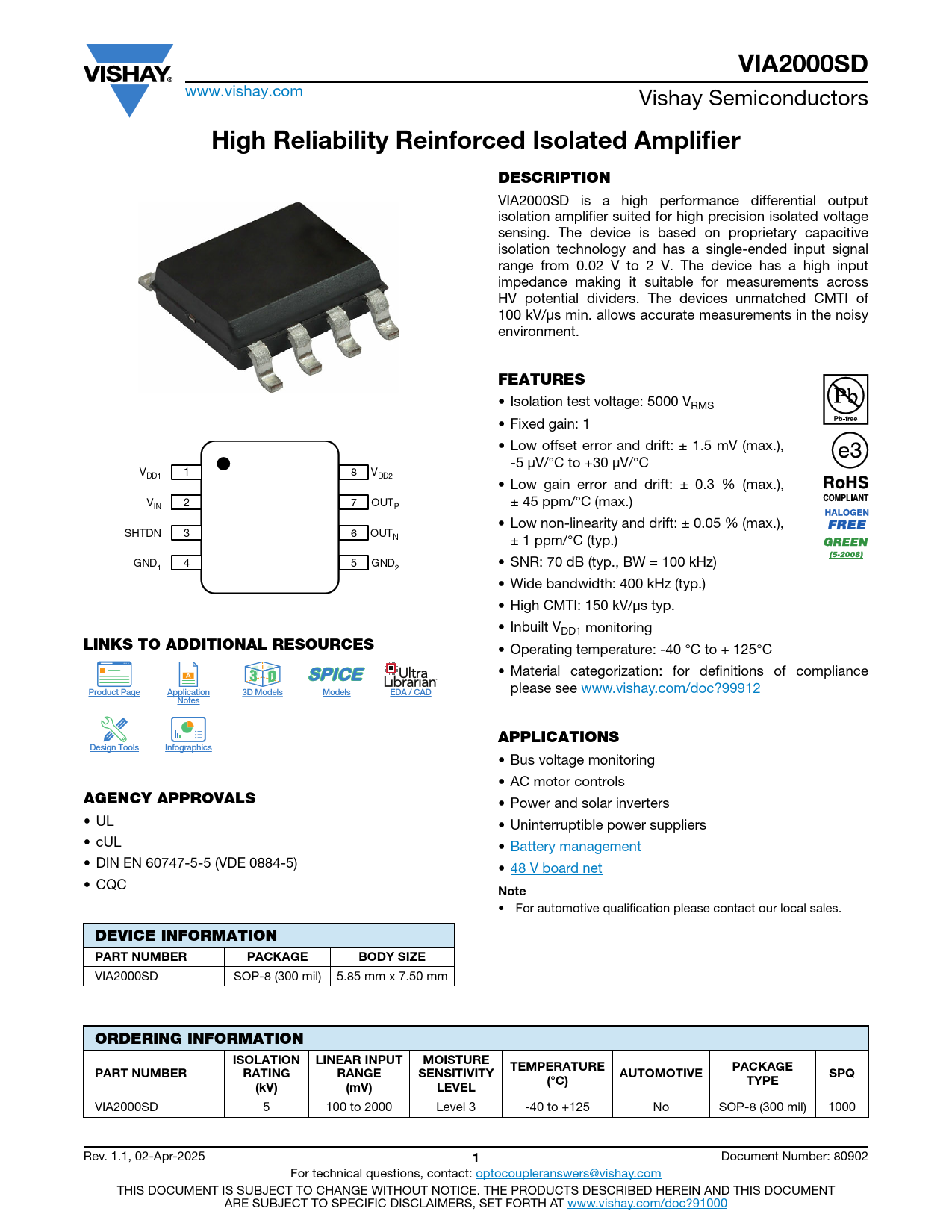

VIA2000SD. High Reliability Reinforced Isolated Amplifier. DESCRIPTION. FEATURES. LINKS TO ADDITIONAL RESOURCES. D 3. 3 D
Línea de modelo para esta hoja de datos
Versión de texto del documento
VIA2000SD
www.vishay.com Vishay Semiconductors
High Reliability Reinforced Isolated Amplifier DESCRIPTION
VIA2000SD is a high performance differential output isolation amplifier suited for high precision isolated voltage sensing. The device is based on proprietary capacitive isolation technology and has a single-ended input signal range from 0.02 V to 2 V. The device has a high input impedance making it suitable for measurements across HV potential dividers. The devices unmatched CMTI of 100 kV/μs min. allows accurate measurements in the noisy environment.
FEATURES
• Isolation test voltage: 5000 VRMS • Fixed gain: 1 • Low offset error and drift: ± 1.5 mV (max.), -5 μV/°C to +30 μV/°C VDD1 1 8 VDD2 • Low gain error and drift: ± 0.3 % (max.), VIN 2 7 OUT ± 45 ppm/°C (max.) P • Low non-linearity and drift: ± 0.05 % (max.), SHTDN 3 6 OUTN ± 1 ppm/°C (typ.) GND1 4 5 GND • SNR: 70 dB (typ., BW = 100 kHz) 2 • Wide bandwidth: 400 kHz (typ.) • High CMTI: 150 kV/μs typ. • Inbuilt VDD1 monitoring
LINKS TO ADDITIONAL RESOURCES
• Operating temperature: -40 °C to + 125°C
D 3
• Material categorization: for definitions of compliance
3 D Product Page Application 3D Models Models
please see www.vishay.com/doc?99912
EDA / CAD Notes APPLICATIONS Design Tools Infographics
• Bus voltage monitoring • AC motor controls
AGENCY APPROVALS
• Power and solar inverters • UL • Uninterruptible power suppliers • cUL • Battery management • DIN EN 60747-5-5 (VDE 0884-5) • 48 V board net • CQC
Note
• For automotive qualification please contact our local sales.
DEVICE INFORMATION PART NUMBER PACKAGE BODY SIZE
VIA2000SD SOP-8 (300 mil) 5.85 mm x 7.50 mm
ORDERING INFORMATION ISOLATION LINEAR INPUT MOISTURE TEMPERATURE PACKAGE PART NUMBER RATING RANGE SENSITIVITY AUTOMOTIVE SPQ (°C) TYPE (kV) (mV) LEVEL
VIA2000SD 5 100 to 2000 Level 3 -40 to +125 No SOP-8 (300 mil) 1000 Rev. 1.1, 02-Apr-2025
1
Document Number: 80902 For technical questions, contact: optocoupleranswers@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
