Datasheet SD103AW, SD103BW, SD103CW (Diodes)
| Fabricante | Diodes |
| Descripción | Schottky Barrier Diode in SOD123 package |
| Páginas / Página | 5 / 1 — SD103AW - SD103CW. SCHOTTKY BARRIER DIODE. Product Summary. Features and … |
| Formato / tamaño de archivo | PDF / 354 Kb |
| Idioma del documento | Inglés |
SD103AW - SD103CW. SCHOTTKY BARRIER DIODE. Product Summary. Features and Benefits. Name. VRRM (V). IO (A). VF Max. (V). IR Max (µA)
Línea de modelo para esta hoja de datos
Versión de texto del documento

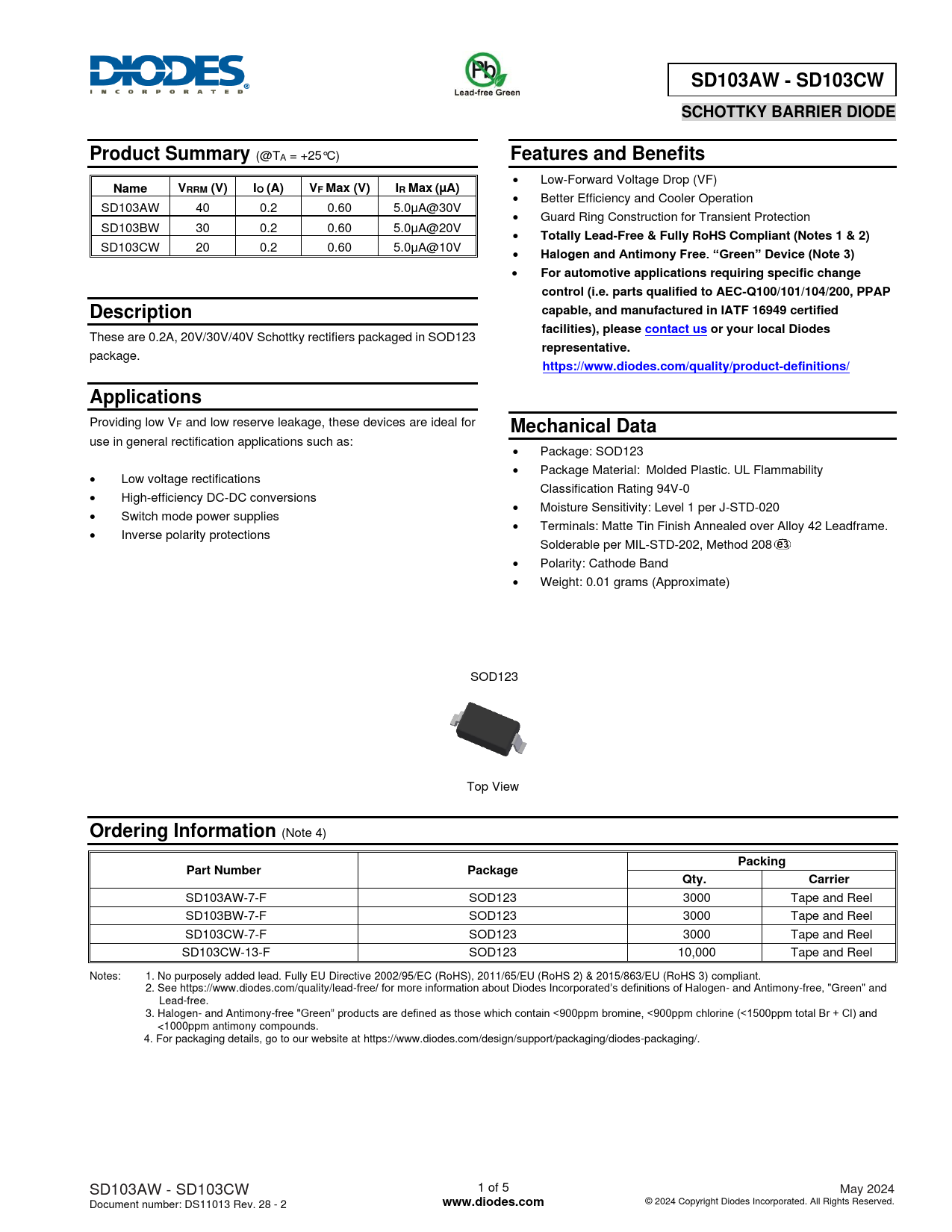

SD103AW - SD103CW SCHOTTKY BARRIER DIODE Product Summary
(@T A = +25° C)
Features and Benefits
• Low-Forward Voltage Drop (VF)
Name VRRM (V) IO (A) VF Max (V) IR Max (µA)
• Better Efficiency and Cooler Operation SD103AW 40 0.2 0.60 5.0μA@30V • Guard Ring Construction for Transient Protection SD103BW 30 0.2 0.60 5.0μA@20V •
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
SD103CW 20 0.2 0.60 5.0μA@10V •
Halogen and Antimony Free. “Green” Device (Note 3)
•
For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP Description capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes
These are 0.2A, 20V/30V/40V Schottky rectifiers packaged in SOD123
representative.
package.
https://www.diodes.com/quality/product-definitions/ Applications
Providing low VF and low reserve leakage, these devices are ideal for
Mechanical Data
use in general rectification applications such as: • Package: SOD123 • • Package Material: Molded Plastic. UL Flammability Low voltage rectifications • Classification Rating 94V-0 High-efficiency DC-DC conversions • • Moisture Sensitivity: Level 1 per J-STD-020 Switch mode power supplies • • Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe. Inverse polarity protections Solderable per MIL-STD-202, Method 208 • Polarity: Cathode Band • Weight: 0.01 grams (Approximate) SOD123 Top View
Ordering Information
(Note 4)
Packing Part Number Package Qty. Carrier
SD103AW-7-F SOD123 3000 Tape and Reel SD103BW-7-F SOD123 3000 Tape and Reel SD103CW-7-F SOD123 3000 Tape and Reel SD103CW-13-F SOD123 10,000 Tape and Reel Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/. SD103AW - SD103CW 1 of 5 May 2024 Document number: DS11013 Rev. 28 - 2
www.diodes.com
© 2024 Copyright Diodes Incorporated. All Rights Reserved.
(@T A = +25° C)
Features and Benefits
• Low-Forward Voltage Drop (VF)
Name VRRM (V) IO (A) VF Max (V) IR Max (µA)
• Better Efficiency and Cooler Operation SD103AW 40 0.2 0.60 5.0μA@30V • Guard Ring Construction for Transient Protection SD103BW 30 0.2 0.60 5.0μA@20V •
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
SD103CW 20 0.2 0.60 5.0μA@10V •
Halogen and Antimony Free. “Green” Device (Note 3)
•
For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP Description capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes
These are 0.2A, 20V/30V/40V Schottky rectifiers packaged in SOD123
representative.
package.
https://www.diodes.com/quality/product-definitions/ Applications
Providing low VF and low reserve leakage, these devices are ideal for
Mechanical Data
use in general rectification applications such as: • Package: SOD123 • • Package Material: Molded Plastic. UL Flammability Low voltage rectifications • Classification Rating 94V-0 High-efficiency DC-DC conversions • • Moisture Sensitivity: Level 1 per J-STD-020 Switch mode power supplies • • Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe. Inverse polarity protections Solderable per MIL-STD-202, Method 208 • Polarity: Cathode Band • Weight: 0.01 grams (Approximate) SOD123 Top View
Ordering Information
(Note 4)
Packing Part Number Package Qty. Carrier
SD103AW-7-F SOD123 3000 Tape and Reel SD103BW-7-F SOD123 3000 Tape and Reel SD103CW-7-F SOD123 3000 Tape and Reel SD103CW-13-F SOD123 10,000 Tape and Reel Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/. SD103AW - SD103CW 1 of 5 May 2024 Document number: DS11013 Rev. 28 - 2
www.diodes.com
© 2024 Copyright Diodes Incorporated. All Rights Reserved.
