2M214 MODEL. MAGNETRON SPEC. Rev. No. 2M214 MATERIAL AND STRUCTURE. LG Electronics Inc. Page
Línea de modelo para esta hoja de datos
Versión de texto del documento

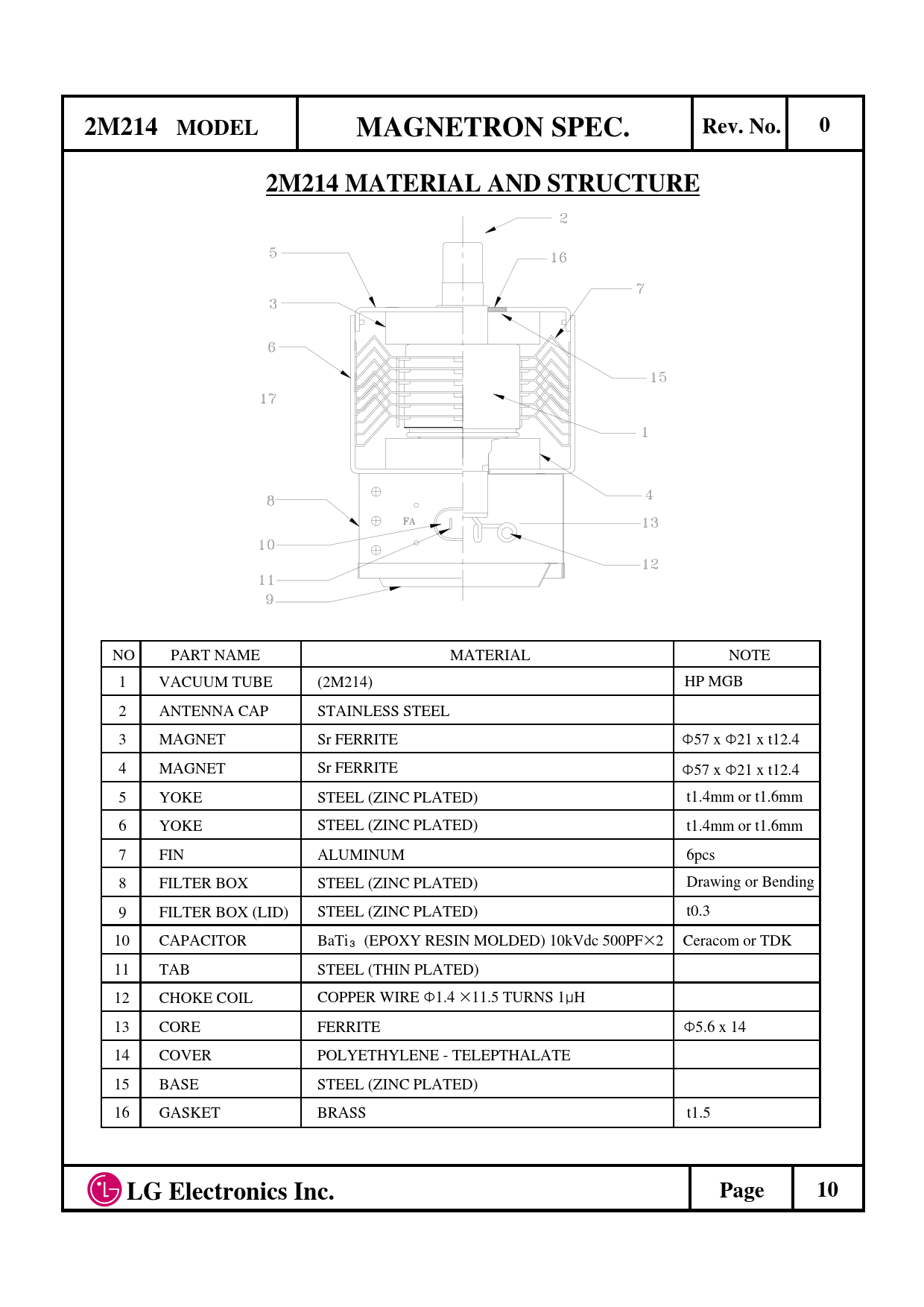

2M214 MODEL MAGNETRON SPEC. Rev. No. 0 2M214 MATERIAL AND STRUCTURE
NO PART NAME MATERIAL NOTE 1 VACUUM TUBE (2M214) HP MGB 2 ANTENNA CAP STAINLESS STEEL 3 MAGNET Sr FERRITE Φ57 x Φ21 x t12.4 4 MAGNET Sr FERRITE Φ57 x Φ21 x t12.4 5 YOKE STEEL (ZINC PLATED) t1.4mm or t1.6mm 6 YOKE STEEL (ZINC PLATED) t1.4mm or t1.6mm 7 FIN ALUMINUM 6pcs 8 FILTER BOX STEEL (ZINC PLATED) Drawing or Bending 9 FILTER BOX (LID) STEEL (ZINC PLATED) t0.3 10 CAPACITOR BaTi₃(EPOXY RESIN MOLDED) 10kVdc 500PF×2 Ceracom or TDK 11 TAB STEEL (THIN PLATED) 12 CHOKE COIL COPPER WIRE Φ1.4 ×11.5 TURNS 1μH 13 CORE FERRITE Φ5.6 x 14 14 COVER POLYETHYLENE - TELEPTHALATE 15 BASE STEEL (ZINC PLATED) 16 GASKET BRASS t1.5
LG Electronics Inc. Page 10
NO PART NAME MATERIAL NOTE 1 VACUUM TUBE (2M214) HP MGB 2 ANTENNA CAP STAINLESS STEEL 3 MAGNET Sr FERRITE Φ57 x Φ21 x t12.4 4 MAGNET Sr FERRITE Φ57 x Φ21 x t12.4 5 YOKE STEEL (ZINC PLATED) t1.4mm or t1.6mm 6 YOKE STEEL (ZINC PLATED) t1.4mm or t1.6mm 7 FIN ALUMINUM 6pcs 8 FILTER BOX STEEL (ZINC PLATED) Drawing or Bending 9 FILTER BOX (LID) STEEL (ZINC PLATED) t0.3 10 CAPACITOR BaTi₃(EPOXY RESIN MOLDED) 10kVdc 500PF×2 Ceracom or TDK 11 TAB STEEL (THIN PLATED) 12 CHOKE COIL COPPER WIRE Φ1.4 ×11.5 TURNS 1μH 13 CORE FERRITE Φ5.6 x 14 14 COVER POLYETHYLENE - TELEPTHALATE 15 BASE STEEL (ZINC PLATED) 16 GASKET BRASS t1.5
LG Electronics Inc. Page 10
