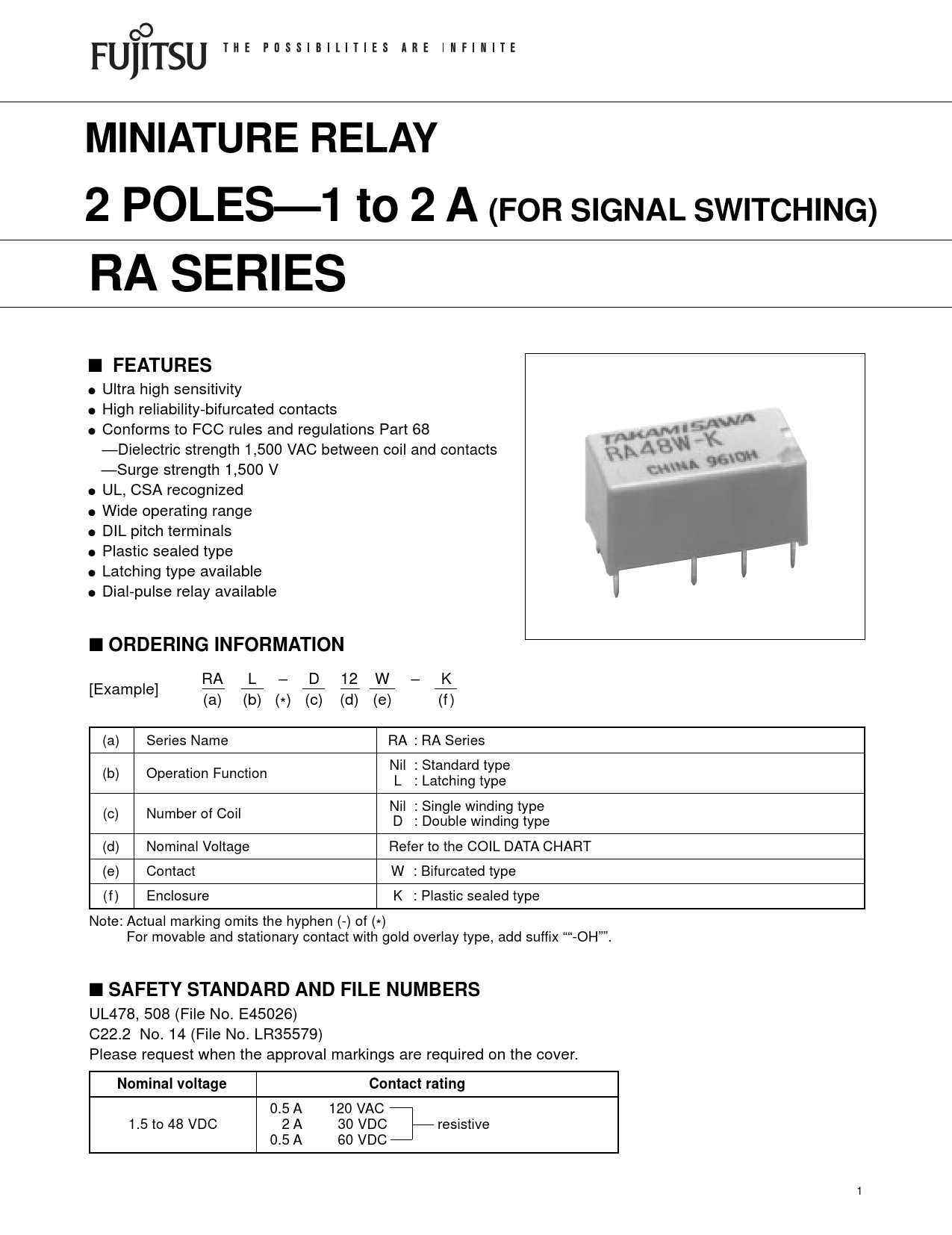

MINIATURE RELAY. 2 POLES—1 to 2 A (FOR SIGNAL SWITCHING). RA SERIES. FEATURES. ORDERING INFORMATION
Línea de modelo para esta hoja de datos
Versión de texto del documento
MINIATURE RELAY 2 POLES—1 to 2 A (FOR SIGNAL SWITCHING) RA SERIES
■
FEATURES
● Ultra high sensitivity ● High reliability-bifurcated contacts ● Conforms to FCC rules and regulations Part 68 —Dielectric strength 1,500 VAC between coil and contacts —Surge strength 1,500 V ● UL, CSA recognized ● Wide operating range ● DIL pitch terminals ● Plastic sealed type ● Latching type available ● Dial-pulse relay available ■
ORDERING INFORMATION
RA L – D 12 W – K [Example] (a) (b) (*) (c) (d) (e) (f ) (a) Series Name RA : RA Series Nil : Standard type (b) Operation Function L : Latching type Nil : Single winding type (c) Number of Coil D : Double winding type (d) Nominal Voltage Refer to the COIL DATA CHART (e) Contact W : Bifurcated type ( f ) Enclosure K : Plastic sealed type Note: Actual marking omits the hyphen (-) of (*) For movable and stationary contact with gold overlay type, add suffix ““-OH””. ■
SAFETY STANDARD AND FILE NUMBERS
UL478, 508 (File No. E45026) C22.2 No. 14 (File No. LR35579) Please request when the approval markings are required on the cover.
Nominal voltage Contact rating
0.5 A 120 VAC 1.5 to 48 VDC 2 A 30 VDC resistive 0.5 A 60 VDC 1
■
