Datasheet Wago 231-342/108-000 — Ficha de datos

FabricanteWago
Serie231
Numero de parte231-342/108-000

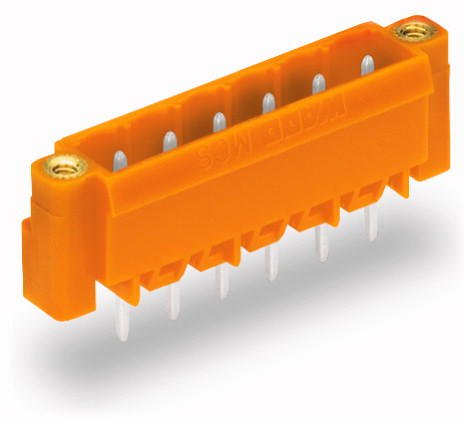

Datasheet Wago 231-342/108-000

THT encabezado masculino; 1.0 x 1.0 mm pin de soldadura; Derecho; Brida roscada; Distancia entre clavijas 5.08 mm; 12 polos

Precios

Descripción detallada

Wago 231-342/108-000

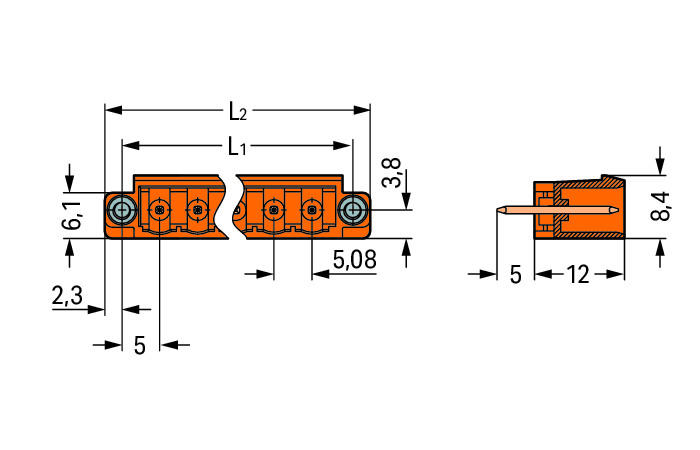

Paramétricos

Colororange
Connector connection typefor PCBs
Contact materialElectrolytic copper (Ecu)
Contact platingtin-plated
Contact type (pluggable connector)Male connector/plug
Страна происхожденияDE
Depth8.4 mm / 0.331 inch
Drilled hole diameter (tolerance)1.4(+ 0.1) mm
Fire load0.079 MJ
Flammability class per UL94V0
Global Trade Item Number (GTIN)4045454029159
Height17 mm / 0.669 inch
Height from the surface12 mm / 0.472 inch
Insulating materialPolyamide 66 (PA 66)
Legend (ratings)(III / 2) ≙ Overvoltage category III / Pollution degree 2
Limit temperature range-60 … +100 °C
Locking of plug-in connectionThreaded flange
Material groupI
Mating direction to the PCB90 °
Mismating protectionNo
Number of Poles12
Number of levels1
Number of solder pins per potential1
PCB contactTHT
Pin spacing5.08 mm (0.2 inch)
Product Group3 (Multi Conn. System)
Rated current12 A
Rated impulse voltage (II / 2)4 kV
Rated impulse voltage (III / 2)4 kV
Rated impulse voltage (III / 3)4 kV
Rated voltage (II / 2)630 V
Rated voltage (III / 2)320 V
Rated voltage (III / 3)320 V
Solder pin arrangementover the entire male connector, in line
Solder pin dimensions1 x 1 mm
Solder pin length5 mm
Total number of potentials12
Weight4.536 g
Width70.96 mm / 2.794 inch

Linea modelo

Serie: 231 (100 desde 1349)

Clasificación del fabricante

  • PCB Interconnect | Pluggable Connection Systems

Otros nombres:

231342/108000, 231 342/108 000
