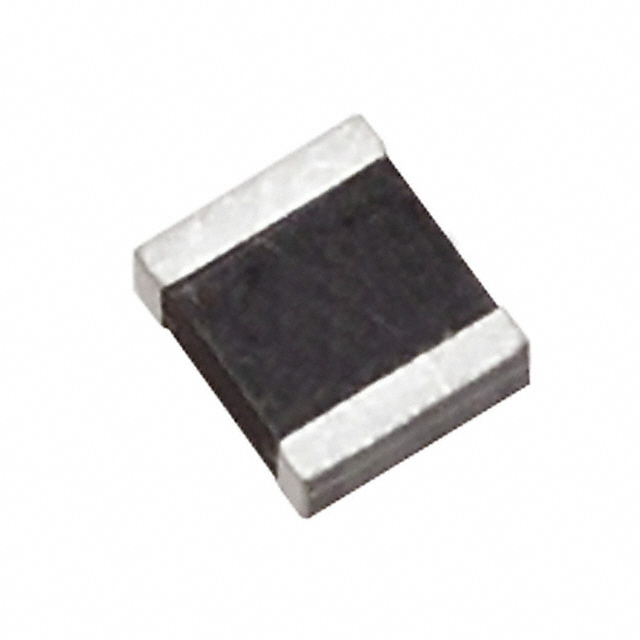

Datasheet Abracon AWSZT-CW — Ficha de datos

2.5 x 2.0mm INDUSTRIAL GRADE CERAMIC RESONATOR
AWSZT-CW AWSZT-CW RoHS/RoHS II compliant
Pb in ceramic, exemption (7c-I) 2.5 x 2.0 x 1.0 mm Moisture Sensitivity Level (MSL) – This product is not Moisture Sensitive -MSL = 1 FEATURES: APPLICATIONS:
• Remote controls, Microprocessor clocks, Mobile
phones, DVD & CD-Roms, Electric appliances
• Consumer electronics • Low resonant impedance
• Built-in load capacitors
• IR reflow capable ELECTRICAL CHARACTERISTICS:
Parameters
Frequency Range Minimum
20.00 Typical Resonant Impedance (Ro)
10 – 20%
5 – 20%
5 – 20% Frequency Tolerance @25 ºC
Frequency Stability @ -25ºC to +85ºC
Withstanding Voltage
(1) D.C.Voltage
Rating Voltage
(2) A.C. Voltage 0.5
0.2 %
%
V 50 6
15 V …
