NE Central TM CMZ5921B
THRU
CMZ5956B Semiconductor Corp. SURFACE MOUNT
SILICON ZENER DIODE
1.5 WATT, 6.8 THRU 200 VOLTS
± 5% TOLERANCE FEATURES:
• SUPER MINIATURE CASE
• 200 WATTS OF TVS POWER
• ± 5% TOLERANCE
• SUPERIOR LOT TO LOT CONSISTENCY
• LOW COST
• HIGH RELIABILITY
• "C" BEND CONSTRUCTION PROVIDES
STRAIN RELIEF WHEN MOUNTED ON

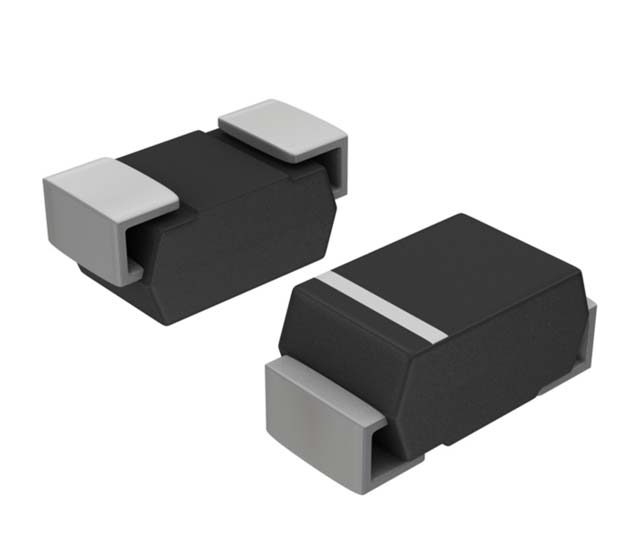

PC BOARD SMA CASE DESCRIPTION:
The CENTRAL SEMICONDUCTOR 1.5 Watt Surface Mount Silicon Zener Diode is a high quality, well
constructed, highly reliable component designed for use in all types of commercial, industrial, entertainment,
computer, and automotive applications where small size is required. The SMA case occupies 30% less
board space than the SMB case. To order devices on 12mm Tape and Reel (5000/13" Reel), add TR13
suffix to part number. MAXIMUM RATINGS: (TA=25°C unless otherwise noted)
SYMBOL
Peak Forward Surge Current (8.3ms)
…
