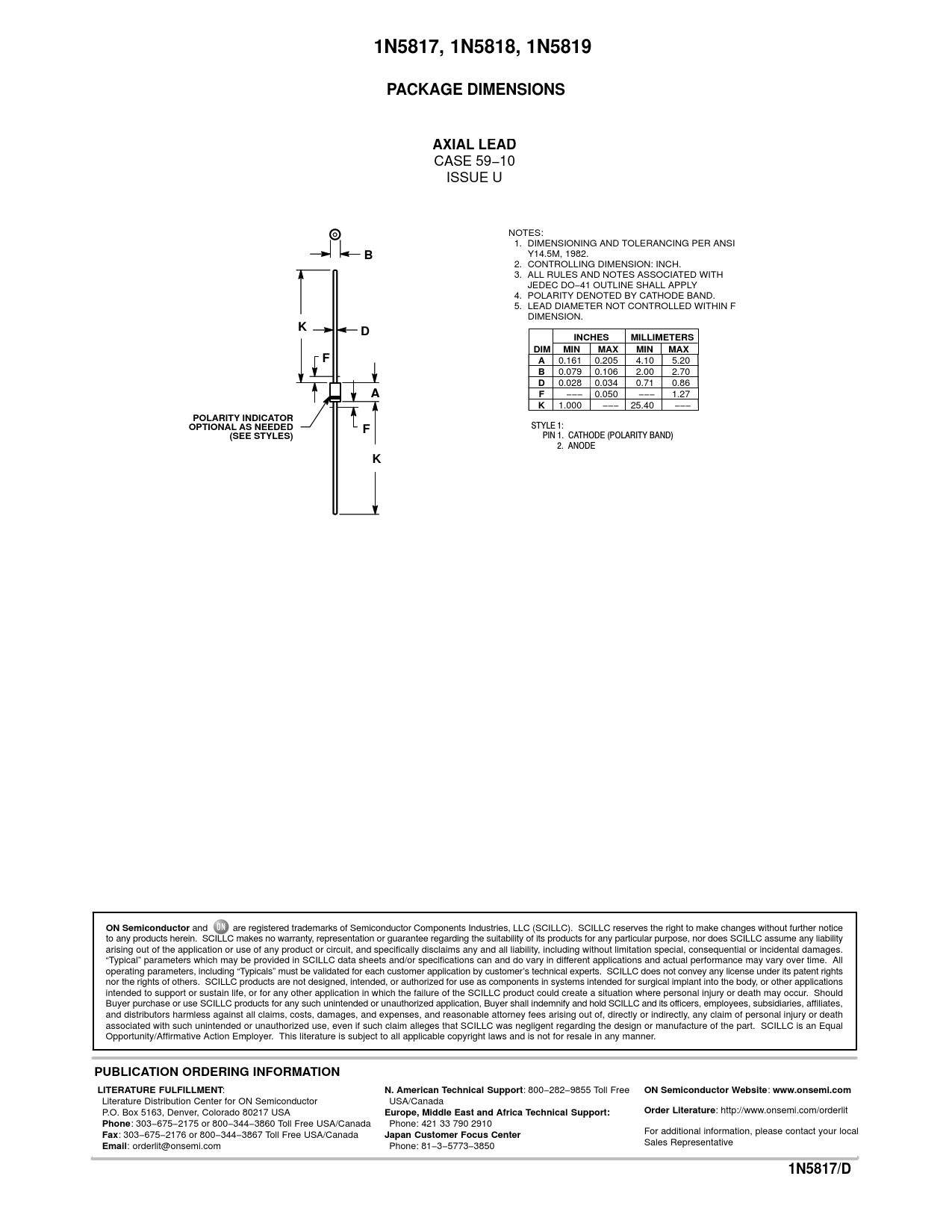

1N5817, 1N5818, 1N5819 PACKAGE DIMENSIONS AXIAL LEAD
CASE 59−10 ISSUE U NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI
B
Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. 3. ALL RULES AND NOTES ASSOCIATED WITH JEDEC DO−41 OUTLINE SHALL APPLY 4. POLARITY DENOTED BY CATHODE BAND. 5. LEAD DIAMETER NOT CONTROLLED WITHIN F DIMENSION.
K D INCHES MILLIMETERS DIM MIN MAX MIN MAX F A
0.161 0.205 4.10 5.20
B
0.079 0.106 2.00 2.70
D
0.028 0.034 0.71 0.86
A F
−−− 0.050 −−− 1.27
K
1.000 −−− 25.40 −−−
POLARITY INDICATOR OPTIONAL AS NEEDED F
STYLE 1:
(SEE STYLES)
PIN 1. CATHODE (POLARITY BAND) 2. ANODE
