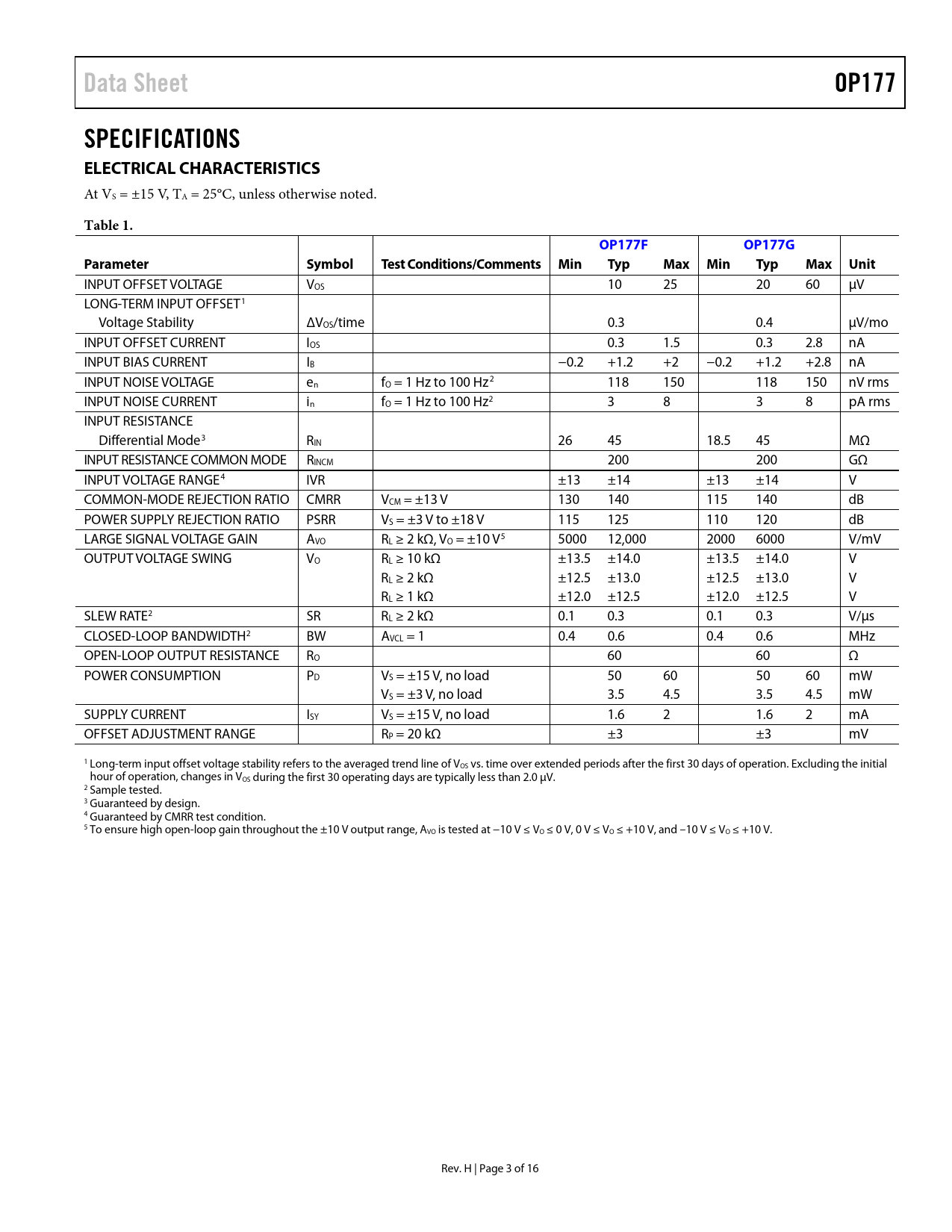

Data Sheet. OP177. SPECIFICATIONS ELECTRICAL CHARACTERISTICS. Table 1. OP177F. OP177G. Parameter. Symbol. Test Conditions/Comments Min

Data Sheet OP177 SPECIFICATIONS ELECTRICAL CHARACTERISTICS Table 1 OP177F OP177G Parameter Symbol Test Conditions/Comments Min

Línea de modelo para esta hoja de datos

Versión de texto del documento

Data Sheet OP177 SPECIFICATIONS ELECTRICAL CHARACTERISTICS
At VS = ±15 V, TA = 25°C, unless otherwise noted.
Table 1. OP177F OP177G Parameter Symbol Test Conditions/Comments Min Typ Max Min Typ Max Unit
INPUT OFFSET VOLTAGE VOS 10 25 20 60 μV LONG-TERM INPUT OFFSET1 Voltage Stability ΔVOS/time 0.3 0.4 μV/mo INPUT OFFSET CURRENT IOS 0.3 1.5 0.3 2.8 nA INPUT BIAS CURRENT IB −0.2 +1.2 +2 −0.2 +1.2 +2.8 nA INPUT NOISE VOLTAGE en fO = 1 Hz to 100 Hz2 118 150 118 150 nV rms INPUT NOISE CURRENT in fO = 1 Hz to 100 Hz2 3 8 3 8 pA rms INPUT RESISTANCE Differential Mode3 RIN 26 45 18.5 45 MΩ INPUT RESISTANCE COMMON MODE RINCM 200 200 GΩ INPUT VOLTAGE RANGE4 IVR ±13 ±14 ±13 ±14 V COMMON-MODE REJECTION RATIO CMRR VCM = ±13 V 130 140 115 140 dB POWER SUPPLY REJECTION RATIO PSRR VS = ±3 V to ±18 V 115 125 110 120 dB LARGE SIGNAL VOLTAGE GAIN AVO RL ≥ 2 kΩ, VO = ±10 V5 5000 12,000 2000 6000 V/mV OUTPUT VOLTAGE SWING VO RL ≥ 10 kΩ ±13.5 ±14.0 ±13.5 ±14.0 V RL ≥ 2 kΩ ±12.5 ±13.0 ±12.5 ±13.0 V RL ≥ 1 kΩ ±12.0 ±12.5 ±12.0 ±12.5 V SLEW RATE2 SR RL ≥ 2 kΩ 0.1 0.3 0.1 0.3 V/μs CLOSED-LOOP BANDWIDTH2 BW AVCL = 1 0.4 0.6 0.4 0.6 MHz OPEN-LOOP OUTPUT RESISTANCE RO 60 60 Ω POWER CONSUMPTION PD VS = ±15 V, no load 50 60 50 60 mW VS = ±3 V, no load 3.5 4.5 3.5 4.5 mW SUPPLY CURRENT ISY VS = ±15 V, no load 1.6 2 1.6 2 mA OFFSET ADJUSTMENT RANGE RP = 20 kΩ ±3 ±3 mV 1 Long-term input offset voltage stability refers to the averaged trend line of VOS vs. time over extended periods after the first 30 days of operation. Excluding the initial hour of operation, changes in VOS during the first 30 operating days are typical y less than 2.0 μV. 2 Sample tested. 3 Guaranteed by design. 4 Guaranteed by CMRR test condition. 5 To ensure high open-loop gain throughout the ±10 V output range, AVO is tested at −10 V ≤ VO ≤ 0 V, 0 V ≤ VO ≤ +10 V, and –10 V ≤ VO ≤ +10 V. Rev. H | Page 3 of 16 Document Outline FEATURES PIN CONFIGURATION GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS TEST CIRCUITS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION GAIN LINEARITY THERMOCOUPLE AMPLIFIER WITH COLD-JUNCTION COMPENSATION PRECISION HIGH GAIN DIFFERENTIAL AMPLIFIER ISOLATING LARGE CAPACITIVE LOADS BILATERAL CURRENT SOURCE PRECISION ABSOLUTE VALUE AMPLIFIER PRECISION POSITIVE PEAK DETECTOR PRECISION THRESHOLD DETECTOR/AMPLIFIER OUTLINE DIMENSIONS ORDERING GUIDE
