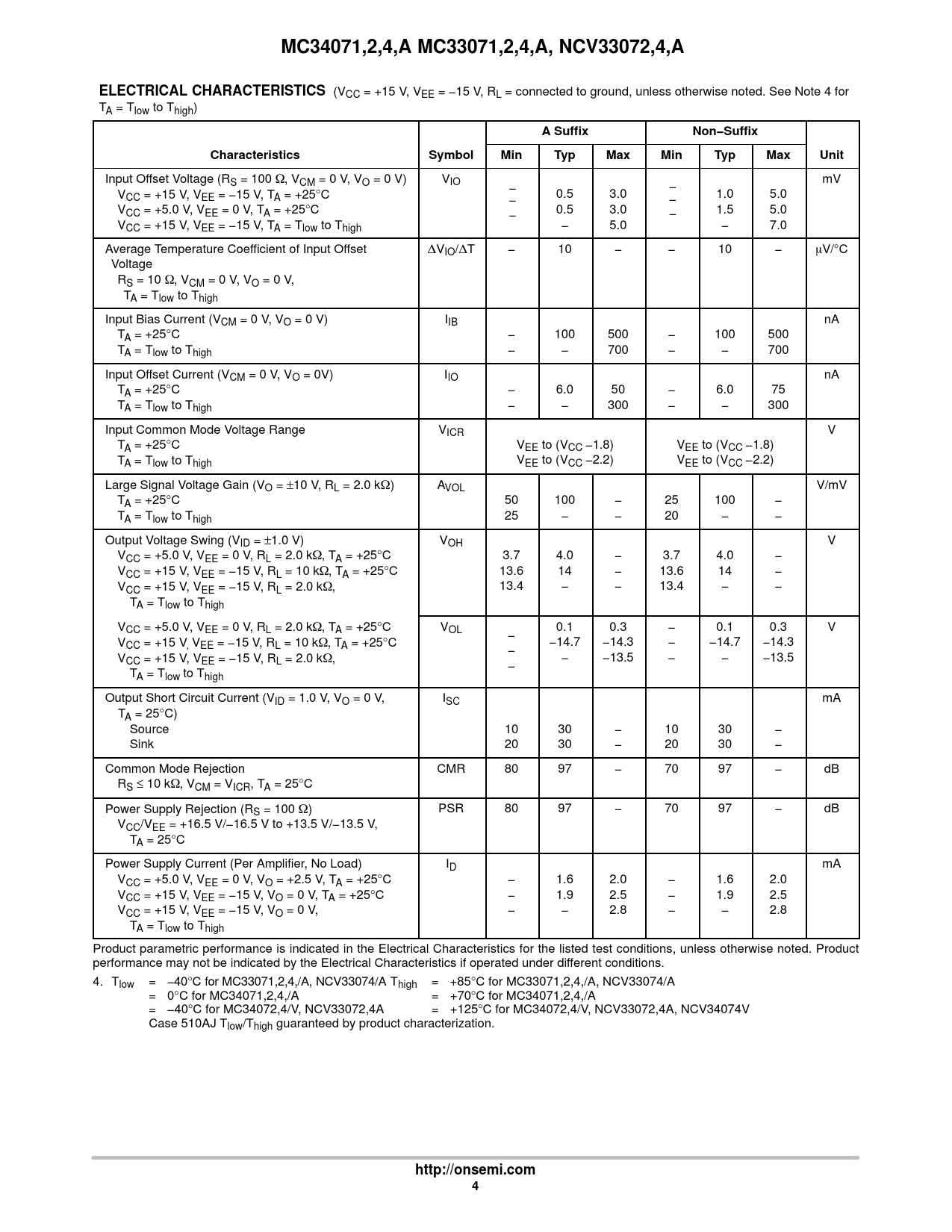

MC34071,2,4,A MC33071,2,4,A, NCV33072,4,A ELECTRICAL CHARACTERISTICS
(VCC = +15 V, VEE = −15 V, RL = connected to ground, unless otherwise noted. See Note 4 for TA = Tlow to Thigh)
A Suffix Non−Suffix Characteristics Symbol Min Typ Max Min Typ Max Unit
Input Offset Voltage (RS = 100 W, VCM = 0 V, VO = 0 V) VIO mV − − VCC = +15 V, VEE = −15 V, TA = +25°C − 0.5 3.0 − 1.0 5.0 VCC = +5.0 V, VEE = 0 V, TA = +25°C − 0.5 3.0 − 1.5 5.0 VCC = +15 V, VEE = −15 V, TA = Tlow to Thigh − 5.0 − 7.0 Average Temperature Coefficient of Input Offset DVIO/DT − 10 − − 10 − mV/°C Voltage RS = 10 W, VCM = 0 V, VO = 0 V, TA = Tlow to Thigh Input Bias Current (VCM = 0 V, VO = 0 V) IIB nA TA = +25°C − 100 500 − 100 500 TA = Tlow to Thigh − − 700 − − 700 Input Offset Current (VCM = 0 V, VO = 0V) IIO nA TA = +25°C − 6.0 50 − 6.0 75 TA = Tlow to Thigh − − 300 − − 300 Input Common Mode Voltage Range VICR V TA = +25°C VEE to (VCC −1.8) VEE to (VCC −1.8) TA = Tlow to Thigh VEE to (VCC −2.2) VEE to (VCC −2.2) Large Signal Voltage Gain (VO = ±10 V, RL = 2.0 kW) AVOL V/mV TA = +25°C 50 100 − 25 100 − TA = Tlow to Thigh 25 − − 20 − − Output Voltage Swing (VID = ±1.0 V) VOH V VCC = +5.0 V, VEE = 0 V, RL = 2.0 kW, TA = +25°C 3.7 4.0 − 3.7 4.0 − VCC = +15 V, VEE = −15 V, RL = 10 kW, TA = +25°C 13.6 14 − 13.6 14 − VCC = +15 V, VEE = −15 V, RL = 2.0 kW, 13.4 − − 13.4 − − TA = Tlow to Thigh VCC = +5.0 V, VEE = 0 V, RL = 2.0 kW, TA = +25°C VOL 0.1 0.3 − 0.1 0.3 V − VCC = +15 V, VEE = −15 V, RL = 10 kW, TA = +25°C −14.7 −14.3 − −14.7 −14.3 − VCC = +15 V, VEE = −15 V, RL = 2.0 kW, − −13.5 − − −13.5 − TA = Tlow to Thigh Output Short Circuit Current (VID = 1.0 V, VO = 0 V, ISC mA TA = 25°C) Source 10 30 − 10 30 − Sink 20 30 − 20 30 − Common Mode Rejection CMR 80 97 − 70 97 − dB RS ≤ 10 kW, VCM = VICR, TA = 25°C Power Supply Rejection (RS = 100 W) PSR 80 97 − 70 97 − dB VCC/VEE = +16.5 V/−16.5 V to +13.5 V/−13.5 V, TA = 25°C Power Supply Current (Per Amplifier, No Load) ID mA VCC = +5.0 V, VEE = 0 V, VO = +2.5 V, TA = +25°C − 1.6 2.0 − 1.6 2.0 VCC = +15 V, VEE = −15 V, VO = 0 V, TA = +25°C − 1.9 2.5 − 1.9 2.5 VCC = +15 V, VEE = −15 V, VO = 0 V, − − 2.8 − − 2.8 TA = Tlow to Thigh Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions. 4. Tlow = −40°C for MC33071,2,4,/A, NCV33074/A Thigh = +85°C for MC33071,2,4,/A, NCV33074/A = 0°C for MC34071,2,4,/A = +70°C for MC34071,2,4,/A = −40°C for MC34072,4/V, NCV33072,4A = +125°C for MC34072,4/V, NCV33072,4A, NCV34074V Case 510AJ Tlow/Thigh guaranteed by product characterization.
http://onsemi.com 4
