Datasheet MIC7122 (Microchip)
| Fabricante | Microchip |
| Descripción | The MIC7122 is a dual high-performance CMOS operational amplifier featuring rail-to-rail inputs and outputs |
| Páginas / Página | 8 / 1 — MIC7122. Rail-to-Rail Dual Op Amp. General Description. Features. … |
| Formato / tamaño de archivo | PDF / 52 Kb |
| Idioma del documento | Inglés |
MIC7122. Rail-to-Rail Dual Op Amp. General Description. Features. Applications. Ordering Information. Part Number. Standard. Pb-free
Línea de modelo para esta hoja de datos
Versión de texto del documento

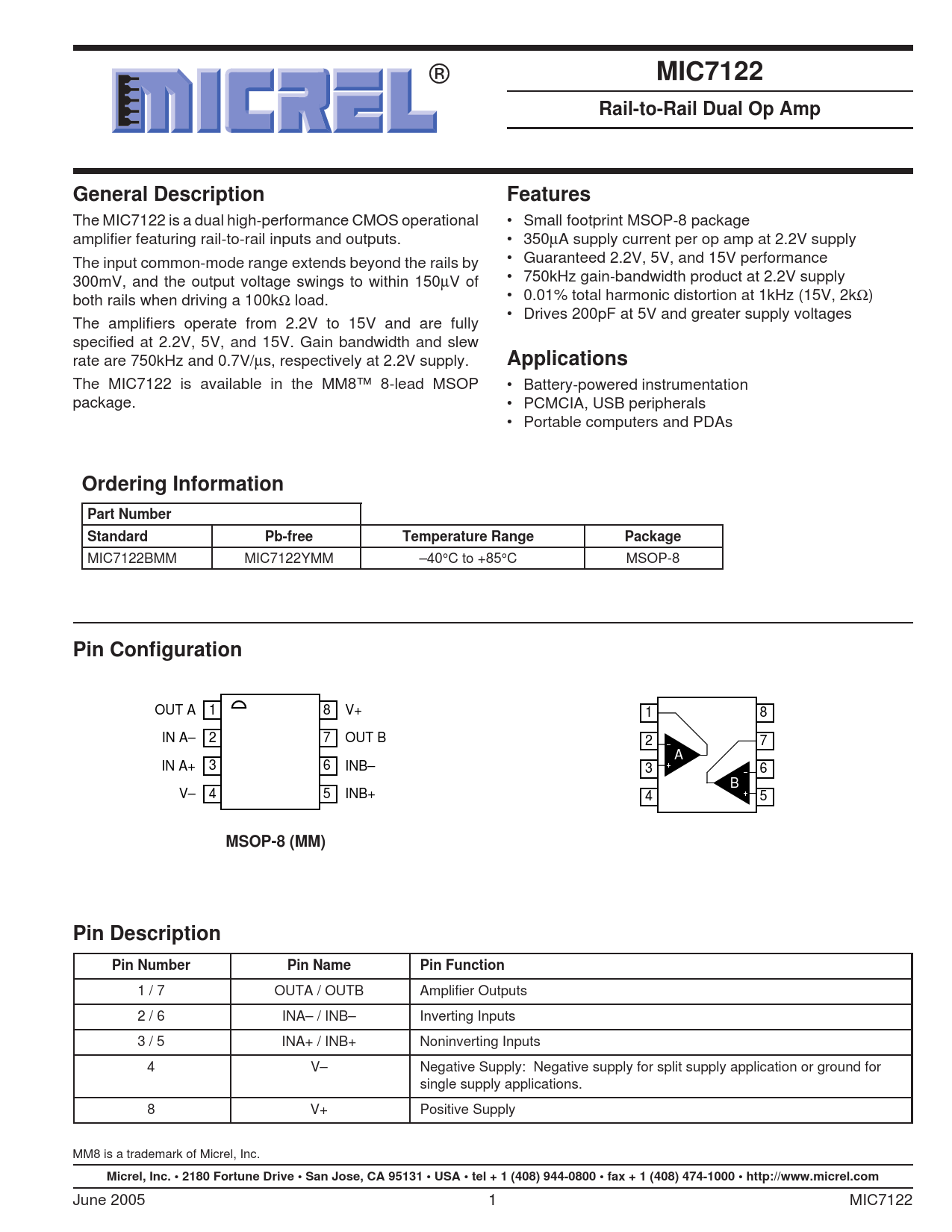

MIC7122 Micrel
MIC7122 Rail-to-Rail Dual Op Amp General Description Features
The MIC7122 is a dual high-performance CMOS operational • Small footprint MSOP-8 package amplifier featuring rail-to-rail inputs and outputs. • 350µA supply current per op amp at 2.2V supply The input common-mode range extends beyond the rails by • Guaranteed 2.2V, 5V, and 15V performance 300mV, and the output voltage swings to within 150µV of • 750kHz gain-bandwidth product at 2.2V supply both rails when driving a 100kΩ load. • 0.01% total harmonic distortion at 1kHz (15V, 2kΩ) • Drives 200pF at 5V and greater supply voltages The amplifiers operate from 2.2V to 15V and are fully specified at 2.2V, 5V, and 15V. Gain bandwidth and slew rate are 750kHz and 0.7V/µs, respectively at 2.2V supply.
Applications
The MIC7122 is available in the MM8™ 8-lead MSOP • Battery-powered instrumentation package. • PCMCIA, USB peripherals • Portable computers and PDAs
Ordering Information Part Number Standard Pb-free Temperature Range Package
MIC7122BMM MIC7122YMM –40°C to +85°C MSOP-8
Pin Configuration
OUT A 1 8 V+ 1 8 IN A– 2 7 OUT B 2 7 A IN A+ 3 6 INB– 3 6 B V– 4 5 INB+ 4 5
MSOP-8 (MM) Pin Description Pin Number Pin Name Pin Function
1 / 7 OUTA / OUTB Amplifier Outputs 2 / 6 INA– / INB– Inverting Inputs 3 / 5 INA+ / INB+ Noninverting Inputs 4 V– Negative Supply: Negative supply for split supply application or ground for single supply applications. 8 V+ Positive Supply MM8 is a trademark of Micrel, Inc.
Micrel, Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel + 1 (408) 944-0800 • fax + 1 (408) 474-1000 • http://www.micrel.com
June 2005 1 MIC7122
MIC7122 Rail-to-Rail Dual Op Amp General Description Features
The MIC7122 is a dual high-performance CMOS operational • Small footprint MSOP-8 package amplifier featuring rail-to-rail inputs and outputs. • 350µA supply current per op amp at 2.2V supply The input common-mode range extends beyond the rails by • Guaranteed 2.2V, 5V, and 15V performance 300mV, and the output voltage swings to within 150µV of • 750kHz gain-bandwidth product at 2.2V supply both rails when driving a 100kΩ load. • 0.01% total harmonic distortion at 1kHz (15V, 2kΩ) • Drives 200pF at 5V and greater supply voltages The amplifiers operate from 2.2V to 15V and are fully specified at 2.2V, 5V, and 15V. Gain bandwidth and slew rate are 750kHz and 0.7V/µs, respectively at 2.2V supply.
Applications
The MIC7122 is available in the MM8™ 8-lead MSOP • Battery-powered instrumentation package. • PCMCIA, USB peripherals • Portable computers and PDAs
Ordering Information Part Number Standard Pb-free Temperature Range Package
MIC7122BMM MIC7122YMM –40°C to +85°C MSOP-8
Pin Configuration
OUT A 1 8 V+ 1 8 IN A– 2 7 OUT B 2 7 A IN A+ 3 6 INB– 3 6 B V– 4 5 INB+ 4 5
MSOP-8 (MM) Pin Description Pin Number Pin Name Pin Function
1 / 7 OUTA / OUTB Amplifier Outputs 2 / 6 INA– / INB– Inverting Inputs 3 / 5 INA+ / INB+ Noninverting Inputs 4 V– Negative Supply: Negative supply for split supply application or ground for single supply applications. 8 V+ Positive Supply MM8 is a trademark of Micrel, Inc.
Micrel, Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel + 1 (408) 944-0800 • fax + 1 (408) 474-1000 • http://www.micrel.com
June 2005 1 MIC7122
