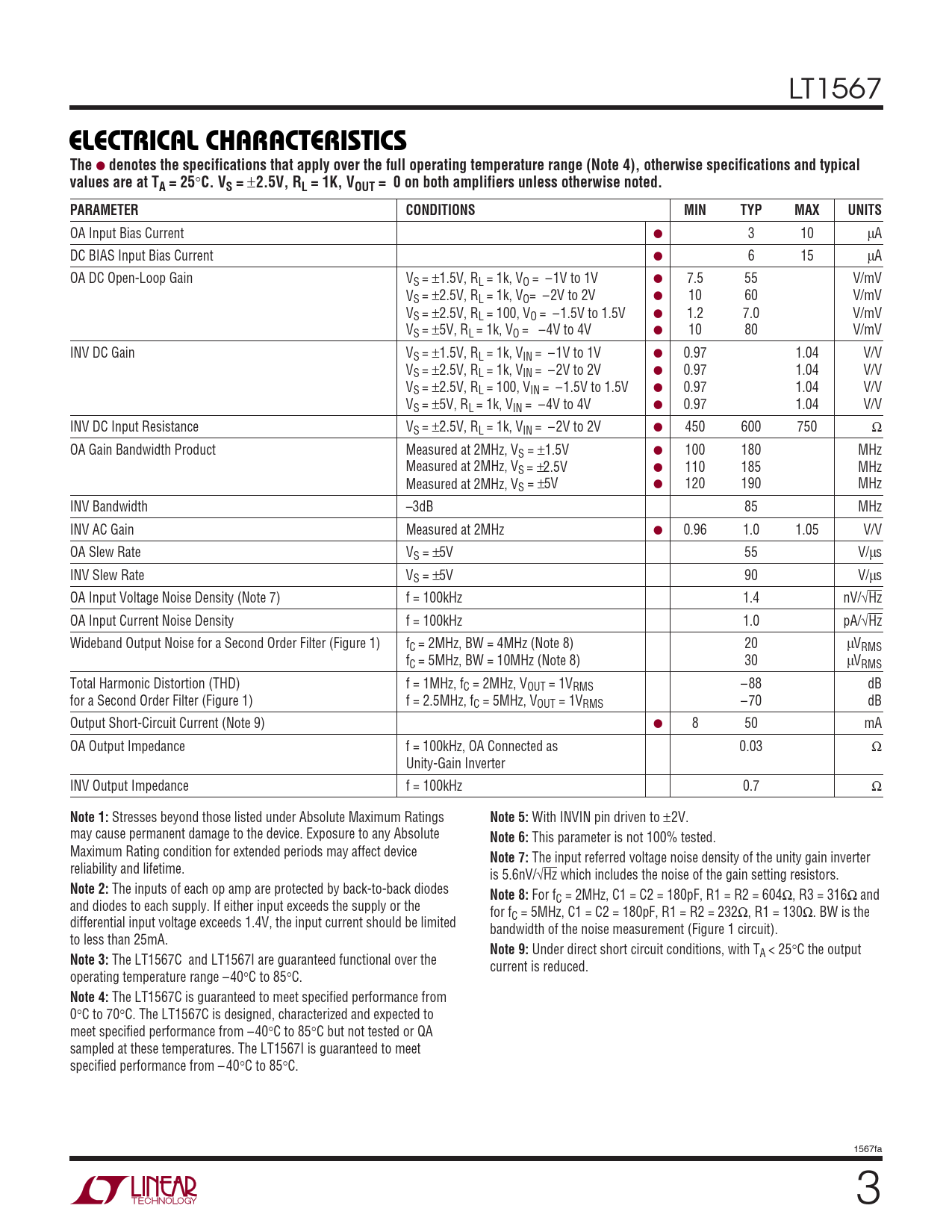

ELECTRICAL CHARACTERISTICS. The

ELECTRICAL CHARACTERISTICS The

Línea de modelo para esta hoja de datos

Versión de texto del documento

LT1567
ELECTRICAL CHARACTERISTICS The

denotes the specifications that apply over the full operating temperature range (Note 4), otherwise specifications and typical values are at TA = 25
°
C. VS =
±
2.5V, RL = 1K, VOUT = 0 on both amplifiers unless otherwise noted. PARAMETER CONDITIONS MIN TYP MAX UNITS
OA Input Bias Current ● 3 10 µA DC BIAS Input Bias Current ● 6 15 µA OA DC Open-Loop Gain VS = ±1.5V, RL = 1k, VO = –1V to 1V ● 7.5 55 V/mV VS = ±2.5V, RL = 1k, VO= –2V to 2V ● 10 60 V/mV VS = ±2.5V, RL = 100, VO = –1.5V to 1.5V ● 1.2 7.0 V/mV VS = ±5V, RL = 1k, VO = –4V to 4V ● 10 80 V/mV INV DC Gain VS = ±1.5V, RL = 1k, VIN = –1V to 1V ● 0.97 1.04 V/V VS = ±2.5V, RL = 1k, VIN = –2V to 2V ● 0.97 1.04 V/V VS = ±2.5V, RL = 100, VIN = –1.5V to 1.5V ● 0.97 1.04 V/V VS = ±5V, RL = 1k, VIN = –4V to 4V ● 0.97 1.04 V/V INV DC Input Resistance VS = ±2.5V, RL = 1k, VIN = –2V to 2V ● 450 600 750 Ω OA Gain Bandwidth Product Measured at 2MHz, VS = ±1.5V ● 100 180 MHz Measured at 2MHz, VS = ±2.5V ● 110 185 MHz Measured at 2MHz, VS = ±5V ● 120 190 MHz INV Bandwidth –3dB 85 MHz INV AC Gain Measured at 2MHz ● 0.96 1.0 1.05 V/V OA Slew Rate VS = ±5V 55 V/µs INV Slew Rate VS = ±5V 90 V/µs OA Input Voltage Noise Density (Note 7) f = 100kHz 1.4 nV/√Hz OA Input Current Noise Density f = 100kHz 1.0 pA/√Hz Wideband Output Noise for a Second Order Filter (Figure 1) fC = 2MHz, BW = 4MHz (Note 8) 20 µVRMS fC = 5MHz, BW = 10MHz (Note 8) 30 µVRMS Total Harmonic Distortion (THD) f = 1MHz, fC = 2MHz, VOUT = 1VRMS –88 dB for a Second Order Filter (Figure 1) f = 2.5MHz, fC = 5MHz, VOUT = 1VRMS –70 dB Output Short-Circuit Current (Note 9) ● 8 50 mA OA Output Impedance f = 100kHz, OA Connected as 0.03 Ω Unity-Gain Inverter INV Output Impedance f = 100kHz 0.7 Ω
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 5:
With INVIN pin driven to ±2V. may cause permanent damage to the device. Exposure to any Absolute
Note 6:
This parameter is not 100% tested. Maximum Rating condition for extended periods may affect device
Note 7:
The input referred voltage noise density of the unity gain inverter reliability and lifetime. is 5.6nV/√Hz which includes the noise of the gain setting resistors.
Note 2:
The inputs of each op amp are protected by back-to-back diodes
Note 8:
For fC = 2MHz, C1 = C2 = 180pF, R1 = R2 = 604Ω, R3 = 316Ω and and diodes to each supply. If either input exceeds the supply or the for fC = 5MHz, C1 = C2 = 180pF, R1 = R2 = 232Ω, R1 = 130Ω. BW is the differential input voltage exceeds 1.4V, the input current should be limited bandwidth of the noise measurement (Figure 1 circuit). to less than 25mA.
Note 9:
Under direct short circuit conditions, with TA < 25°C the output
Note 3:
The LT1567C and LT1567I are guaranteed functional over the current is reduced. operating temperature range –40°C to 85°C.
Note 4:
The LT1567C is guaranteed to meet specified performance from 0°C to 70°C. The LT1567C is designed, characterized and expected to meet specified performance from –40°C to 85°C but not tested or QA sampled at these temperatures. The LT1567I is guaranteed to meet specified performance from – 40°C to 85°C. 1567fa 3
