Datasheet ADA4851-1, ADA4851-2, ADA4851-4 (Analog Devices) - 4

FabricanteAnalog Devices
DescripciónLow Cost, High Speed, Rail-to-Rail, Output Op Amp (Dual)
Páginas / Página24 / 4 — ADA4851-1/ADA4851-2/ADA4851-4. SPECIFICATIONS SPECIFICATIONS WITH +3 V …
RevisiónJ
Formato / tamaño de archivoPDF / 412 Kb
Idioma del documentoInglés

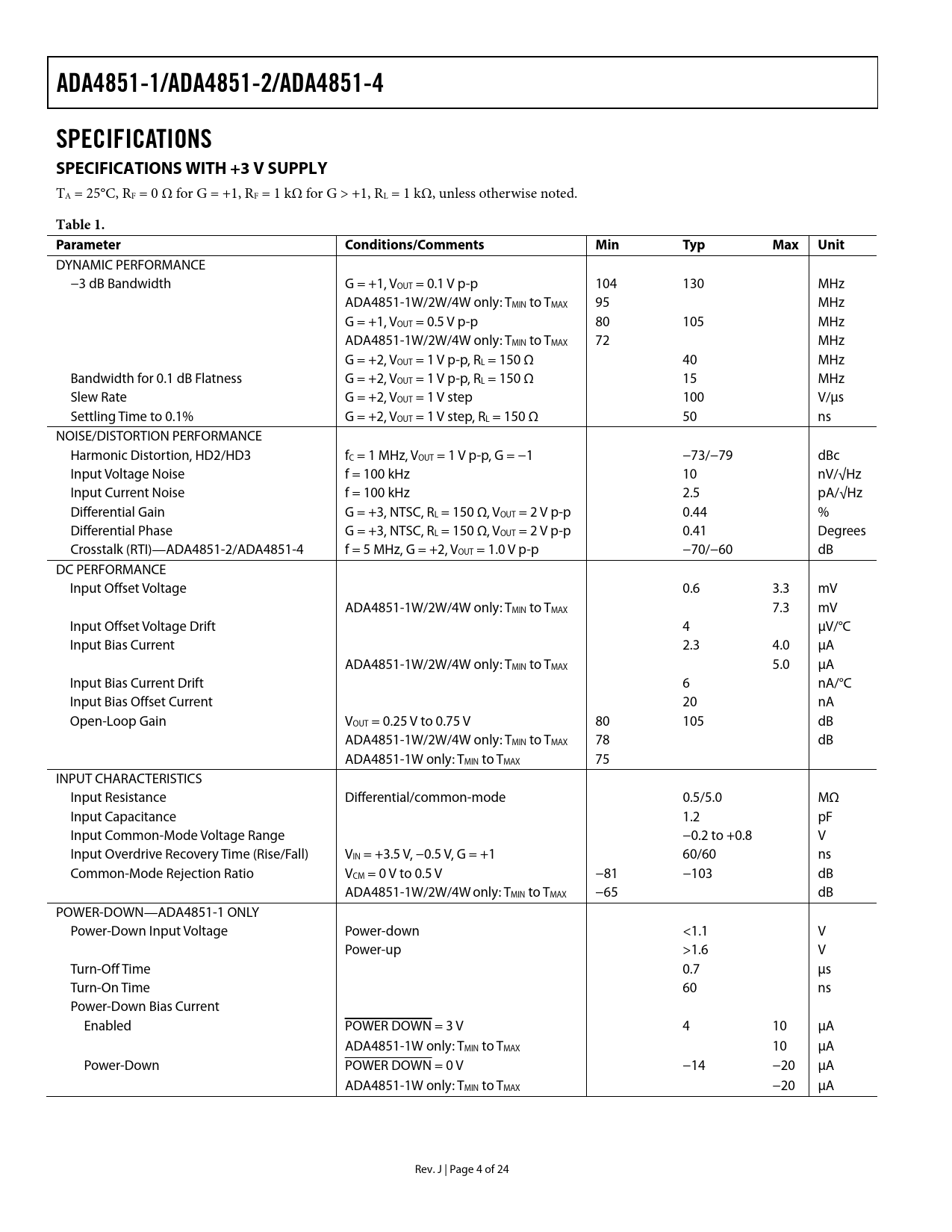

ADA4851-1/ADA4851-2/ADA4851-4. SPECIFICATIONS SPECIFICATIONS WITH +3 V SUPPLY. Table 1. Parameter Conditions/Comments. Min. Typ

ADA4851-1/ADA4851-2/ADA4851-4 SPECIFICATIONS SPECIFICATIONS WITH +3 V SUPPLY Table 1 Parameter Conditions/Comments Min Typ

Línea de modelo para esta hoja de datos

Versión de texto del documento

ADA4851-1/ADA4851-2/ADA4851-4 SPECIFICATIONS SPECIFICATIONS WITH +3 V SUPPLY
TA = 25°C, RF = 0 Ω for G = +1, RF = 1 kΩ for G > +1, RL = 1 kΩ, unless otherwise noted.
Table 1. Parameter Conditions/Comments Min Typ Max Unit
DYNAMIC PERFORMANCE −3 dB Bandwidth G = +1, VOUT = 0.1 V p-p 104 130 MHz ADA4851-1W/2W/4W only: TMIN to TMAX 95 MHz G = +1, VOUT = 0.5 V p-p 80 105 MHz ADA4851-1W/2W/4W only: TMIN to TMAX 72 MHz G = +2, VOUT = 1 V p-p, RL = 150 Ω 40 MHz Bandwidth for 0.1 dB Flatness G = +2, VOUT = 1 V p-p, RL = 150 Ω 15 MHz Slew Rate G = +2, VOUT = 1 V step 100 V/μs Settling Time to 0.1% G = +2, VOUT = 1 V step, RL = 150 Ω 50 ns NOISE/DISTORTION PERFORMANCE Harmonic Distortion, HD2/HD3 fC = 1 MHz, VOUT = 1 V p-p, G = −1 −73/−79 dBc Input Voltage Noise f = 100 kHz 10 nV/√Hz Input Current Noise f = 100 kHz 2.5 pA/√Hz Differential Gain G = +3, NTSC, RL = 150 Ω, VOUT = 2 V p-p 0.44 % Differential Phase G = +3, NTSC, RL = 150 Ω, VOUT = 2 V p-p 0.41 Degrees Crosstalk (RTI)—ADA4851-2/ADA4851-4 f = 5 MHz, G = +2, VOUT = 1.0 V p-p −70/−60 dB DC PERFORMANCE Input Offset Voltage 0.6 3.3 mV ADA4851-1W/2W/4W only: TMIN to TMAX 7.3 mV Input Offset Voltage Drift 4 μV/°C Input Bias Current 2.3 4.0 μA ADA4851-1W/2W/4W only: TMIN to TMAX 5.0 μA Input Bias Current Drift 6 nA/°C Input Bias Offset Current 20 nA Open-Loop Gain VOUT = 0.25 V to 0.75 V 80 105 dB ADA4851-1W/2W/4W only: TMIN to TMAX 78 dB ADA4851-1W only: TMIN to TMAX 75 INPUT CHARACTERISTICS Input Resistance Differential/common-mode 0.5/5.0 MΩ Input Capacitance 1.2 pF Input Common-Mode Voltage Range −0.2 to +0.8 V Input Overdrive Recovery Time (Rise/Fall) VIN = +3.5 V, −0.5 V, G = +1 60/60 ns Common-Mode Rejection Ratio VCM = 0 V to 0.5 V −81 −103 dB ADA4851-1W/2W/4W only: TMIN to TMAX −65 dB POWER-DOWN—ADA4851-1 ONLY Power-Down Input Voltage Power-down <1.1 V Power-up >1.6 V Turn-Off Time 0.7 μs Turn-On Time 60 ns Power-Down Bias Current Enabled POWER DOWN = 3 V 4 10 μA ADA4851-1W only: TMIN to TMAX 10 μA Power-Down POWER DOWN = 0 V −14 −20 μA ADA4851-1W only: TMIN to TMAX −20 μA Rev. J | Page 4 of 24 Document Outline FEATURES APPLICATIONS PIN CONFIGURATIONS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS SPECIFICATIONS WITH +3 V SUPPLY SPECIFICATIONS WITH +5 V SUPPLY SPECIFICATIONS WITH ±5 V SUPPLY ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Maximum Power Dissipation ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS CIRCUIT DESCRIPTION HEADROOM CONSIDERATIONS OVERLOAD BEHAVIOR AND RECOVERY Input Output SINGLE-SUPPLY VIDEO AMPLIFIER VIDEO RECONSTRUCTION FILTER OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
