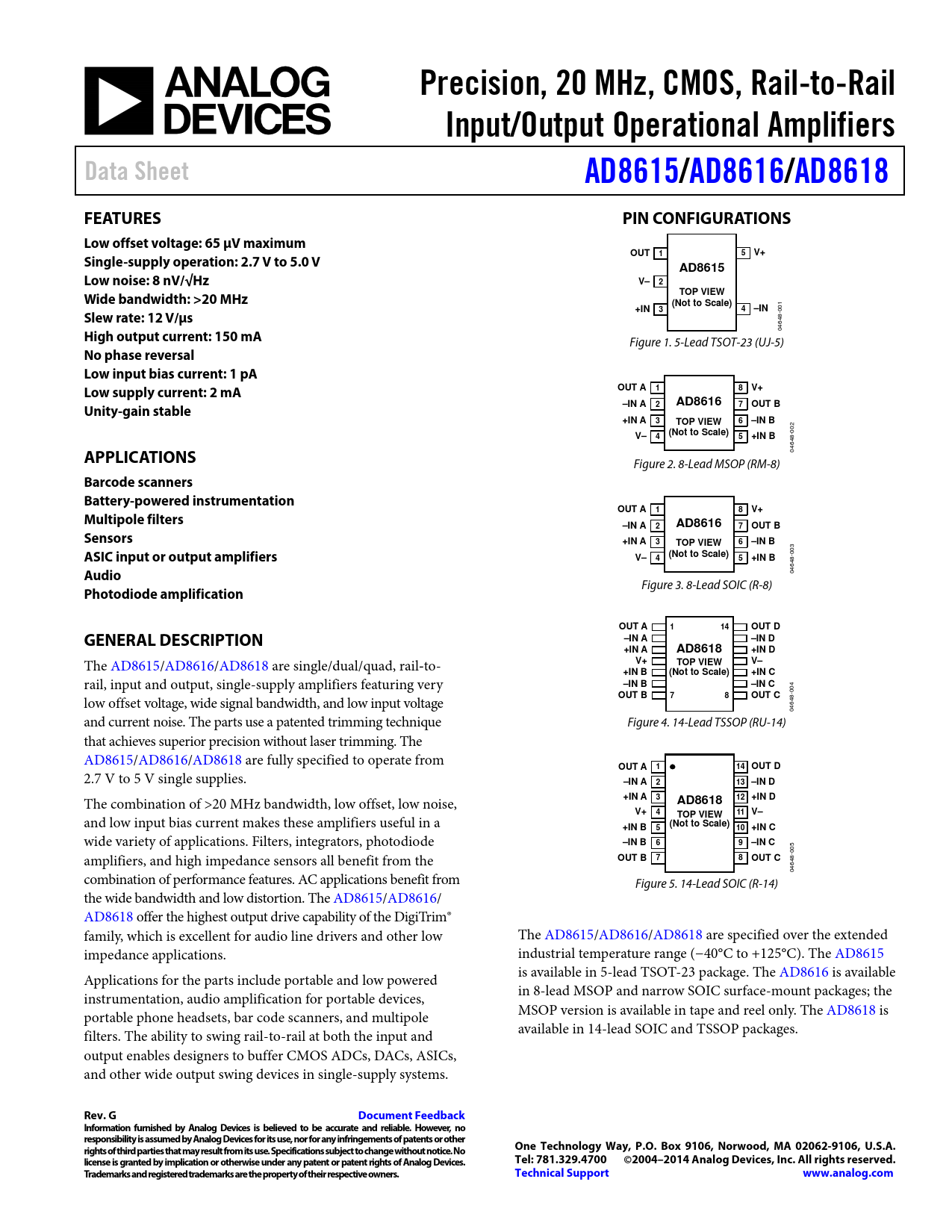

Precision, 20 MHz, CMOS, Rail-to-Rail. Input/Output Operational Amplifiers. Data Sheet. AD8615/. AD8616/. AD8618. FEATURES

Datasheet AD8615, AD8616, AD8618 Analog Devices, Revisión: G

Línea de modelo para esta hoja de datos

Versión de texto del documento

Precision, 20 MHz, CMOS, Rail-to-Rail Input/Output Operational Amplifiers Data Sheet AD8615/ AD8616/ AD8618 FEATURES PIN CONFIGURATIONS Low offset voltage: 65 μV maximum OUT 1 5 V+ Single-supply operation: 2.7 V to 5.0 V AD8615 Low noise: 8 nV/√Hz V– 2 TOP VIEW Wide bandwidth: >20 MHz (Not to Scale)
1
+IN 3 4 –IN
00
Slew rate: 12 V/μs
8- 64 04
High output current: 150 mA
Figure 1. 5-Lead TSOT-23 (UJ-5)
No phase reversal Low input bias current: 1 pA Low supply current: 2 mA OUT A 1 8 V+ –IN A 2 AD8616 7 OUT B Unity-gain stable +IN A 3 TOP VIEW 6 –IN B
2
V– (Not to Scale)
-00
4 5 +IN B
8 64 04
APPLICATIONS
Figure 2. 8-Lead MSOP (RM-8)
Barcode scanners Battery-powered instrumentation OUT A 1 8 V+ Multipole filters –IN A 2 AD8616 7 OUT B Sensors +IN A 3 TOP VIEW 6 –IN B
3
ASIC input or output amplifiers V– (Not to Scale)
-00
4 5 +IN B
648
Audio
04 Figure 3. 8-Lead SOIC (R-8)
Photodiode amplification OUT A 1 14 OUT D GENERAL DESCRIPTION –IN A –IN D +IN A AD8618 +IN D
The AD8615/AD8616/AD8618 are single/dual/quad, rail
-
to-
V+ TOP VIEW V– +IN B (Not to Scale) +IN C
rail, input and output, single-supply amplifiers featuring very
–IN B –IN C
04 0
OUT B 7 8 OUT C
low offset voltage, wide signal bandwidth, and low input voltage 48- 46 0 and current noise. The parts use a patented trimming technique Figure 4. 14-Lead TSSOP (RU-14) that achieves superior precision without laser trimming. The AD8615/AD8616/AD8618 are fully specified to operate from
OUT A 1 14 OUT D
2.7 V to 5 V single supplies.
–IN A 2 13 –IN D +IN A 3 12 +IN D
The combination of >20 MHz bandwidth, low offset, low noise,
AD8618 V+ 4 TOP VIEW 11 V–
and low input bias current makes these amplifiers useful in a
(Not to Scale) +IN B 5 10 +IN C
wide variety of applications. Filters, integrators, photodiode
–IN B 6 9 –IN C
5 00 amplifiers, and high impedance sensors all benefit from the
OUT B 7 8 OUT C
8- 64 04 combination of performance features. AC applications benefit from Figure 5. 14-Lead SOIC (R-14) the wide bandwidth and low distortion. The AD8615/AD8616/ AD8618 offer the highest output drive capability of the DigiTrim® family, which is excellent for audio line drivers and other low The AD8615/AD8616/AD8618 are specified over the extended impedance applications. industrial temperature range (−40°C to +125°C). The AD8615 is available in 5-lead TSOT-23 package. The AD8616 is available Applications for the parts include portable and low powered in 8-lead MSOP and narrow SOIC surface-mount packages; the instrumentation, audio amplification for portable devices, MSOP version is available in tape and reel only. The AD8618 is portable phone headsets, bar code scanners, and multipole available in 14-lead SOIC and TSSOP packages. filters. The ability to swing rail-to-rail at both the input and output enables designers to buffer CMOS ADCs, DACs, ASICs, and other wide output swing devices in single-supply systems.
Rev. G Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2004–2014 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline Features Applications General Description Pin Configuration Table of Contents Revision History Specifications Absolute Maximum Ratings Thermal Resistance ESD Caution Typical Performance Characteristics Applications Information Input Overvoltage Protection Output Phase Reversal Driving Capacitive Loads Overload Recovery Time D/A Conversion Low Noise Applications High Speed Photodiode Preamplifier Active Filters Power Dissipation Power Calculations for Varying or Unknown Loads Calculating Power by Measuring Ambient Temperature and Case Temperature Calculating Power by Measuring Supply Current Outline Dimensions Ordering Guide
