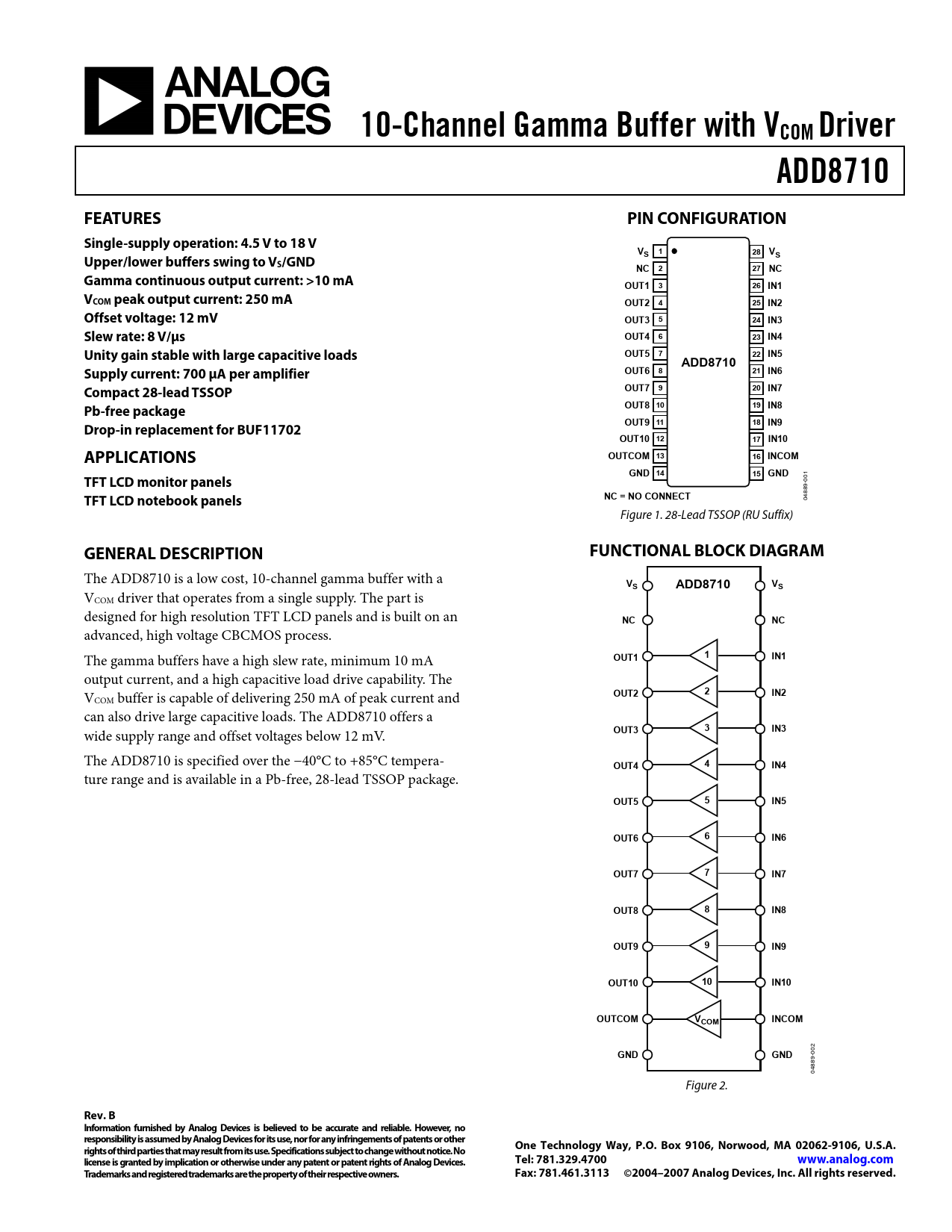

10-Channel Gamma Buffer with VCOM Driver ADD8710 FEATURES PIN CONFIGURATION Single-supply operation: 4.5 V to 18 V V 1 S 28 VS Upper/lower buffers swing to VS/GND NC 2 27 NC Gamma continuous output current: >10 mA OUT1 3 26 IN1 VCOM peak output current: 250 mA OUT2 4 25 IN2 Offset voltage: 12 mV OUT3 5 24 IN3 Slew rate: 8 V/μs OUT4 6 23 IN4 Unity gain stable with large capacitive loads OUT5 7 22 IN5 ADD8710 Supply current: 700 μA per amplifier OUT6 8 21 IN6 Compact 28-lead TSSOP OUT7 9 20 IN7 OUT8 10 19 IN8 Pb-free package OUT9 11 18 IN9 Drop-in replacement for BUF11702 OUT10 12 17 IN10 APPLICATIONS OUTCOM 13 16 INCOM GND 14 15 GND
01
TFT LCD monitor panels
-0 889
TFT LCD notebook panels NC = NO CONNECT
04 Figure 1. 28-Lead TSSOP (RU Suffix)
GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM
The ADD8710 is a low cost, 10-channel gamma buffer with a
VS ADD8710 VS
VCOM driver that operates from a single supply. The part is designed for high resolution TFT LCD panels and is built on an
NC NC
advanced, high voltage CBCMOS process. The gamma buffers have a high slew rate, minimum 10 mA
1 OUT1 IN1
output current, and a high capacitive load drive capability. The
2
V
OUT2 IN2
COM buffer is capable of delivering 250 mA of peak current and can also drive large capacitive loads. The ADD8710 offers a
OUT3 3 IN3
wide supply range and offset voltages below 12 mV. The ADD8710 is specified over the −40°C to +85°C tempera-
OUT4 4 IN4
ture range and is available in a Pb-free, 28-lead TSSOP package.
OUT5 5 IN5 OUT6 6 IN6 OUT7 7 IN7 OUT8 8 IN8 OUT9 9 IN9 OUT10 10 IN10 OUTCOM V INCOM COM
02
GND GND
0 9- 88 04 Figure 2.
