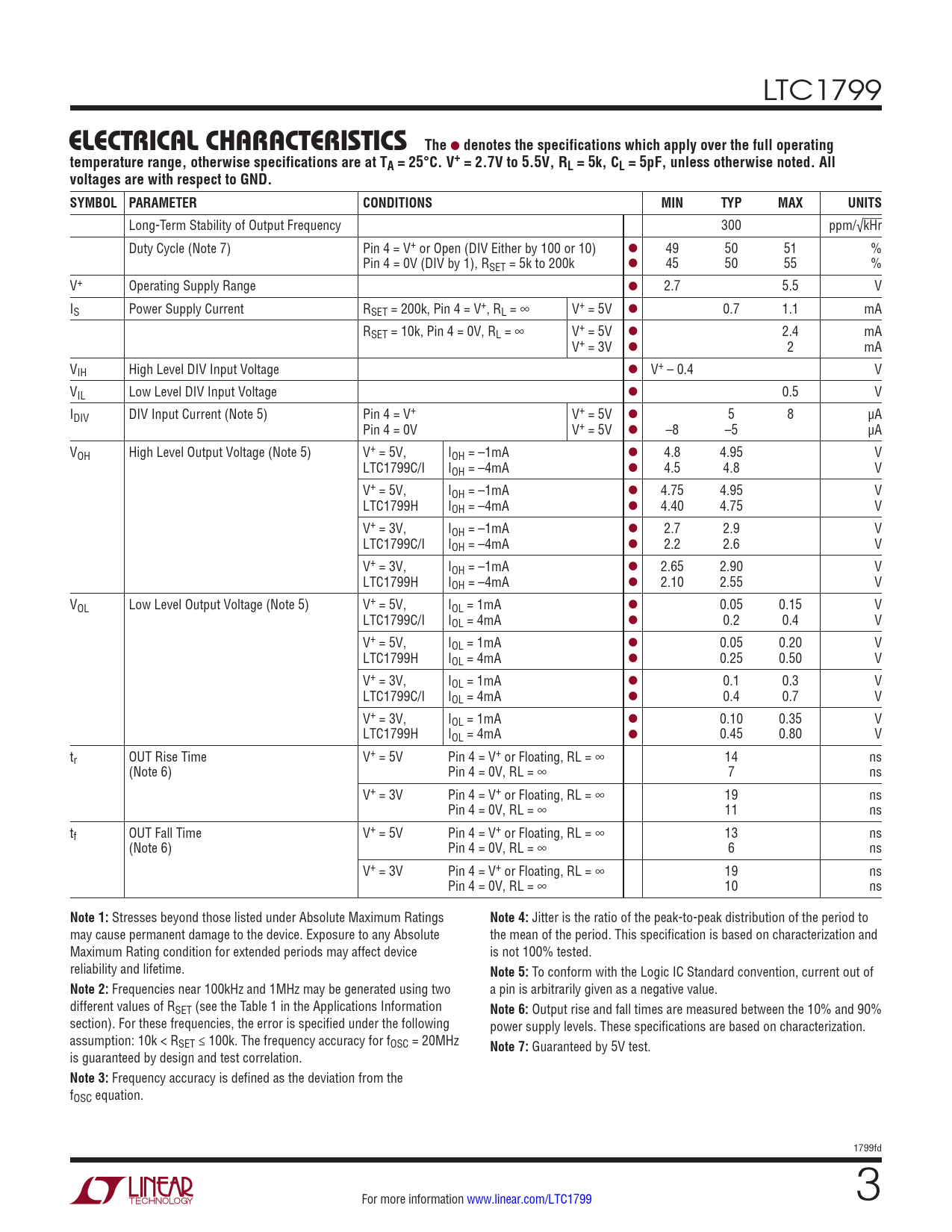

denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. V+ = 2.7V to 5.5V, RL = 5k, CL = 5pF, unless otherwise noted. All voltages are with respect to GND. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
Long-Term Stability of Output Frequency 300 ppm/√kHr Duty Cycle (Note 7) Pin 4 = V+ or Open (DIV Either by 100 or 10) l 49 50 51 % Pin 4 = 0V (DIV by 1), RSET = 5k to 200k l 45 50 55 % V+ Operating Supply Range l 2.7 5.5 V IS Power Supply Current RSET = 200k, Pin 4 = V+, RL = ∞ V+ = 5V l 0.7 1.1 mA RSET = 10k, Pin 4 = 0V, RL = ∞ V+ = 5V l 2.4 mA V+ = 3V l 2 mA VIH High Level DIV Input Voltage l V+ – 0.4 V VIL Low Level DIV Input Voltage l 0.5 V IDIV DIV Input Current (Note 5) Pin 4 = V+ V+ = 5V l 5 8 µA Pin 4 = 0V V+ = 5V l –8 –5 µA VOH High Level Output Voltage (Note 5) V+ = 5V, IOH = –1mA l 4.8 4.95 V LTC1799C/I IOH = –4mA l 4.5 4.8 V V+ = 5V, IOH = –1mA l 4.75 4.95 V LTC1799H IOH = –4mA l 4.40 4.75 V V+ = 3V, IOH = –1mA l 2.7 2.9 V LTC1799C/I IOH = –4mA l 2.2 2.6 V V+ = 3V, IOH = –1mA l 2.65 2.90 V LTC1799H IOH = –4mA l 2.10 2.55 V VOL Low Level Output Voltage (Note 5) V+ = 5V, IOL = 1mA l 0.05 0.15 V LTC1799C/I IOL = 4mA l 0.2 0.4 V V+ = 5V, IOL = 1mA l 0.05 0.20 V LTC1799H IOL = 4mA l 0.25 0.50 V V+ = 3V, IOL = 1mA l 0.1 0.3 V LTC1799C/I IOL = 4mA l 0.4 0.7 V V+ = 3V, IOL = 1mA l 0.10 0.35 V LTC1799H IOL = 4mA l 0.45 0.80 V tr OUT Rise Time V+ = 5V Pin 4 = V+ or Floating, RL = ∞ 14 ns (Note 6) Pin 4 = 0V, RL = ∞ 7 ns V+ = 3V Pin 4 = V+ or Floating, RL = ∞ 19 ns Pin 4 = 0V, RL = ∞ 11 ns tf OUT Fall Time V+ = 5V Pin 4 = V+ or Floating, RL = ∞ 13 ns (Note 6) Pin 4 = 0V, RL = ∞ 6 ns V+ = 3V Pin 4 = V+ or Floating, RL = ∞ 19 ns Pin 4 = 0V, RL = ∞ 10 ns
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 4:
Jitter is the ratio of the peak-to-peak distribution of the period to may cause permanent damage to the device. Exposure to any Absolute the mean of the period. This specification is based on characterization and Maximum Rating condition for extended periods may affect device is not 100% tested. reliability and lifetime.
Note 5:
To conform with the Logic IC Standard convention, current out of
Note 2:
Frequencies near 100kHz and 1MHz may be generated using two a pin is arbitrarily given as a negative value. different values of RSET (see the Table 1 in the Applications Information
Note 6:
Output rise and fall times are measured between the 10% and 90% section). For these frequencies, the error is specified under the following power supply levels. These specifications are based on characterization. assumption: 10k < RSET ≤ 100k. The frequency accuracy for fOSC = 20MHz
Note 7:
Guaranteed by 5V test. is guaranteed by design and test correlation.
Note 3:
Frequency accuracy is defined as the deviation from the fOSC equation. 1799fd For more information www.linear.com/LTC1799 3 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Theory of Operation Applications Information Typical Application Package Description Revision History Typical Applications
