Datasheet LTC2241-10 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | 10-Bit, 210Msps ADC |
| Páginas / Página | 28 / 5 — POWER REQUIREMENTS The. denotes the specifi cations which apply over the … |
| Formato / tamaño de archivo | PDF / 507 Kb |
| Idioma del documento | Inglés |

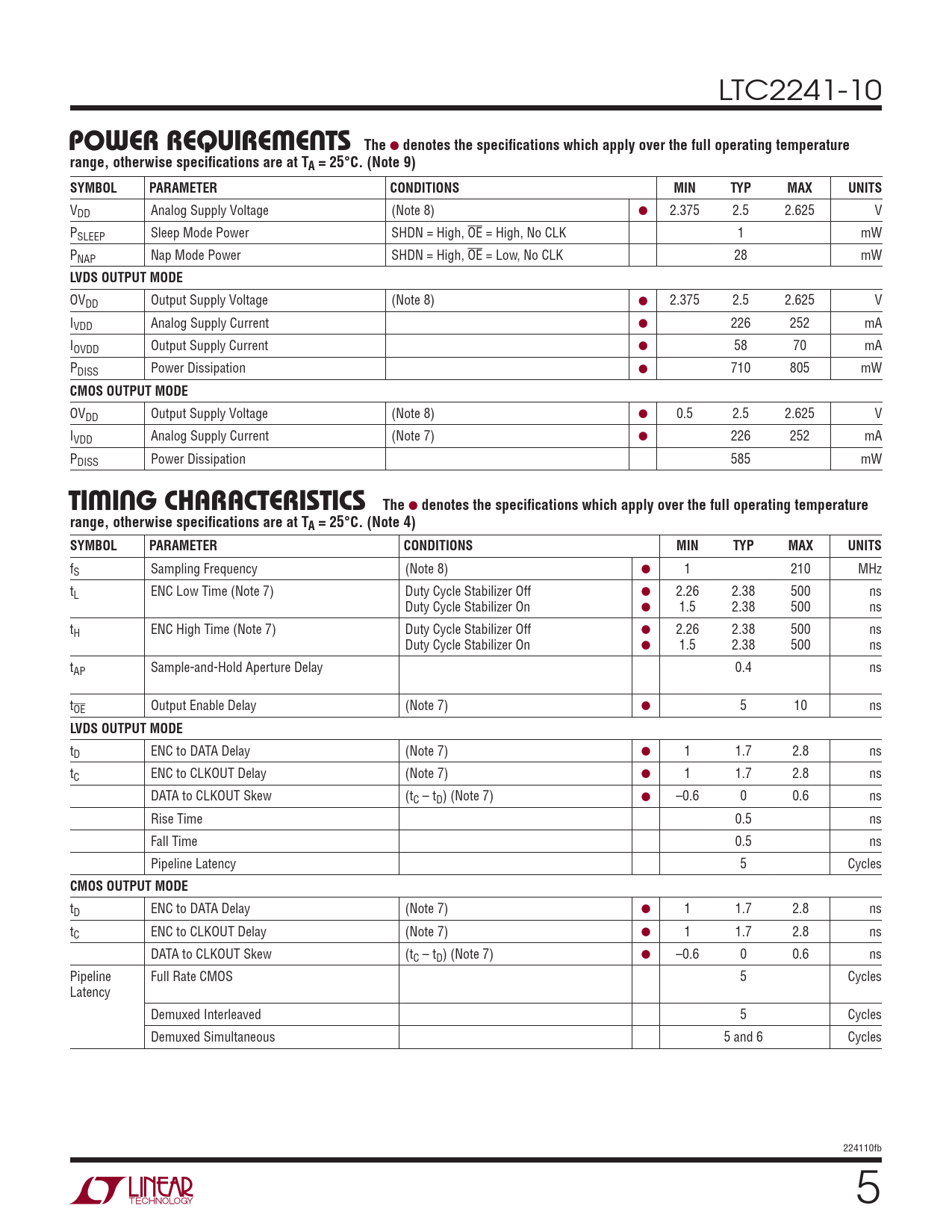

POWER REQUIREMENTS The. denotes the specifi cations which apply over the full operating temperature
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTC2241-10
POWER REQUIREMENTS The
●
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. (Note 9) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
V DD Analog Supply Voltage (Note 8) ● 2.375 2.5 2.625 V PSLEEP Sleep Mode Power SHDN = High, OE = High, No CLK 1 mW PNAP Nap Mode Power SHDN = High, OE = Low, No CLK 28 mW
LVDS OUTPUT MODE
OVDD Output Supply Voltage (Note 8) ● 2.375 2.5 2.625 V IVDD Analog Supply Current ● 226 252 mA IOVDD Output Supply Current ● 58 70 mA PDISS Power Dissipation ● 710 805 mW
CMOS OUTPUT MODE
OVDD Output Supply Voltage (Note 8) ● 0.5 2.5 2.625 V IVDD Analog Supply Current (Note 7) ● 226 252 mA PDISS Power Dissipation 585 mW
TIMING CHARACTERISTICS The
●
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. (Note 4) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
fS Sampling Frequency (Note 8) ● 1 210 MHz tL ENC Low Time (Note 7) Duty Cycle Stabilizer Off ● 2.26 2.38 500 ns Duty Cycle Stabilizer On ● 1.5 2.38 500 ns tH ENC High Time (Note 7) Duty Cycle Stabilizer Off ● 2.26 2.38 500 ns Duty Cycle Stabilizer On ● 1.5 2.38 500 ns tAP Sample-and-Hold Aperture Delay 0.4 ns tOE Output Enable Delay (Note 7) ● 5 10 ns
LVDS OUTPUT MODE
tD ENC to DATA Delay (Note 7) ● 1 1.7 2.8 ns tC ENC to CLKOUT Delay (Note 7) ● 1 1.7 2.8 ns DATA to CLKOUT Skew (tC – tD) (Note 7) ● –0.6 0 0.6 ns Rise Time 0.5 ns Fall Time 0.5 ns Pipeline Latency 5 Cycles
CMOS OUTPUT MODE
tD ENC to DATA Delay (Note 7) ● 1 1.7 2.8 ns tC ENC to CLKOUT Delay (Note 7) ● 1 1.7 2.8 ns DATA to CLKOUT Skew (tC – tD) (Note 7) ● –0.6 0 0.6 ns Pipeline Full Rate CMOS 5 Cycles Latency Demuxed Interleaved 5 Cycles Demuxed Simultaneous 5 and 6 Cycles 224110fb 5
