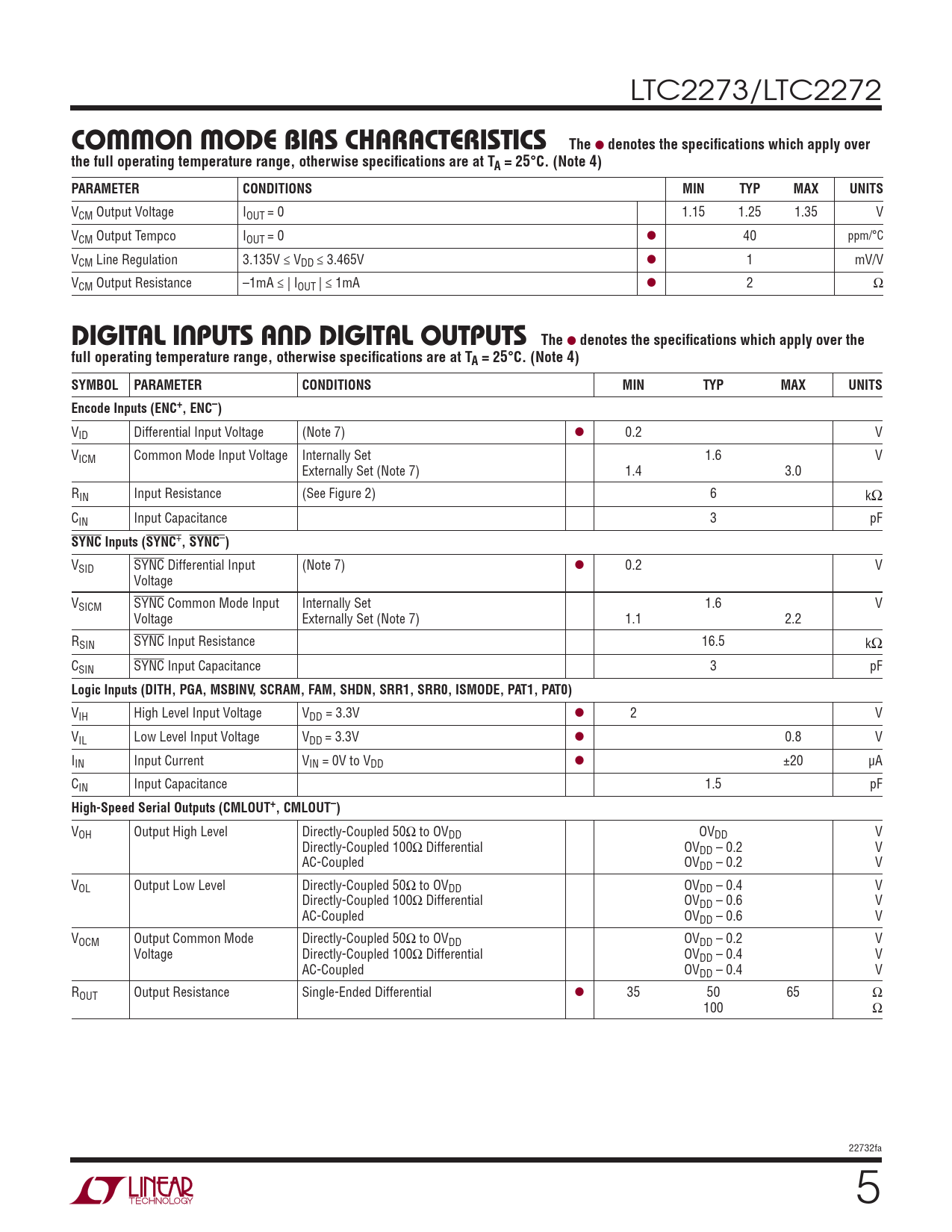

LTC2273/LTC2272
COMMON MODE BIAS CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. (Note 4) PARAMETER CONDITIONS MIN TYP MAX UNITS
VCM Output Voltage IOUT = 0 1.15 1.25 1.35 V VCM Output Tempco IOUT = 0 l 40 ppm/°C VCM Line Regulation 3.135V ≤ VDD ≤ 3.465V l 1 mV/V VCM Output Resistance –1mA ≤ | IOUT | ≤ 1mA l 2 Ω
