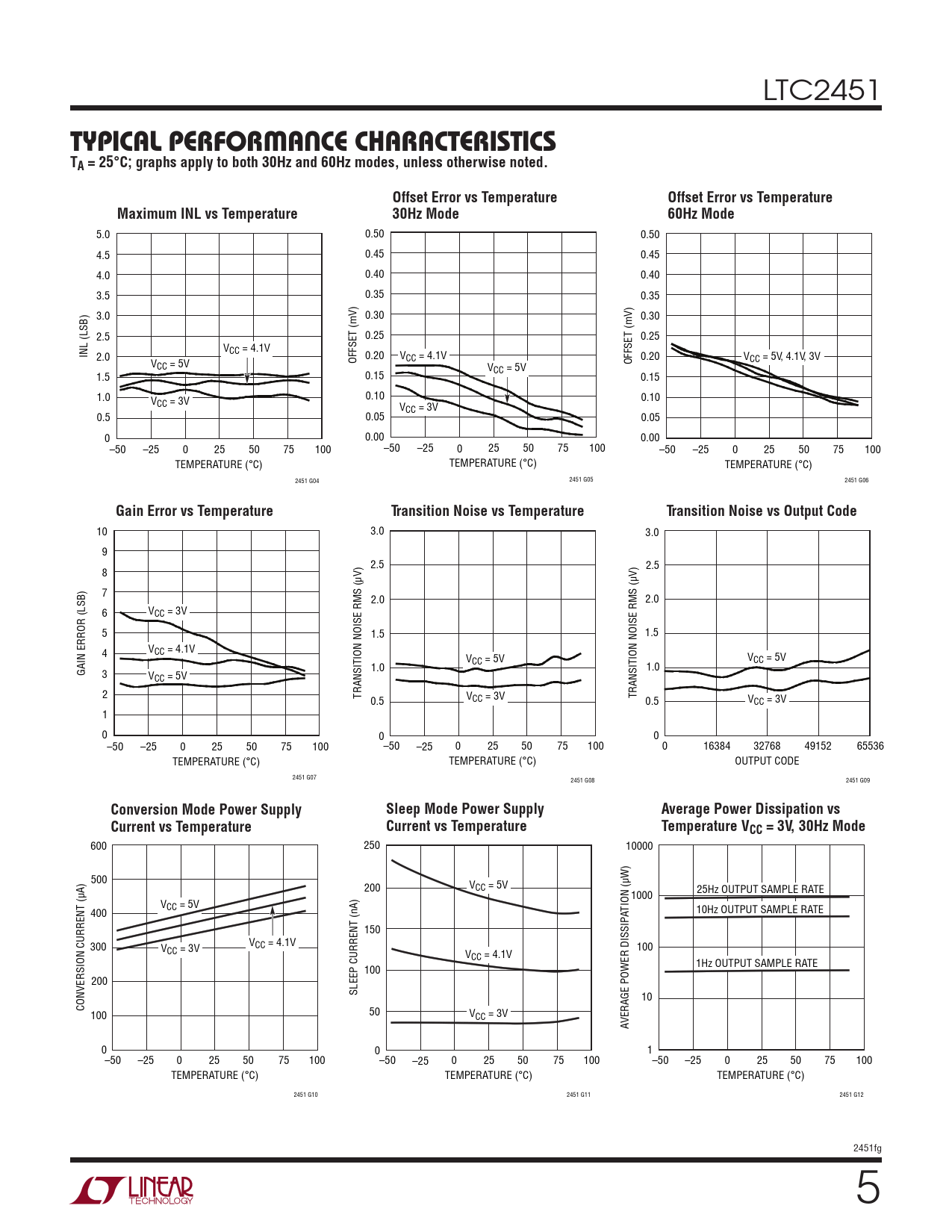

TYPICAL PERFORMANCE CHARACTERISTICS. TA = 25°C; graphs apply to both 30Hz and 60Hz modes, unless otherwise noted
