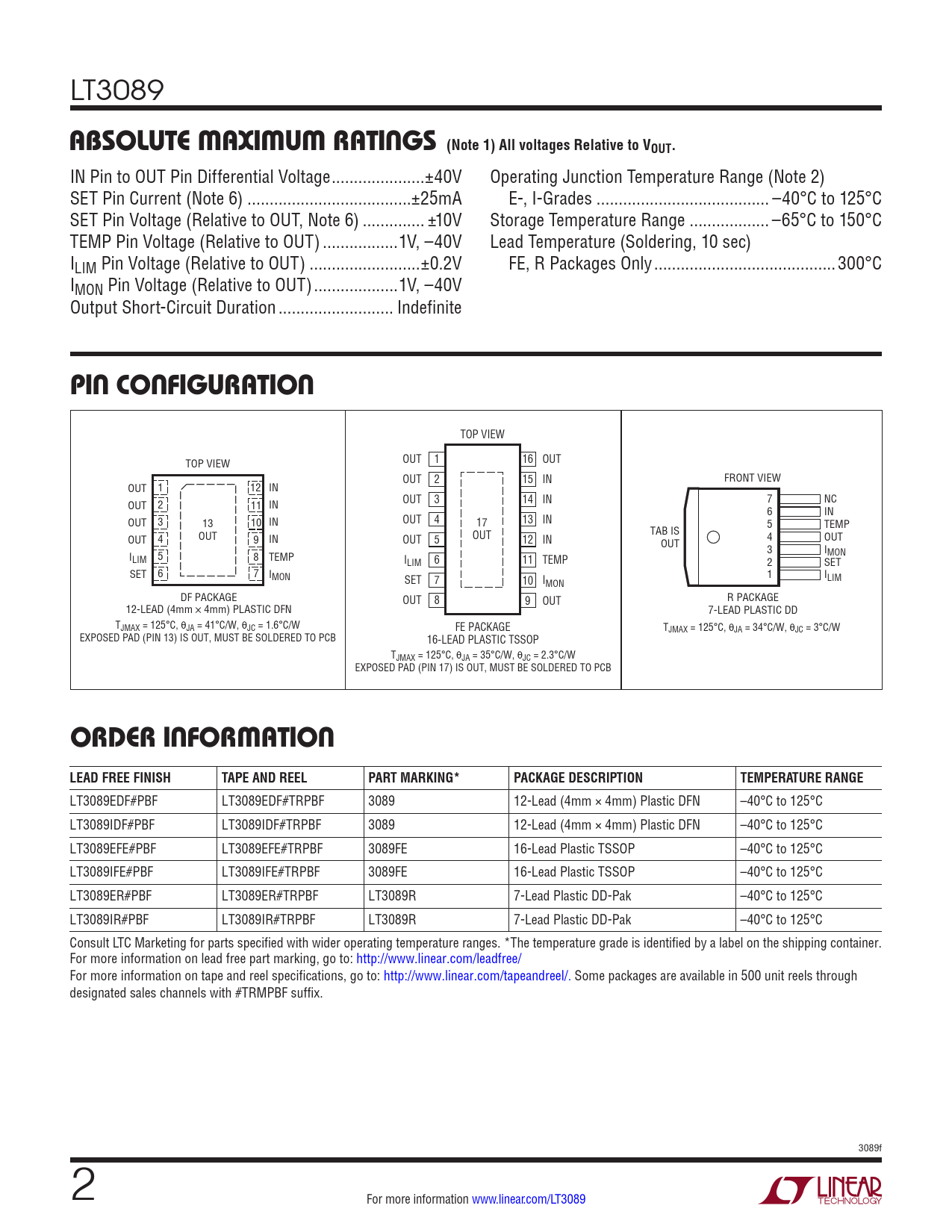

LT3089
ABSOLUTE MAXIMUM RATINGS (Note 1) All voltages Relative to VOUT.
IN Pin to OUT Pin Differential Voltage ...±40V Operating Junction Temperature Range (Note 2) SET Pin Current (Note 6) ...±25mA E-, I-Grades ... –40°C to 125°C SET Pin Voltage (Relative to OUT, Note 6) .. ±10V Storage Temperature Range .. –65°C to 150°C TEMP Pin Voltage (Relative to OUT) ...1V, –40V Lead Temperature (Soldering, 10 sec) ILIM Pin Voltage (Relative to OUT) ...±0.2V FE, R Packages Only ...300°C IMON Pin Voltage (Relative to OUT) ...1V, –40V Output Short-Circuit Duration .. Indefinite
PIN CONFIGURATION
TOP VIEW TOP VIEW OUT 1 16 OUT OUT 2 15 IN FRONT VIEW OUT 1 12 IN OUT 2 11 IN OUT 3 14 IN 7 NC 6 IN OUT 3 13 10 IN OUT 4 13 IN 17 5 TEMP OUT TAB IS OUT 4 9 IN OUT 5 OUT 12 IN 4 OUT OUT 3 I I 5 MON LIM 8 TEMP ILIM 6 11 TEMP 2 SET SET 6 7 IMON SET 7 10 I 1 ILIM MON DF PACKAGE OUT 8 9 OUT R PACKAGE 12-LEAD (4mm × 4mm) PLASTIC DFN 7-LEAD PLASTIC DD TJMAX = 125°C, θJA = 41°C/W, θJC = 1.6°C/W FE PACKAGE TJMAX = 125°C, θJA = 34°C/W, θJC = 3°C/W EXPOSED PAD (PIN 13) IS OUT, MUST BE SOLDERED TO PCB 16-LEAD PLASTIC TSSOP TJMAX = 125°C, θJA = 35°C/W, θJC = 2.3°C/W EXPOSED PAD (PIN 17) IS OUT, MUST BE SOLDERED TO PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3089EDF#PBF LT3089EDF#TRPBF 3089 12-Lead (4mm × 4mm) Plastic DFN –40°C to 125°C LT3089IDF#PBF LT3089IDF#TRPBF 3089 12-Lead (4mm × 4mm) Plastic DFN –40°C to 125°C LT3089EFE#PBF LT3089EFE#TRPBF 3089FE 16-Lead Plastic TSSOP –40°C to 125°C LT3089IFE#PBF LT3089IFE#TRPBF 3089FE 16-Lead Plastic TSSOP –40°C to 125°C LT3089ER#PBF LT3089ER#TRPBF LT3089R 7-Lead Plastic DD-Pak –40°C to 125°C LT3089IR#PBF LT3089IR#TRPBF LT3089R 7-Lead Plastic DD-Pak –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. 3089f 2 For more information www.linear.com/LT3089 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
