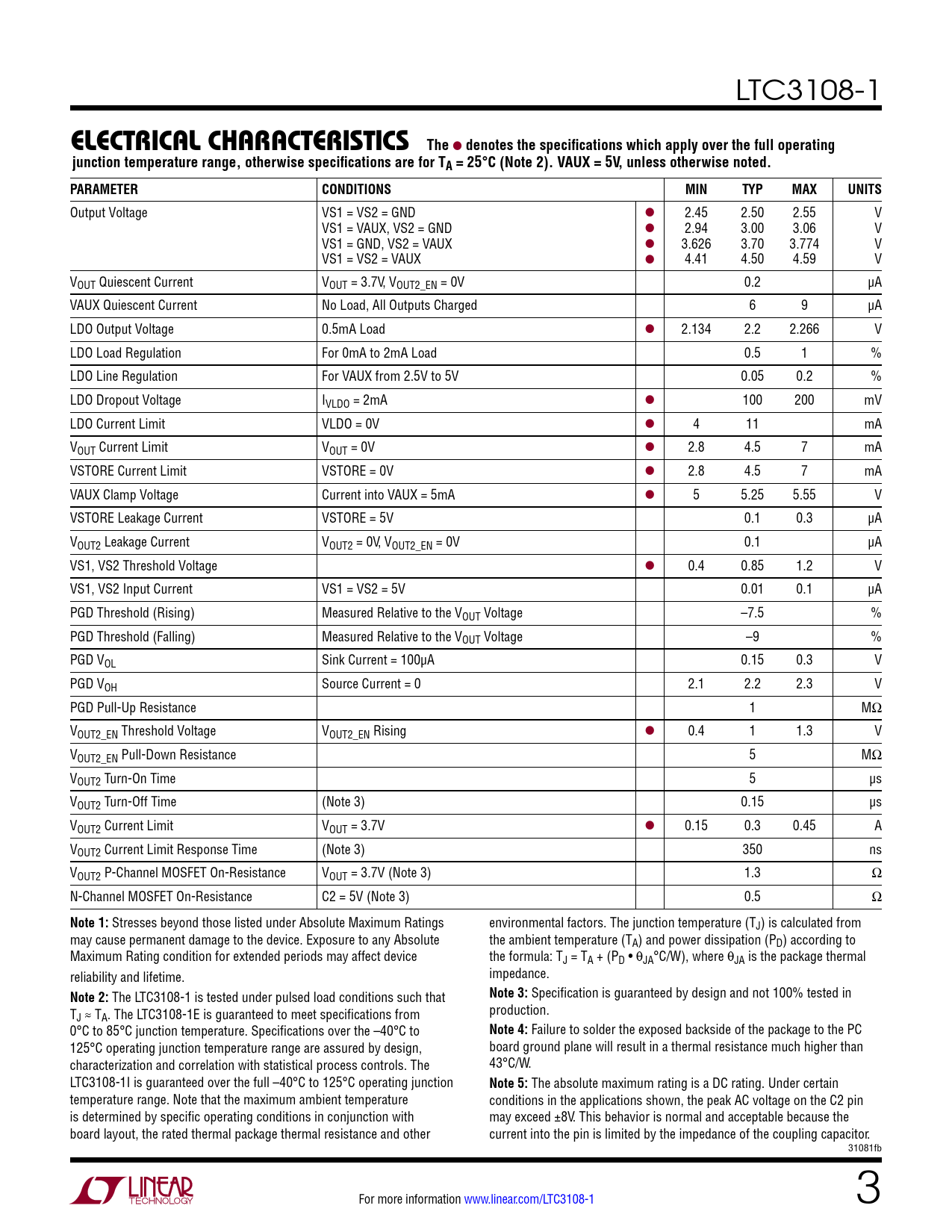

elecTrical characTerisTics. The. denotes the specifications which apply over the full operating

elecTrical characTerisTics The denotes the specifications which apply over the full operating

Línea de modelo para esta hoja de datos

Versión de texto del documento

LTC3108-1
elecTrical characTerisTics The
l
denotes the specifications which apply over the full operating junction temperature range, otherwise specifications are for TA = 25°C (Note 2). VAUX = 5V, unless otherwise noted. PARAMETER CONDITIONS MIN TYP MAX UNITS
Output Voltage VS1 = VS2 = GND l 2.45 2.50 2.55 V VS1 = VAUX, VS2 = GND l 2.94 3.00 3.06 V VS1 = GND, VS2 = VAUX l 3.626 3.70 3.774 V VS1 = VS2 = VAUX l 4.41 4.50 4.59 V VOUT Quiescent Current VOUT = 3.7V, VOUT2_EN = 0V 0.2 µA VAUX Quiescent Current No Load, All Outputs Charged 6 9 µA LDO Output Voltage 0.5mA Load l 2.134 2.2 2.266 V LDO Load Regulation For 0mA to 2mA Load 0.5 1 % LDO Line Regulation For VAUX from 2.5V to 5V 0.05 0.2 % LDO Dropout Voltage IVLDO = 2mA l 100 200 mV LDO Current Limit VLDO = 0V l 4 11 mA VOUT Current Limit VOUT = 0V l 2.8 4.5 7 mA VSTORE Current Limit VSTORE = 0V l 2.8 4.5 7 mA VAUX Clamp Voltage Current into VAUX = 5mA l 5 5.25 5.55 V VSTORE Leakage Current VSTORE = 5V 0.1 0.3 µA VOUT2 Leakage Current VOUT2 = 0V, VOUT2_EN = 0V 0.1 µA VS1, VS2 Threshold Voltage l 0.4 0.85 1.2 V VS1, VS2 Input Current VS1 = VS2 = 5V 0.01 0.1 µA PGD Threshold (Rising) Measured Relative to the VOUT Voltage –7.5 % PGD Threshold (Falling) Measured Relative to the VOUT Voltage –9 % PGD VOL Sink Current = 100µA 0.15 0.3 V PGD VOH Source Current = 0 2.1 2.2 2.3 V PGD Pull-Up Resistance 1 MΩ VOUT2_EN Threshold Voltage VOUT2_EN Rising l 0.4 1 1.3 V VOUT2_EN Pull-Down Resistance 5 MΩ VOUT2 Turn-On Time 5 µs VOUT2 Turn-Off Time (Note 3) 0.15 µs VOUT2 Current Limit VOUT = 3.7V l 0.15 0.3 0.45 A VOUT2 Current Limit Response Time (Note 3) 350 ns VOUT2 P-Channel MOSFET On-Resistance VOUT = 3.7V (Note 3) 1.3 Ω N-Channel MOSFET On-Resistance C2 = 5V (Note 3) 0.5 Ω
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings environmental factors. The junction temperature (TJ) is calculated from may cause permanent damage to the device. Exposure to any Absolute the ambient temperature (TA) and power dissipation (PD) according to Maximum Rating condition for extended periods may affect device the formula: TJ = TA + (PD • θJA°C/W), where θJA is the package thermal reliability and lifetime. impedance.
Note 2:
The LTC3108-1 is tested under pulsed load conditions such that
Note 3:
Specification is guaranteed by design and not 100% tested in T production. J ≈ TA. The LTC3108-1E is guaranteed to meet specifications from 0°C to 85°C junction temperature. Specifications over the –40°C to
Note 4:
Failure to solder the exposed backside of the package to the PC 125°C operating junction temperature range are assured by design, board ground plane will result in a thermal resistance much higher than characterization and correlation with statistical process controls. The 43°C/W. LTC3108-1I is guaranteed over the full –40°C to 125°C operating junction
Note 5:
The absolute maximum rating is a DC rating. Under certain temperature range. Note that the maximum ambient temperature conditions in the applications shown, the peak AC voltage on the C2 pin is determined by specific operating conditions in conjunction with may exceed ±8V. This behavior is normal and acceptable because the board layout, the rated thermal package thermal resistance and other current into the pin is limited by the impedance of the coupling capacitor. 31081fb For more information www.linear.com/LTC3108-1 3 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration order information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Typical Application Related Parts
