| Descripción | 15V, 1.5A Synchronous Step-Up DC/DC Converter with Output Disconnect |
| Páginas / Página | 26 / 4 — Typical perForMance characTerisTics. Configured as front page application … |
| Formato / tamaño de archivo | PDF / 973 Kb |
| Idioma del documento | Inglés |

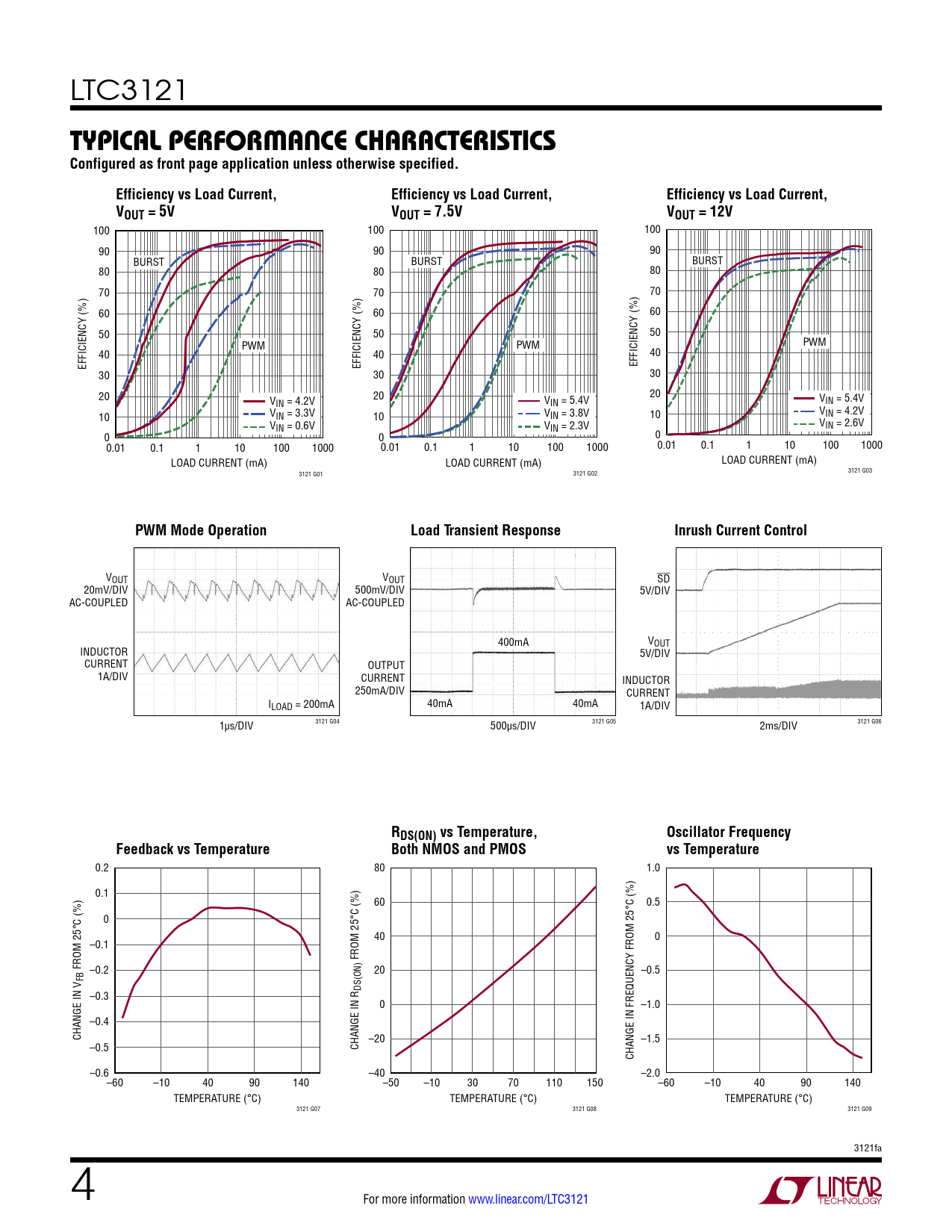

Typical perForMance characTerisTics. Configured as front page application unless otherwise specified
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTC3121
Typical perForMance characTerisTics Configured as front page application unless otherwise specified. Efficiency vs Load Current, Efficiency vs Load Current, Efficiency vs Load Current, VOUT = 5V VOUT = 7.5V VOUT = 12V
100 100 100 90 90 90 BURST BURST BURST 80 80 80 70 70 70 60 60 60 50 50 50 PWM PWM PWM 40 40 40 EFFICIENCY (%) EFFICIENCY (%) EFFICIENCY (%) 30 30 30 20 20 20 VIN = 4.2V V VIN = 5.4V IN = 5.4V 10 VIN = 3.3V 10 VIN = 3.8V 10 VIN = 4.2V V V V IN = 0.6V IN = 2.6V IN = 2.3V 0 0 0 0.01 0.1 1 10 100 1000 0.01 0.1 1 10 100 1000 0.01 0.1 1 10 100 1000 LOAD CURRENT (mA) LOAD CURRENT (mA) LOAD CURRENT (mA) 3121 G01 3121 G03 3121 G02
