Datasheet LTC3109 (Analog Devices) - 3

FabricanteAnalog Devices
DescripciónAuto-Polarity, Ultralow Voltage Step-Up Converter and Power Manager
Páginas / Página24 / 3 — elecTrical characTerisTics. The. denotes the specifications which apply …
Formato / tamaño de archivoPDF / 424 Kb
Idioma del documentoInglés

elecTrical characTerisTics. The. denotes the specifications which apply over the full operating

elecTrical characTerisTics The denotes the specifications which apply over the full operating

Línea de modelo para esta hoja de datos

Versión de texto del documento

LTC3109
elecTrical characTerisTics The
l

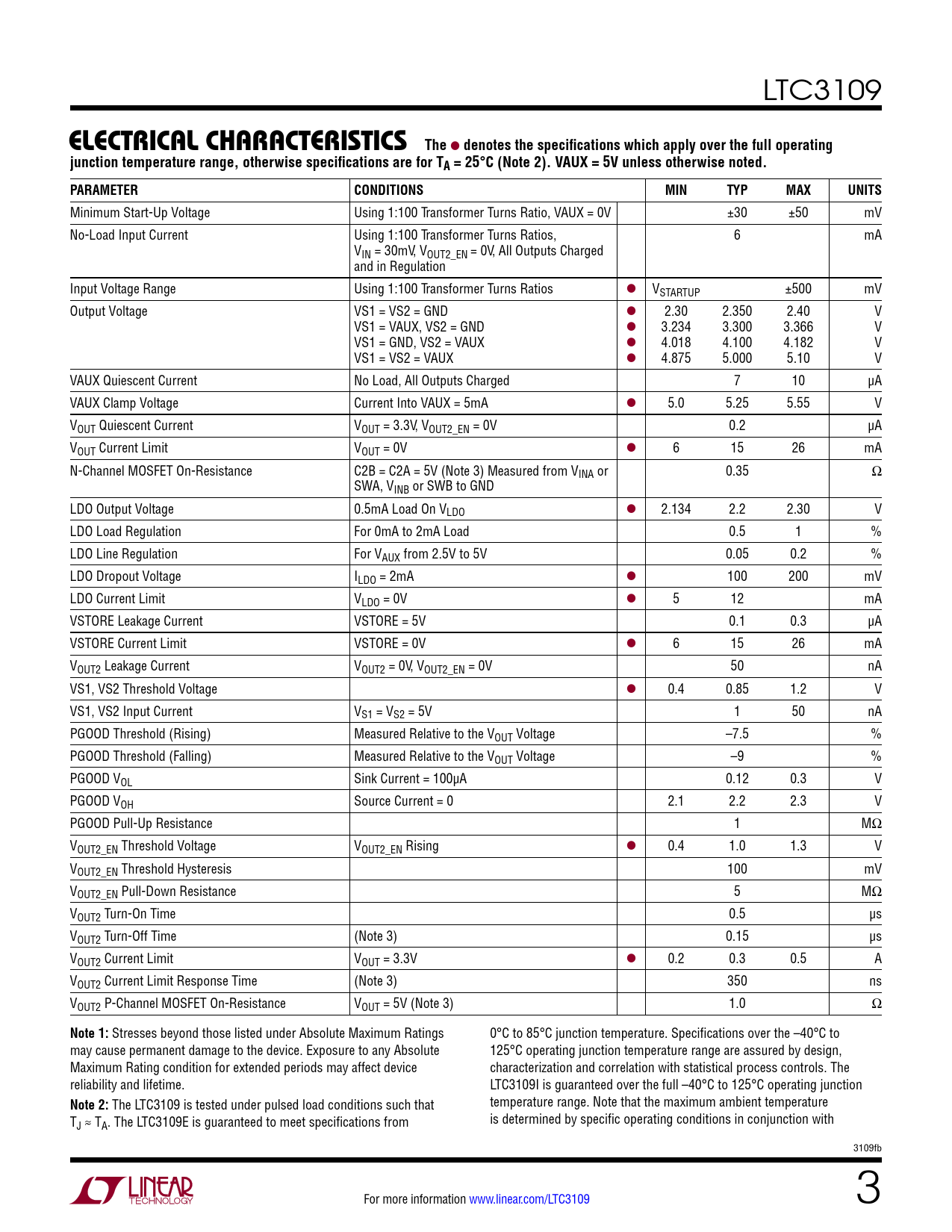

denotes the specifications which apply over the full operating junction temperature range, otherwise specifications are for TA = 25°C (Note 2). VAUX = 5V unless otherwise noted. PARAMETER CONDITIONS MIN TYP MAX UNITS
Minimum Start-Up Voltage Using 1:100 Transformer Turns Ratio, VAUX = 0V ±30 ±50 mV No-Load Input Current Using 1:100 Transformer Turns Ratios, 6 mA VIN = 30mV, VOUT2_EN = 0V, All Outputs Charged and in Regulation Input Voltage Range Using 1:100 Transformer Turns Ratios l VSTARTUP ±500 mV Output Voltage VS1 = VS2 = GND l 2.30 2.350 2.40 V VS1 = VAUX, VS2 = GND l 3.234 3.300 3.366 V VS1 = GND, VS2 = VAUX l 4.018 4.100 4.182 V VS1 = VS2 = VAUX l 4.875 5.000 5.10 V VAUX Quiescent Current No Load, All Outputs Charged 7 10 µA VAUX Clamp Voltage Current Into VAUX = 5mA l 5.0 5.25 5.55 V VOUT Quiescent Current VOUT = 3.3V, VOUT2_EN = 0V 0.2 µA VOUT Current Limit VOUT = 0V l 6 15 26 mA N-Channel MOSFET On-Resistance C2B = C2A = 5V (Note 3) Measured from VINA or 0.35 Ω SWA, VINB or SWB to GND LDO Output Voltage 0.5mA Load On VLDO l 2.134 2.2 2.30 V LDO Load Regulation For 0mA to 2mA Load 0.5 1 % LDO Line Regulation For VAUX from 2.5V to 5V 0.05 0.2 % LDO Dropout Voltage ILDO = 2mA l 100 200 mV LDO Current Limit VLDO = 0V l 5 12 mA VSTORE Leakage Current VSTORE = 5V 0.1 0.3 µA VSTORE Current Limit VSTORE = 0V l 6 15 26 mA VOUT2 Leakage Current VOUT2 = 0V, VOUT2_EN = 0V 50 nA VS1, VS2 Threshold Voltage l 0.4 0.85 1.2 V VS1, VS2 Input Current VS1 = VS2 = 5V 1 50 nA PGOOD Threshold (Rising) Measured Relative to the VOUT Voltage –7.5 % PGOOD Threshold (Falling) Measured Relative to the VOUT Voltage –9 % PGOOD VOL Sink Current = 100µA 0.12 0.3 V PGOOD VOH Source Current = 0 2.1 2.2 2.3 V PGOOD Pull-Up Resistance 1 MΩ VOUT2_EN Threshold Voltage VOUT2_EN Rising l 0.4 1.0 1.3 V VOUT2_EN Threshold Hysteresis 100 mV VOUT2_EN Pull-Down Resistance 5 MΩ VOUT2 Turn-On Time 0.5 µs VOUT2 Turn-Off Time (Note 3) 0.15 µs VOUT2 Current Limit VOUT = 3.3V l 0.2 0.3 0.5 A VOUT2 Current Limit Response Time (Note 3) 350 ns VOUT2 P-Channel MOSFET On-Resistance VOUT = 5V (Note 3) 1.0 Ω
