8-Channel, 16-Bit, Simultaneous Sampling. ADC with Power Scaling, 110.8 kHz BW. Data Sheet. AD7761. FEATURES

Datasheet AD7761 Analog Devices, Revisión: A

Línea de modelo para esta hoja de datos

Versión de texto del documento

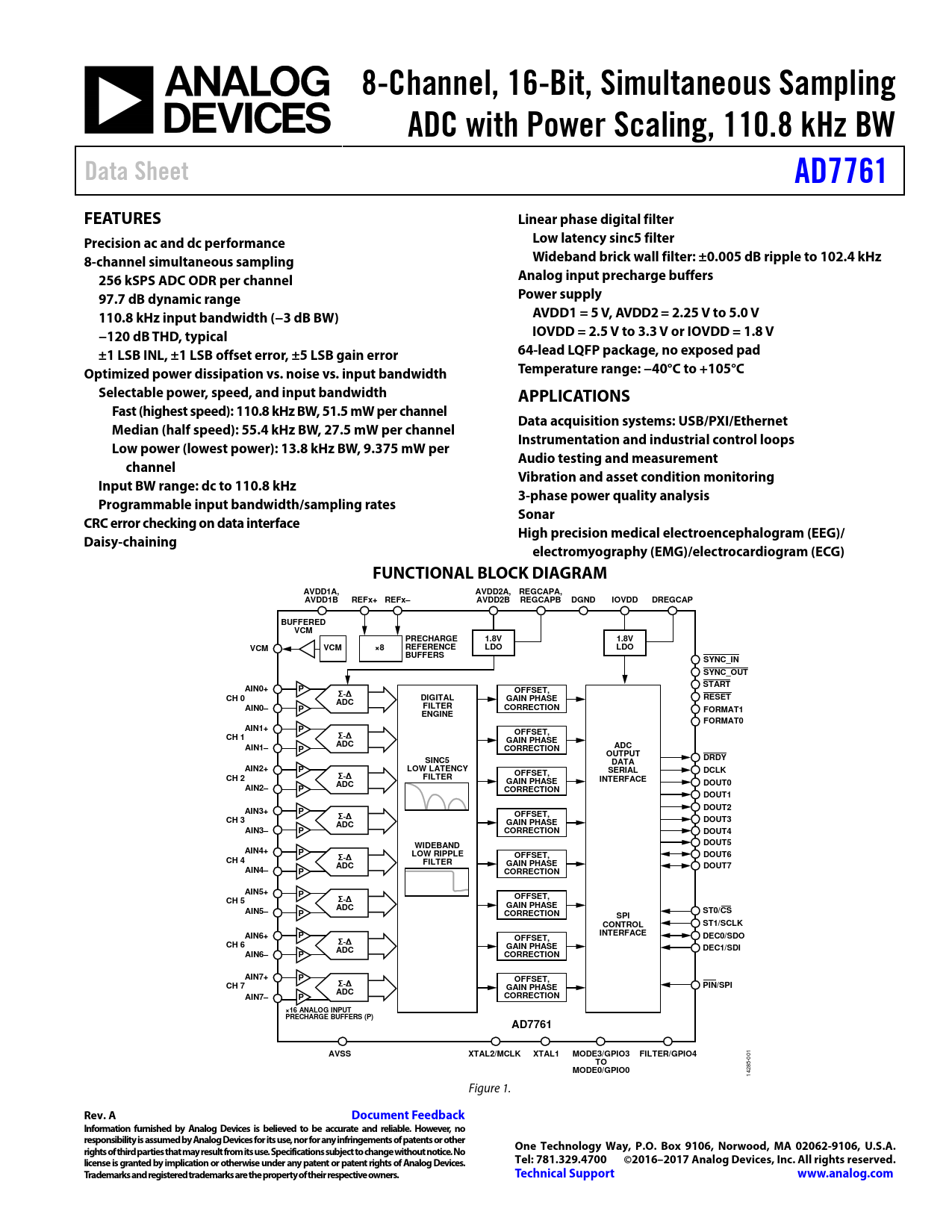

8-Channel, 16-Bit, Simultaneous Sampling ADC with Power Scaling, 110.8 kHz BW Data Sheet AD7761 FEATURES Linear phase digital filter Precision ac and dc performance Low latency sinc5 filter 8-channel simultaneous sampling Wideband brick wall filter: ±0.005 dB ripple to 102.4 kHz 256 kSPS ADC ODR per channel Analog input precharge buffers 97.7 dB dynamic range Power supply 110.8 kHz input bandwidth (−3 dB BW) AVDD1 = 5 V, AVDD2 = 2.25 V to 5.0 V −120 dB THD, typical IOVDD = 2.5 V to 3.3 V or IOVDD = 1.8 V ±1 LSB INL, ±1 LSB offset error, ±5 LSB gain error 64-lead LQFP package, no exposed pad Optimized power dissipation vs. noise vs. input bandwidth Temperature range: −40°C to +105°C Selectable power, speed, and input bandwidth APPLICATIONS Fast (highest speed): 110.8 kHz BW, 51.5 mW per channel Data acquisition systems: USB/PXI/Ethernet Median (half speed): 55.4 kHz BW, 27.5 mW per channel Instrumentation and industrial control loops Low power (lowest power): 13.8 kHz BW, 9.375 mW per Audio testing and measurement channel Vibration and asset condition monitoring Input BW range: dc to 110.8 kHz 3-phase power quality analysis Programmable input bandwidth/sampling rates Sonar CRC error checking on data interface High precision medical electroencephalogram (EEG)/ Daisy-chaining electromyography (EMG)/electrocardiogram (ECG) FUNCTIONAL BLOCK DIAGRAM AVDD1A, AVDD2A, REGCAPA, AVDD1B REFx+ REFx– AVDD2B REGCAPB DGND IOVDD DREGCAP BUFFERED VCM PRECHARGE 1.8V 1.8V VCM ×8 REFERENCE LDO LDO VCM BUFFERS SYNC_IN SYNC_OUT START AIN0+ P Σ-Δ OFFSET, CH 0 DIGITAL RESET ADC GAIN PHASE FILTER AIN0– P CORRECTION FORMAT1 ENGINE FORMAT0 AIN1+ P OFFSET, CH 1 Σ-Δ ADC GAIN PHASE ADC AIN1– P CORRECTION OUTPUT SINC5 DRDY DATA AIN2+ P LOW LATENCY SERIAL DCLK OFFSET, CH 2 Σ-Δ FILTER INTERFACE ADC GAIN PHASE DOUT0 AIN2– P CORRECTION DOUT1 AIN3+ DOUT2 P Σ-Δ OFFSET, CH 3 DOUT3 ADC GAIN PHASE AIN3– P CORRECTION DOUT4 WIDEBAND DOUT5 AIN4+ P LOW RIPPLE OFFSET, DOUT6 CH 4 Σ-Δ FILTER ADC GAIN PHASE DOUT7 AIN4– P CORRECTION AIN5+ P OFFSET, CH 5 Σ-Δ GAIN PHASE AIN5– ADC ST0/CS P CORRECTION SPI CONTROL ST1/SCLK INTERFACE AIN6+ P DEC0/SDO Σ-Δ OFFSET, CH 6 GAIN PHASE DEC1/SDI ADC AIN6– P CORRECTION AIN7+ P OFFSET, CH 7 Σ-Δ PIN/SPI GAIN PHASE ADC AIN7– P CORRECTION ×16 ANALOG INPUT PRECHARGE BUFFERS (P) AD7761 AVSS XTAL2/MCLK XTAL1 MODE3/GPIO3 FILTER/GPIO4
