Descripción14-Bit, 170 MSPS/250 MSPS, JESD204B, Dual Analog-to-Digital Converter
Páginas / Página45 / 1 — 14-Bit, 170 MSPS/250 MSPS, JESD204B,. Dual Analog-to-Digital Converter. …
RevisiónE
Formato / tamaño de archivoPDF / 1.5 Mb
Idioma del documentoInglés

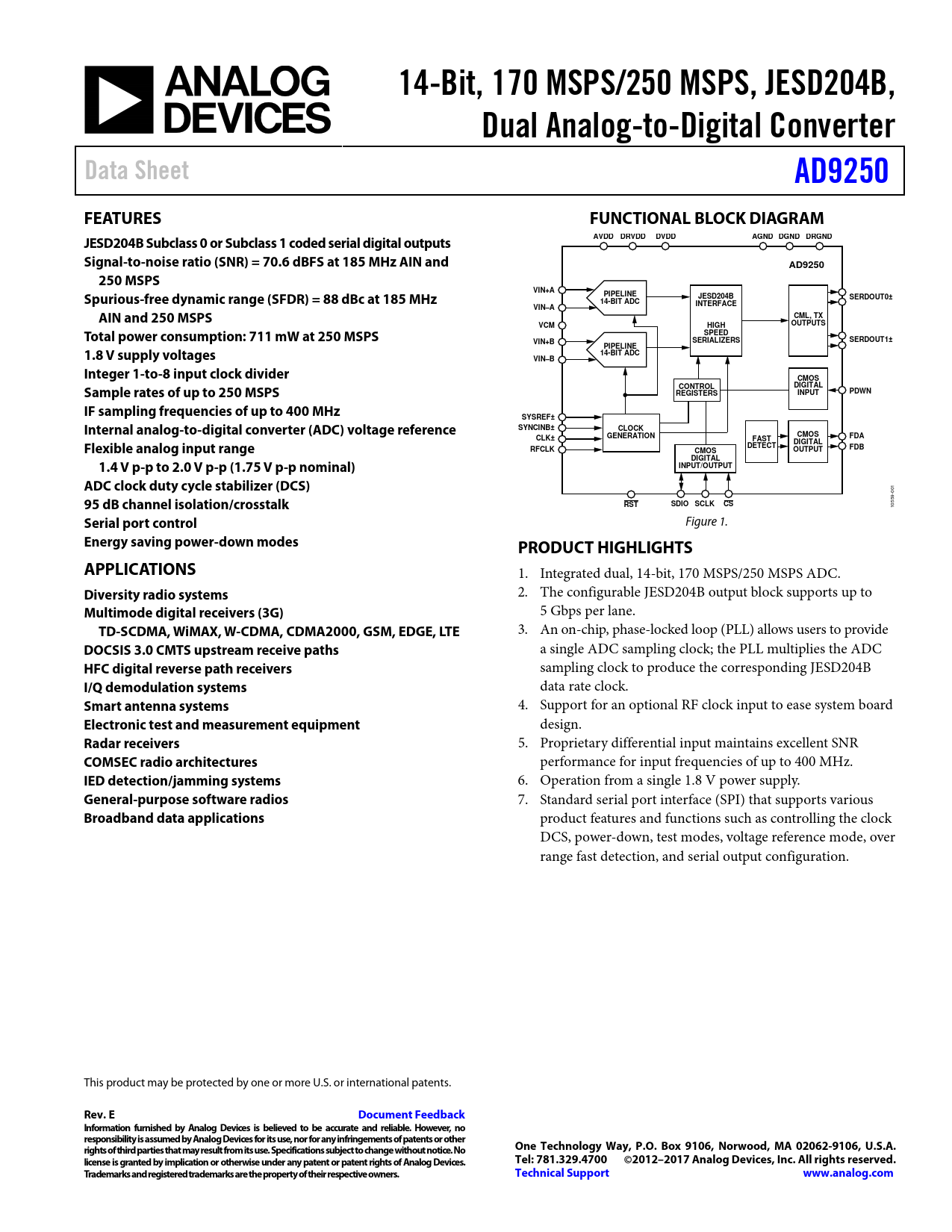

14-Bit, 170 MSPS/250 MSPS, JESD204B,. Dual Analog-to-Digital Converter. Data Sheet. AD9250. FEATURES. FUNCTIONAL BLOCK DIAGRAM

Datasheet AD9250 Analog Devices, Revisión: E

Línea de modelo para esta hoja de datos

Versión de texto del documento

14-Bit, 170 MSPS/250 MSPS, JESD204B, Dual Analog-to-Digital Converter Data Sheet AD9250 FEATURES FUNCTIONAL BLOCK DIAGRAM JESD204B Subclass 0 or Subclass 1 coded serial digital outputs AVDD DRVDD DVDD AGND DGND DRGND Signal-to-noise ratio (SNR) = 70.6 dBFS at 185 MHz AIN and AD9250 250 MSPS VIN+A Spurious-free dynamic range (SFDR) = 88 dBc at 185 MHz PIPELINE JESD204B SERDOUT0± 14-BIT ADC INTERFACE VIN–A AIN and 250 MSPS CML, TX OUTPUTS VCM HIGH Total power consumption: 711 mW at 250 MSPS SPEED SERIALIZERS SERDOUT1± VIN+B PIPELINE 1.8 V supply voltages 14-BIT ADC VIN–B Integer 1-to-8 input clock divider CMOS Sample rates of up to 250 MSPS CONTROL DIGITAL REGISTERS INPUT PDWN IF sampling frequencies of up to 400 MHz SYSREF± Internal analog-to-digital converter (ADC) voltage reference SYNCINB± CLOCK GENERATION CMOS CLK± FAST FDA Flexible analog input range DIGITAL DETECT RFCLK OUTPUT FDB CMOS DIGITAL 1.4 V p-p to 2.0 V p-p (1.75 V p-p nominal) INPUT/OUTPUT ADC clock duty cycle stabilizer (DCS)
001
95 dB channel isolation/crosstalk RST SDIO SCLK CS
10559-
Serial port control
Figure 1.
Energy saving power-down modes PRODUCT HIGHLIGHTS APPLICATIONS
1. Integrated dual, 14-bit, 170 MSPS/250 MSPS ADC.
Diversity radio systems
2. The configurable JESD204B output block supports up to
Multimode digital receivers (3G)
5 Gbps per lane.
TD-SCDMA, WiMAX, W-CDMA, CDMA2000, GSM, EDGE, LTE
3. An on-chip, phase-locked loop (PLL) al ows users to provide
DOCSIS 3.0 CMTS upstream receive paths
a single ADC sampling clock; the PLL multiplies the ADC
HFC digital reverse path receivers
sampling clock to produce the corresponding JESD204B
I/Q demodulation systems
data rate clock.
Smart antenna systems
4. Support for an optional RF clock input to ease system board
Electronic test and measurement equipment
design.
Radar receivers
5. Proprietary differential input maintains excel ent SNR
COMSEC radio architectures
performance for input frequencies of up to 400 MHz.
IED detection/jamming systems
6. Operation from a single 1.8 V power supply.
General-purpose software radios
7. Standard serial port interface (SPI) that supports various
Broadband data applications
product features and functions such as controlling the clock DCS, power-down, test modes, voltage reference mode, over range fast detection, and serial output configuration. This product may be protected by one or more U.S. or international patents.
