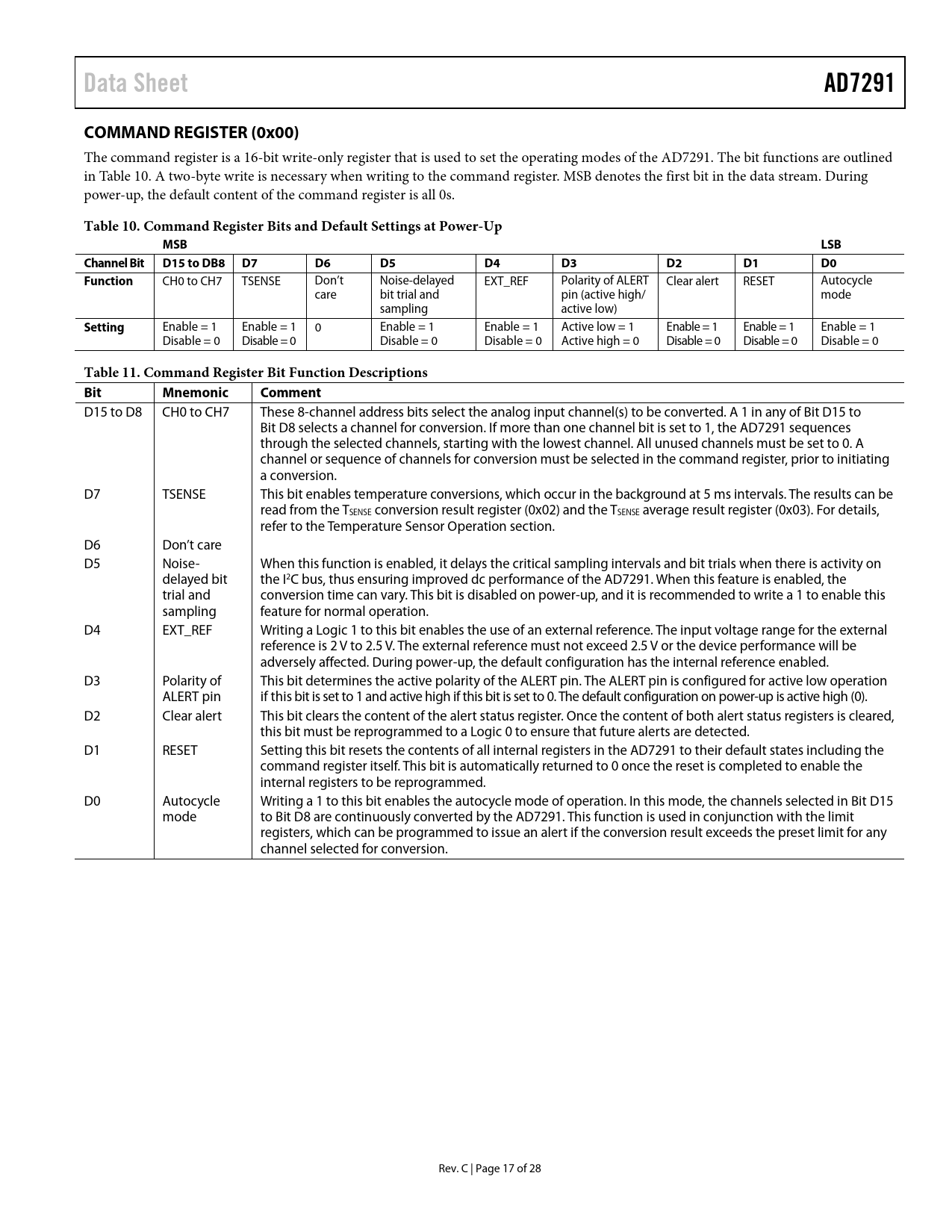

Data Sheet AD7291 COMMAND REGISTER (0x00)
The command register is a 16-bit write-only register that is used to set the operating modes of the AD7291. The bit functions are outlined in Table 10. A two-byte write is necessary when writing to the command register. MSB denotes the first bit in the data stream. During power-up, the default content of the command register is all 0s.
Table 10. Command Register Bits and Default Settings at Power-Up MSB LSB Channel Bit D15 to DB8 D7 D6 D5 D4 D3 D2 D1 D0 Function
CH0 to CH7 TSENSE Don’t Noise-delayed EXT_REF Polarity of ALERT Clear alert RESET Autocycle care bit trial and pin (active high/ mode sampling active low)
Setting
Enable = 1 Enable = 1 0 Enable = 1 Enable = 1 Active low = 1 Enable = 1 Enable = 1 Enable = 1 Disable = 0 Disable = 0 Disable = 0 Disable = 0 Active high = 0 Disable = 0 Disable = 0 Disable = 0
Table 11. Command Register Bit Function Descriptions Bit Mnemonic Comment
D15 to D8 CH0 to CH7 These 8-channel address bits select the analog input channel(s) to be converted. A 1 in any of Bit D15 to Bit D8 selects a channel for conversion. If more than one channel bit is set to 1, the AD7291 sequences through the selected channels, starting with the lowest channel. All unused channels must be set to 0. A channel or sequence of channels for conversion must be selected in the command register, prior to initiating a conversion. D7 TSENSE This bit enables temperature conversions, which occur in the background at 5 ms intervals. The results can be read from the TSENSE conversion result register (0x02) and the TSENSE average result register (0x03). For details, refer to the Temperature Sensor Operation section. D6 Don’t care D5 Noise- When this function is enabled, it delays the critical sampling intervals and bit trials when there is activity on delayed bit the I2C bus, thus ensuring improved dc performance of the AD7291. When this feature is enabled, the trial and conversion time can vary. This bit is disabled on power-up, and it is recommended to write a 1 to enable this sampling feature for normal operation. D4 EXT_REF Writing a Logic 1 to this bit enables the use of an external reference. The input voltage range for the external reference is 2 V to 2.5 V. The external reference must not exceed 2.5 V or the device performance will be adversely affected. During power-up, the default configuration has the internal reference enabled. D3 Polarity of This bit determines the active polarity of the ALERT pin. The ALERT pin is configured for active low operation ALERT pin if this bit is set to 1 and active high if this bit is set to 0. The default configuration on power-up is active high (0). D2 Clear alert This bit clears the content of the alert status register. Once the content of both alert status registers is cleared, this bit must be reprogrammed to a Logic 0 to ensure that future alerts are detected. D1 RESET Setting this bit resets the contents of all internal registers in the AD7291 to their default states including the command register itself. This bit is automatically returned to 0 once the reset is completed to enable the internal registers to be reprogrammed. D0 Autocycle Writing a 1 to this bit enables the autocycle mode of operation. In this mode, the channels selected in Bit D15 mode to Bit D8 are continuously converted by the AD7291. This function is used in conjunction with the limit registers, which can be programmed to issue an alert if the conversion result exceeds the preset limit for any channel selected for conversion. Rev. C | Page 17 of 28 Document Outline FEATURES FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS I2C TIMING SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY CIRCUIT INFORMATION CONVERTER OPERATION ANALOG INPUT ADC TRANSFER FUNCTION TEMPERATURE SENSOR OPERATION TEMPERATURE SENSOR AVERAGING Temperature Value Format VDRIVE THE INTERNAL OR EXTERNAL REFERENCE RESET INTERNAL REGISTER STRUCTURE ADDRESS POINTER REGISTER COMMAND REGISTER (0x00) Sample Delay and Bit Trial Delay VOLTAGE CONVERSION RESULT REGISTER (0x01) Temperature Value Format TSENSE CONVERSION RESULT REGISTER (0x02) TSENSE AVERAGE RESULT REGISTER (0X03) LIMIT REGISTERS (0X04 TO 0X1E) DATAHIGH Register DATALOW Register HYSTERESIS REGISTER ALERT STATUS REGISTER A AND ALERT STATUS REGISTER B (0x1F AND 0x20) I2C INTERFACE SERIAL BUS ADDRESS BYTE GENERAL I2C TIMING WRITING TO THE AD7291 WRITING TWO BYTES OF DATA TO A 16-BIT REGISTER WRITING TO MULTIPLE REGISTERS READING DATA FROM THE AD7291 READING TWO BYTES OF DATA FROM A 16-BIT REGISTER MODES OF OPERATION COMMAND MODE AUTOCYCLE MODE OUTLINE DIMENSIONS ORDERING GUIDE
