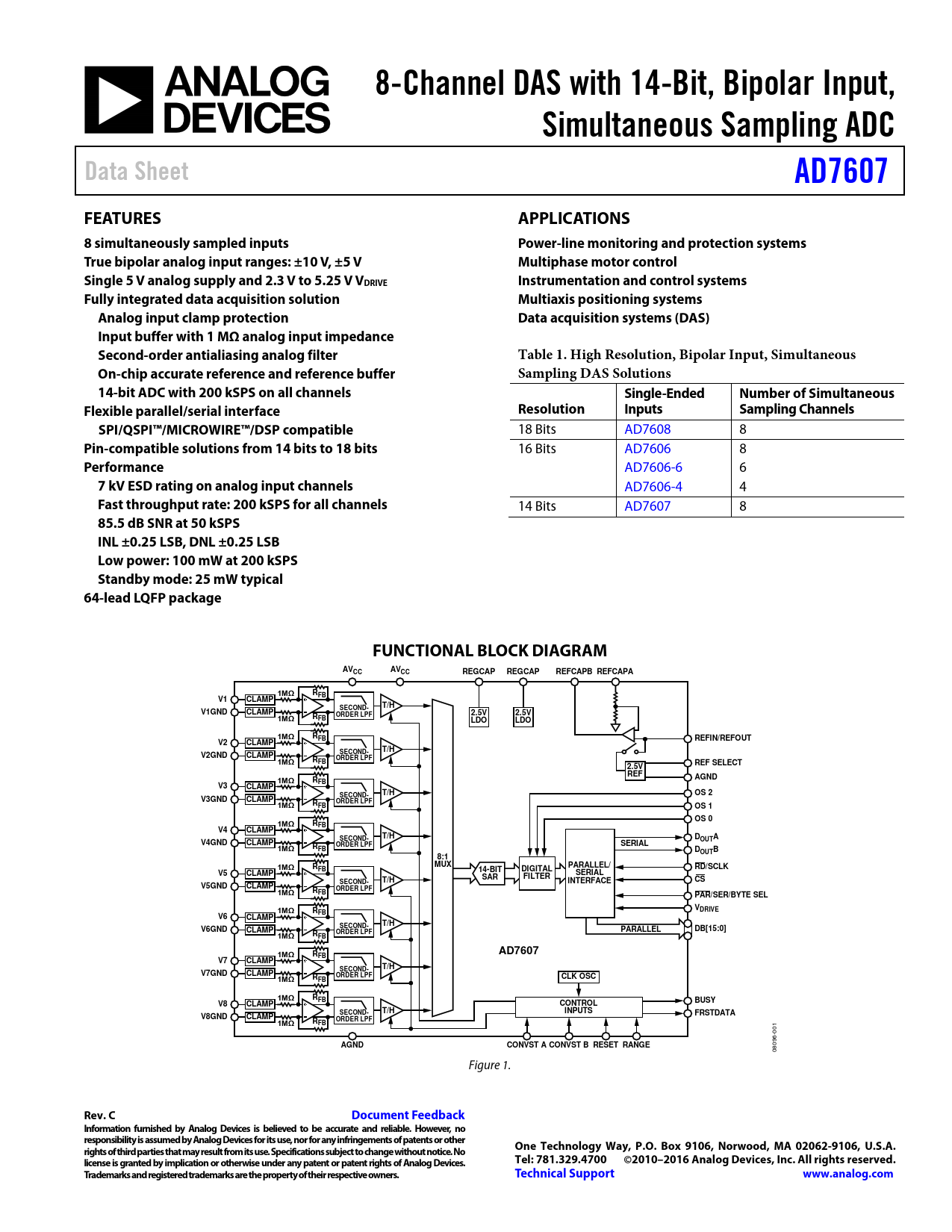

8-Channel DAS with 14-Bit, Bipolar Input,. Simultaneous Sampling ADC. Data Sheet. AD7607. FEATURES. APPLICATIONS

Datasheet AD7607 Analog Devices, Revisión: D

Línea de modelo para esta hoja de datos

Versión de texto del documento

8-Channel DAS with 14-Bit, Bipolar Input, Simultaneous Sampling ADC Data Sheet AD7607 FEATURES APPLICATIONS 8 simultaneously sampled inputs Power-line monitoring and protection systems True bipolar analog input ranges: ±10 V, ±5 V Multiphase motor control Single 5 V analog supply and 2.3 V to 5.25 V VDRIVE Instrumentation and control systems Fully integrated data acquisition solution Multiaxis positioning systems Analog input clamp protection Data acquisition systems (DAS) Input buffer with 1 MΩ analog input impedance Second-order antialiasing analog filter Table 1. High Resolution, Bipolar Input, Simultaneous On-chip accurate reference and reference buffer Sampling DAS Solutions 14-bit ADC with 200 kSPS on all channels Single-Ended Number of Simultaneous Flexible parallel/serial interface Resolution Inputs Sampling Channels SPI/QSPI™/MICROWIRE™/DSP compatible
18 Bits AD7608 8
Pin-compatible solutions from 14 bits to 18 bits
16 Bits AD7606 8
Performance
AD7606-6 6
7 kV ESD rating on analog input channels
AD7606-4 4
Fast throughput rate: 200 kSPS for all channels
14 Bits AD7607 8
85.5 dB SNR at 50 kSPS INL ±0.25 LSB, DNL ±0.25 LSB Low power: 100 mW at 200 kSPS Standby mode: 25 mW typical 64-lead LQFP package FUNCTIONAL BLOCK DIAGRAM AV AV CC CC REGCAP REGCAP REFCAPB REFCAPA 1MΩ RFB V1 CLAMP SECOND- T/H V1GND CLAMP 1MΩ R ORDER LPF 2.5V 2.5V FB LDO LDO 1MΩ RFB REFIN/REFOUT V2 CLAMP SECOND- T/H V2GND CLAMP 1MΩ R ORDER LPF FB REF SELECT 2.5V REF 1MΩ R AGND FB V3 CLAMP SECOND- T/H OS 2 V3GND CLAMP 1MΩ R ORDER LPF FB OS 1 1MΩ OS 0 RFB V4 CLAMP SECOND- T/H D V4GND CLAMP OUTA 1MΩ R ORDER LPF SERIAL FB DOUTB 8:1 1MΩ R MUX PARALLEL/ FB RD/SCLK 14-BIT DIGITAL V5 CLAMP SERIAL SAR FILTER INTERFACE CS SECOND- T/H V5GND CLAMP 1MΩ R ORDER LPF FB PAR/SER/BYTE SEL 1MΩ R V FB DRIVE V6 CLAMP SECOND- T/H V6GND CLAMP PARALLEL DB[15:0] 1MΩ R ORDER LPF FB 1MΩ R AD7607 FB V7 CLAMP SECOND- T/H V7GND CLAMP 1MΩ R ORDER LPF CLK OSC FB 1MΩ RFB V8 BUSY CLAMP CONTROL SECOND- T/H INPUTS FRSTDATA V8GND CLAMP 1MΩ R ORDER LPF FB
001
AGND CONVST A CONVST B RESET RANGE
08096- Figure 1.
