Datasheet AD8221 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | Precision Instrumentation Amplifier |
| Páginas / Página | 14 / 5 — Enhanced Product. AD8221-EP. ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL … |
| Formato / tamaño de archivo | PDF / 270 Kb |
| Idioma del documento | Inglés |
Enhanced Product. AD8221-EP. ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL CHARACTERISTICS. Parameter Rating. Table 3. Package θ. JA Unit
Línea de modelo para esta hoja de datos
Versión de texto del documento

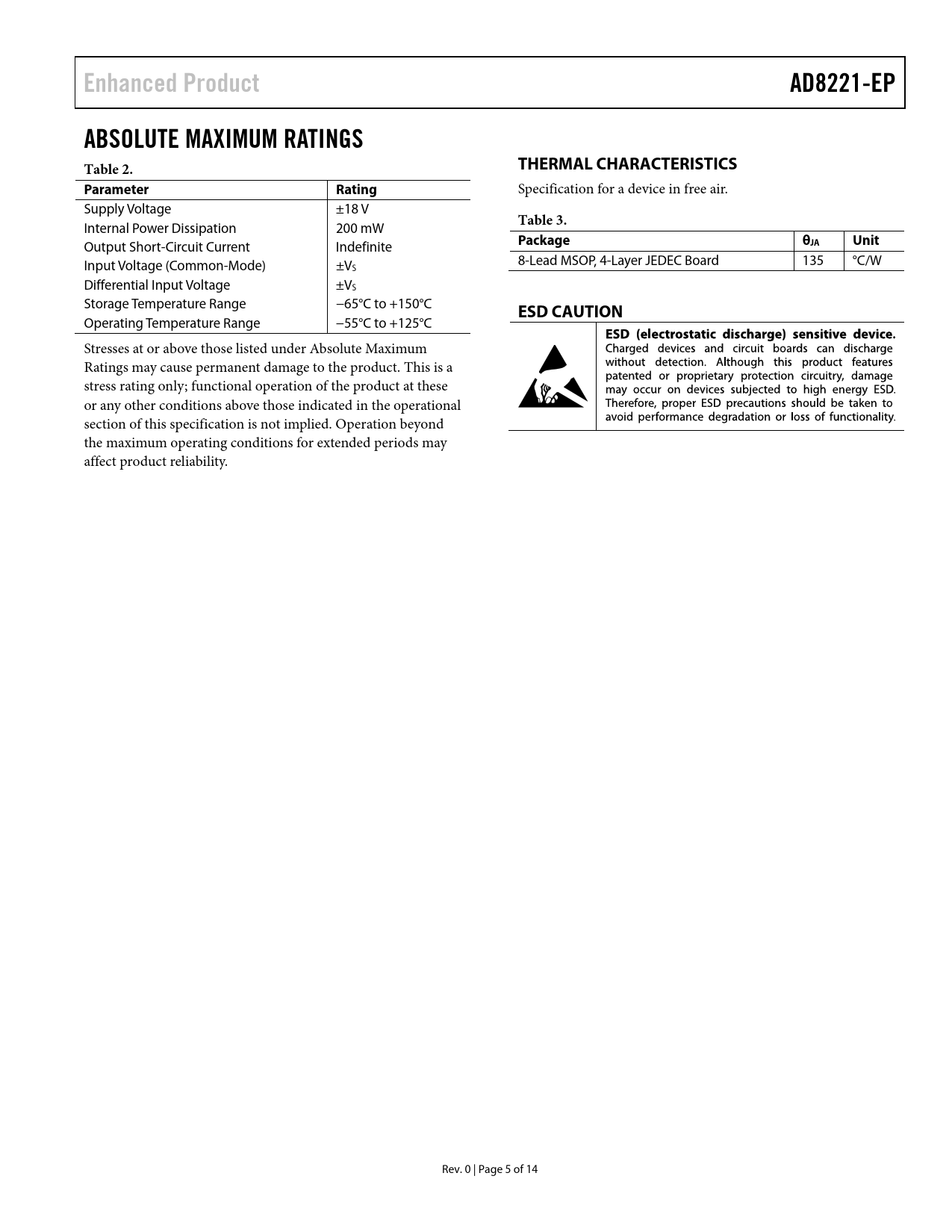

Enhanced Product AD8221-EP ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL CHARACTERISTICS Parameter Rating
Specification for a device in free air. Supply Voltage ±18 V
Table 3.
Internal Power Dissipation 200 mW
Package θ
Output Short-Circuit Current Indefinite
JA Unit
Input Voltage (Common-Mode) ±V 8-Lead MSOP, 4-Layer JEDEC Board 135 °C/W S Differential Input Voltage ±VS Storage Temperature Range −65°C to +150°C
ESD CAUTION
Operating Temperature Range −55°C to +125°C Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. 0 | Page 5 of 14 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS TYPICAL CONNECTION DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL CHARACTERISTICS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
