MCP651/1S/2/3/4/5/9. TABLE 1-3:. DIGITAL ELECTRICAL SPECIFICATIONS. Electrical Characteristics:. Parameters. Sym. Min

MCP651/1S/2/3/4/5/9 TABLE 1-3: DIGITAL ELECTRICAL SPECIFICATIONS Electrical Characteristics: Parameters Sym Min

Línea de modelo para esta hoja de datos

MCP651
MCP651S
MCP652
MCP653
MCP654
MCP655
MCP659

Versión de texto del documento

link to page 6 link to page 7 link to page 5 link to page 5 link to page 5

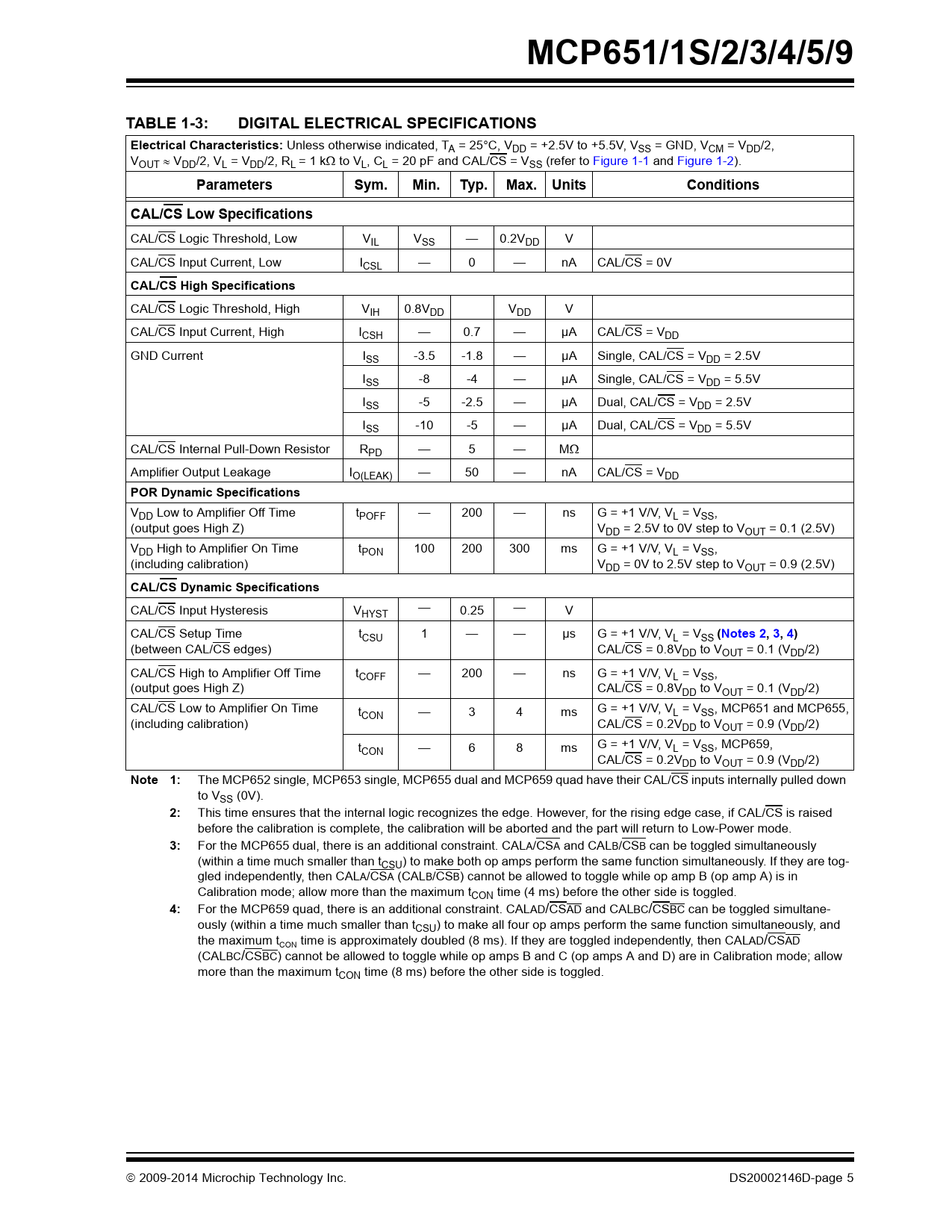

MCP651/1S/2/3/4/5/9 TABLE 1-3: DIGITAL ELECTRICAL SPECIFICATIONS Electrical Characteristics:
Unless otherwise indicated, TA = 25°C, VDD = +2.5V to +5.5V, VSS = GND, VCM = VDD/2, VOUT  VDD/2, VL = VDD/2, RL = 1 k to VL, CL = 20 pF and CAL/CS = VSS (refer to Figure 1-1 and Figure 1-2).
Parameters Sym. Min. Typ. Max. Units Conditions CAL/CS Low Specifications
CAL/CS Logic Threshold, Low VIL VSS — 0.2VDD V CAL/CS Input Current, Low ICSL — 0 — nA CAL/CS = 0V
CAL/CS High Specifications
CAL/CS Logic Threshold, High VIH 0.8VDD VDD V CAL/CS Input Current, High ICSH — 0.7 — µA CAL/CS = VDD GND Current ISS -3.5 -1.8 — µA Single, CAL/CS = VDD = 2.5V ISS -8 -4 — µA Single, CAL/CS = VDD = 5.5V ISS -5 -2.5 — µA Dual, CAL/CS = VDD = 2.5V ISS -10 -5 — µA Dual, CAL/CS = VDD = 5.5V CAL/CS Internal Pull-Down Resistor RPD — 5 — M Amplifier Output Leakage IO(LEAK) — 50 — nA CAL/CS = VDD
POR Dynamic Specifications
VDD Low to Amplifier Off Time tPOFF — 200 — ns G = +1 V/V, VL = VSS, (output goes High Z) VDD = 2.5V to 0V step to VOUT = 0.1 (2.5V) VDD High to Amplifier On Time tPON 100 200 300 ms G = +1 V/V, VL = VSS, (including calibration) VDD = 0V to 2.5V step to VOUT = 0.9 (2.5V)
CAL/CS Dynamic Specifications
CAL/CS Input Hysteresis V — HYST 0.25 — V CAL/CS Setup Time tCSU 1 — — µs G = + 1 V/V, VL = VSS
(Notes 2, 3, 4)
(between CAL/CS edges) CAL/CS = 0.8VDD to VOUT = 0.1 (VDD/2) CAL/CS High to Amplifier Off Time tCOFF — 200 — ns G = +1 V/V, VL = VSS, (output goes High Z) CAL/CS = 0.8VDD to VOUT = 0.1 (VDD/2) CAL/CS Low to Amplifier On Time tCON — 3 4 ms G = +1 V/V, VL = VSS, MCP651 and MCP655, (including calibration) CAL/CS = 0.2VDD to VOUT = 0.9 (VDD/2) tCON — 6 8 ms G = +1 V/V, VL = VSS, MCP659, CAL/CS = 0.2VDD to VOUT = 0.9 (VDD/2)
Note 1:
The MCP652 single, MCP653 single, MCP655 dual and MCP659 quad have their CAL/CS inputs internally pulled down to VSS (0V).
2:
This time ensures that the internal logic recognizes the edge. However, for the rising edge case, if CAL/CS is raised before the calibration is complete, the calibration will be aborted and the part will return to Low-Power mode.
3:
For the MCP655 dual, there is an additional constraint. CALA/CSA and CALB/CSB can be toggled simultaneously (within a time much smaller than tCSU) to make both op amps perform the same function simultaneously. If they are tog- gled independently, then CALA/CSA (CALB/CSB) cannot be allowed to toggle while op amp B (op amp A) is in Calibration mode; allow more than the maximum tCON time (4 ms) before the other side is toggled.
4:
For the MCP659 quad, there is an additional constraint. CALAD/CSAD and CALBC/CSBC can be toggled simultane- ously (within a time much smaller than tCSU) to make all four op amps perform the same function simultaneously, and the maximum t time is approximately doubled (8 ms). If they are toggled independently, then CAL CON AD/CSAD (CALBC/CSBC) cannot be allowed to toggle while op amps B and C (op amps A and D) are in Calibration mode; allow more than the maximum tCON time (8 ms) before the other side is toggled.  2009-2014 Microchip Technology Inc. DS20002146D-page 5 Document Outline 50 MHz, 200 µV Op Amps with mCal Features Typical Applications Design Aids Description Typical Application Circuit High Gain-Bandwidth Op Amp Portfolio Package Types 1.0 Electrical Characteristics 1.1 Absolute Maximum Ratings † 1.2 Specifications TABLE 1-1: DC Electrical Specifications TABLE 1-2: AC Electrical Specifications TABLE 1-3: Digital Electrical Specifications TABLE 1-4: Temperature Specifications 1.3 Timing Diagram FIGURE 1-1: Timing Diagram. 1.4 Test Circuits FIGURE 1-2: AC and DC Test Circuit for Most Specifications. 2.0 Typical Performance Curves 2.1 DC Signal Inputs FIGURE 2-1: Input Offset Voltage. FIGURE 2-2: Input Offset Voltage Drift. FIGURE 2-3: Input Offset Voltage Repeatability (repeated calibration). FIGURE 2-4: Input Offset Voltage vs. Power Supply Voltage. FIGURE 2-5: Input Offset Voltage vs. Output Voltage. FIGURE 2-6: Low-Input Common Mode Voltage Headroom vs. Ambient Temperature. FIGURE 2-7: High-Input Common Mode Voltage Headroom vs. Ambient Temperature. FIGURE 2-8: Input Offset Voltage vs. Common Mode Voltage with VDD = 2.5V. FIGURE 2-9: Input Offset Voltage vs. Common Mode Voltage with VDD = 5.5V. FIGURE 2-10: CMRR and PSRR vs. Ambient Temperature. FIGURE 2-11: DC Open-Loop Gain vs. Ambient Temperature. FIGURE 2-12: Input Bias and Offset Currents vs. Ambient Temperature with VDD = +5.5V. FIGURE 2-13: Input Bias and Offset Currents vs. Common Mode Input Voltage with TA = +85°C. FIGURE 2-14: Input Bias and Offset Currents vs. Common Mode Input Voltage with TA = +125°C. FIGURE 2-15: Input Bias Current vs. Input Voltage (below VSS). 2.2 Other DC Voltages and Currents FIGURE 2-16: Ratio of Output Voltage Headroom to Output Current. FIGURE 2-17: Output Voltage Headroom vs. Ambient Temperature. FIGURE 2-18: Output Short-Circuit Current vs. Power Supply Voltage. FIGURE 2-19: Supply Current vs. Power Supply Voltage. FIGURE 2-20: Supply Current vs. Common Mode Input Voltage. FIGURE 2-21: Power-On Reset Voltages vs. Ambient Temperature. FIGURE 2-22: Normalized Internal Calibration Voltage. FIGURE 2-23: VCAL Input Resistance vs. Temperature. 2.3 Frequency Response FIGURE 2-24: CMRR and PSRR vs. Frequency. FIGURE 2-25: Open-Loop Gain vs. Frequency. FIGURE 2-26: Gain-Bandwidth Product and Phase Margin vs. Ambient Temperature. FIGURE 2-27: Gain-Bandwidth Product and Phase Margin vs. Common Mode Input Voltage. FIGURE 2-28: Gain-Bandwidth Product and Phase Margin vs. Output Voltage. FIGURE 2-29: Closed-Loop Output Impedance vs. Frequency. FIGURE 2-30: Gain Peaking vs. Normalized Capacitive Load. FIGURE 2-31: Channel-to-Channel Separation vs. Frequency. 2.4 Input Noise and Distortion FIGURE 2-32: Input Noise Voltage Density vs. Frequency. FIGURE 2-33: Input Noise Voltage Density vs. Input Common Mode Voltage with f = 100 Hz. FIGURE 2-34: Input Noise Voltage Density vs. Input Common Mode Voltage with f = 1 MHz. FIGURE 2-35: Input Noise plus Offset vs. Time with 0.1 Hz Filter. FIGURE 2-36: THD+N vs. Frequency. 2.5 Time Response FIGURE 2-37: Non-inverting Small Signal Step Response. FIGURE 2-38: Non-inverting Large Signal Step Response. FIGURE 2-39: Inverting Small Signal Step Response. FIGURE 2-40: Inverting Large Signal Step Response. FIGURE 2-41: The MCP651/1S/2/3/4/5/9 family shows no input phase reversal with overdrive. FIGURE 2-42: Slew Rate vs. Ambient Temperature. FIGURE 2-43: Maximum Output Voltage Swing vs. Frequency. 2.6 Calibration and Chip Select Response FIGURE 2-44: CAL/CS Current vs. Power Supply Voltage. FIGURE 2-45: CAL/CS Voltage, Output Voltage and Supply Current (for Side A) vs. Time with VDD = 2.5V. FIGURE 2-46: CAL/CS Voltage, Output Voltage and Supply Current (for Side A) vs. Time with VDD = 5.5V. FIGURE 2-47: CAL/CS Hysteresis vs. Ambient Temperature. FIGURE 2-48: CAL/CS Turn-On Time vs. Ambient Temperature. FIGURE 2-49: CAL/CS’s Pull-Down Resistor (RPD) vs. Ambient Temperature. FIGURE 2-50: Quiescent Current in Shutdown vs. Power Supply Voltage. FIGURE 2-51: Output Leakage Current vs. Output Voltage. 3.0 Pin Descriptions TABLE 3-1: Pin Function Table 3.1 Analog Outputs 3.2 Analog Inputs 3.3 Power Supply Pins 3.4 Calibration Common Mode Voltage Input 3.5 Calibrate/Chip Select Digital Input 3.6 Exposed Thermal Pad (EP) 4.0 Applications 4.1 Calibration and Chip Select FIGURE 4-1: Common-Mode Reference’s Input Circuitry. FIGURE 4-2: Setting VCM with External Resistors. 4.2 Input FIGURE 4-3: Simplified Analog Input ESD Structures. FIGURE 4-4: Protecting the Analog Inputs. FIGURE 4-5: Unity-Gain Voltage Limitations for Linear Operation. 4.3 Rail-to-Rail Output FIGURE 4-6: Output Current. FIGURE 4-7: Diagram for Resistive Load Power Calculations. FIGURE 4-8: Diagram for Capacitive Load Power Calculations. 4.4 Improving Stability FIGURE 4-9: Output Resistor, RISO Stabilizes Large Capacitive Loads. FIGURE 4-10: Recommended RISO Values for Capacitive Loads. FIGURE 4-11: Amplifier with Parasitic Capacitance. FIGURE 4-12: Maximum Recommended RF vs. Gain. 4.5 Power Supply 4.6 High-Speed PCB Layout 4.7 Typical Applications FIGURE 4-13: Power Driver. FIGURE 4-14: Transimpedance Amplifier for an Optical Detector. FIGURE 4-15: H-Bridge Driver. 5.0 Design Aids 5.1 SPICE Macro Model 5.2 FilterLab® Software 5.3 Microchip Advanced Part Selector (MAPS) 5.4 Analog Demonstration and Evaluation Boards 5.5 Application Notes 6.0 Packaging Information 6.1 Package Marking Information 6.2 Package Marking Information Appendix A: Revision History Product Identification System Trademarks Worldwide Sales and Service
