Datasheet OP27 (Analog Devices)

FabricanteAnalog Devices
DescripciónLow Noise, Precision Operational Amplifier
Páginas / Página13 / 1 — DLA LAND AND MARITIME. COLUMBUS, OHIO 43218-3990. STANDARD. …
Formato / tamaño de archivoPDF / 113 Kb
Idioma del documentoInglés

DLA LAND AND MARITIME. COLUMBUS, OHIO 43218-3990. STANDARD. http://www.landandmaritime.dla.mil. MICROCIRCUIT. DRAWING. 5962-94680

Datasheet OP27 Analog Devices

Línea de modelo para esta hoja de datos

Versión de texto del documento

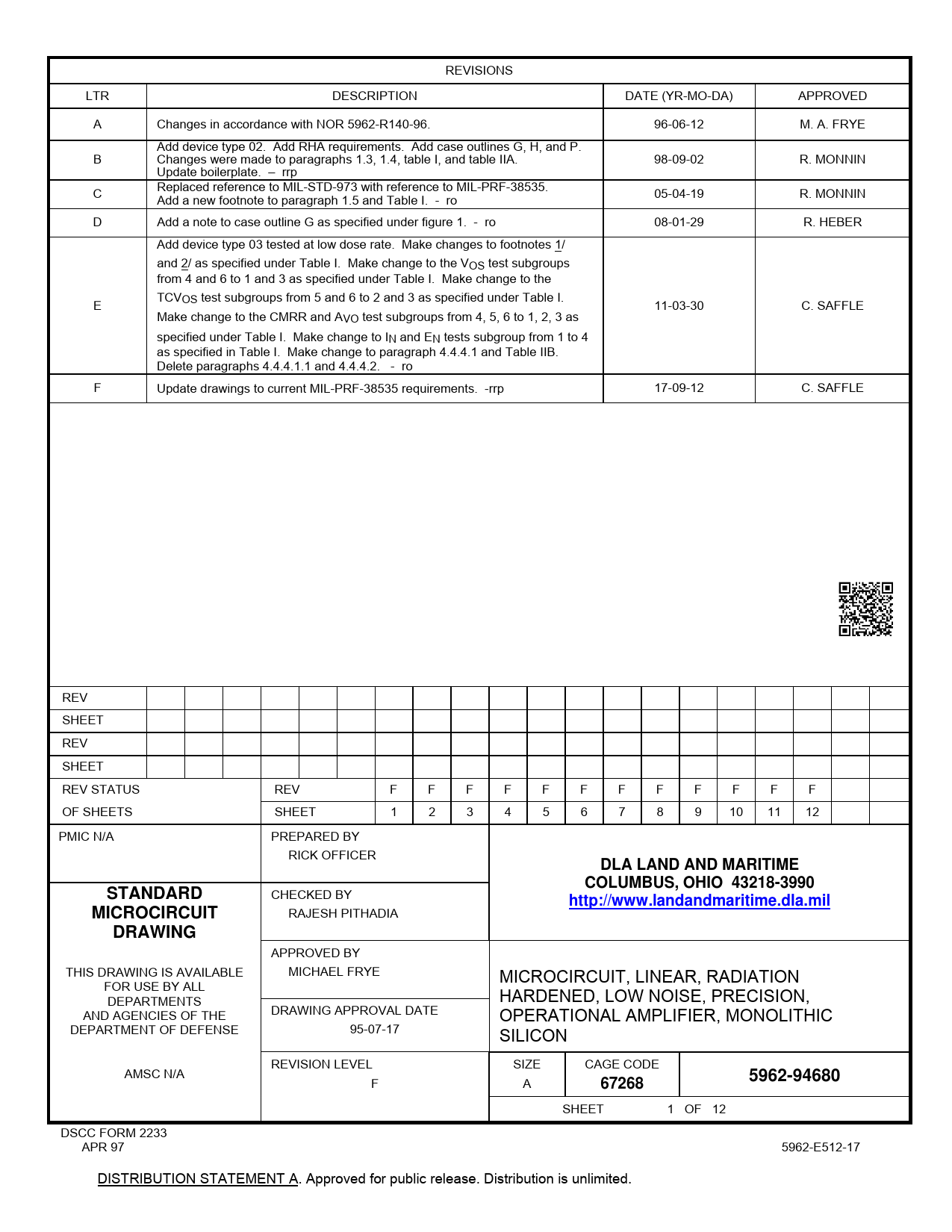

REVISIONS LTR DESCRIPTION DATE (YR-MO-DA) APPROVED A Changes in accordance with NOR 5962-R140-96. 96-06-12 M. A. FRYE Add device type 02. Add RHA requirements. Add case outlines G, H, and P. B Changes were made to paragraphs 1.3, 1.4, table I, and table IIA. 98-09-02 R. MONNIN Update boilerplate. – rrp C Replaced reference to MIL-STD-973 with reference to MIL-PRF-38535. Add a new footnote to paragraph 1.5 and Table I. - ro 05-04-19 R. MONNIN D Add a note to case outline G as specified under figure 1. - ro 08-01-29 R. HEBER Add device type 03 tested at low dose rate. Make changes to footnotes 1/ and 2/ as specified under Table I. Make change to the VOS test subgroups from 4 and 6 to 1 and 3 as specified under Table I. Make change to the TCV E OS test subgroups from 5 and 6 to 2 and 3 as specified under Table I. 11-03-30 C. SAFFLE Make change to the CMRR and AVO test subgroups from 4, 5, 6 to 1, 2, 3 as specified under Table I. Make change to IN and EN tests subgroup from 1 to 4 as specified in Table I. Make change to paragraph 4.4.4.1 and Table IIB. Delete paragraphs 4.4.4.1.1 and 4.4.4.2. - ro F Update drawings to current MIL-PRF-38535 requirements. -rrp 17-09-12 C. SAFFLE REV SHEET REV SHEET REV STATUS REV F F F F F F F F F F F F OF SHEETS SHEET 1 2 3 4 5 6 7 8 9 10 11 12 PMIC N/A PREPARED BY RICK OFFICER
DLA LAND AND MARITIME COLUMBUS, OHIO 43218-3990 STANDARD
CHECKED BY
http://www.landandmaritime.dla.mil MICROCIRCUIT
RAJESH PITHADIA
DRAWING
APPROVED BY THIS DRAWING IS AVAILABLE MICHAEL FRYE MICROCIRCUIT, LINEAR, RADIATION FOR USE BY ALL DEPARTMENTS HARDENED, LOW NOISE, PRECISION, AND AGENCIES OF THE DRAWING APPROVAL DATE OPERATIONAL AMPLIFIER, MONOLITHIC DEPARTMENT OF DEFENSE 95-07-17 SILICON REVISION LEVEL SIZE CAGE CODE AMSC N/A
5962-94680
F A
67268
SHEET 1 OF 12 DSCC FORM 2233 APR 97 5962-E512-17 DISTRIBUTION STATEMENT A. Approved for public release. Distribution is unlimited.
