Datasheet DN2535 (Microchip) - 6
| Fabricante | Microchip |
| Descripción | N-Channel Depletion-Mode Vertical DMOS FETs Features |
| Páginas / Página | 6 / 6 — DN2535. 3-Lead TO-220 Package Outline (N5). Front View. Side View. View A … |
| Formato / tamaño de archivo | PDF / 772 Kb |
| Idioma del documento | Inglés |
DN2535. 3-Lead TO-220 Package Outline (N5). Front View. Side View. View A - A. View B. Symbol. Dimen-. sion. (inches)
Línea de modelo para esta hoja de datos
Versión de texto del documento

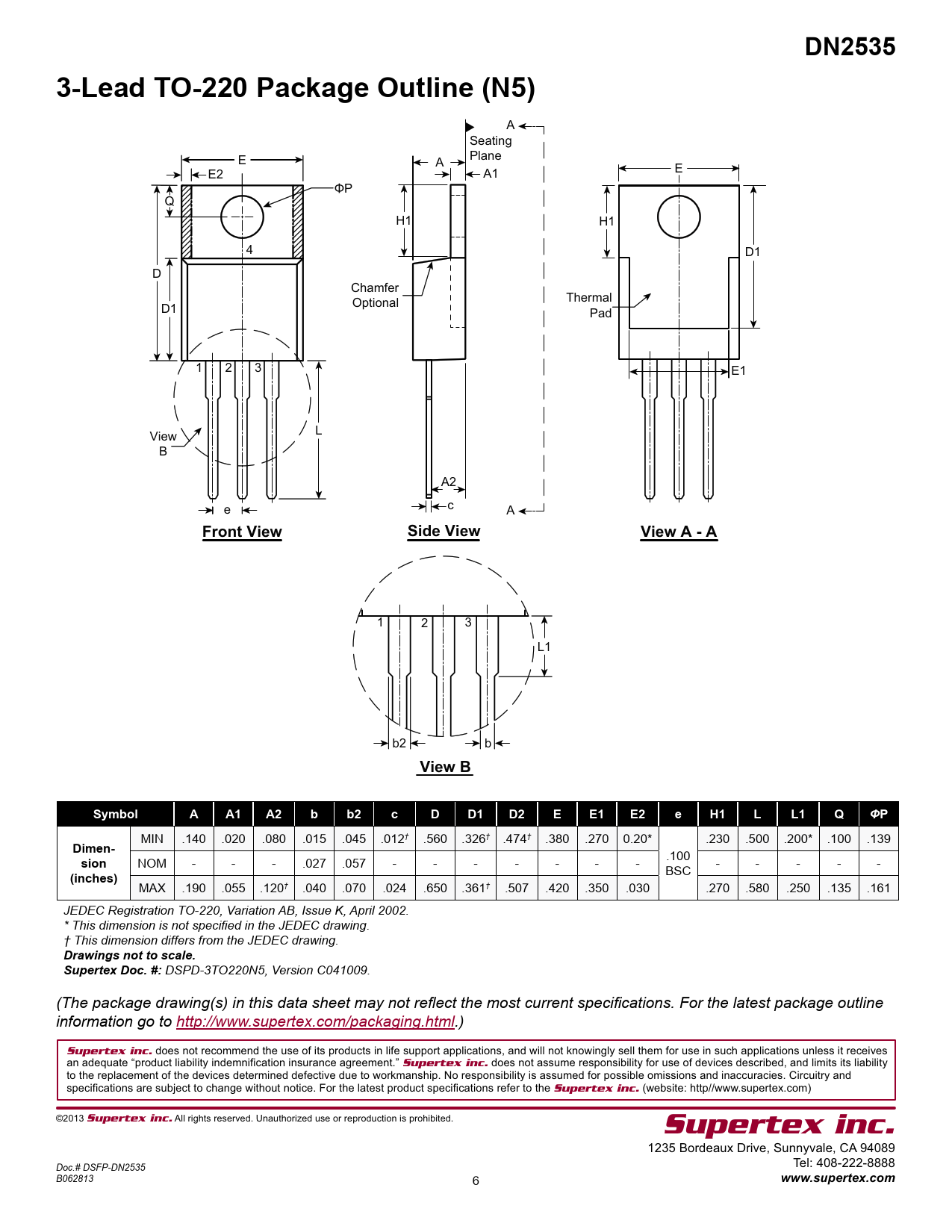

DN2535 3-Lead TO-220 Package Outline (N5)
A Seating E Plane A E2 E A1 ΦP Q H1 H1 4 D1 D Chamfer Thermal D1 Optional Pad 1 2 3 E1 L View B A2 e c A
Front View Side View View A - A
1 2 3 L1 b2 b
View B Symbol A A1 A2 b b2 c D D1 D2 E E1 E2 e H1 L L1 Q Φ P
MIN .140 .020 .080 .015 .045 .012† .560 .326† .474† .380 .270 0.20* .230 .500 .200* .100 .139
Dimen- sion
.100 NOM - - - .027 .057 - - - - - - - - - - - -
(inches)
BSC MAX .190 .055 .120† .040 .070 .024 .650 .361† .507 .420 .350 .030 .270 .580 .250 .135 .161 JEDEC Registration TO-220, Variation AB, Issue K, April 2002. * This dimension is not specified in the JEDEC drawing. † This dimension differs from the JEDEC drawing.
Drawings not to scale. Supertex Doc. #:
DSPD-3TO220N5, Version C041009. (The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information go to http://www.supertex.com/packaging.html.)
Supertex inc.
does not recommend the use of its products in life support applications, and will not knowingly sell them for use in such applications unless it receives an adequate “product liability indemnification insurance agreement.”
Supertex inc.
does not assume responsibility for use of devices described, and limits its liability to the replacement of the devices determined defective due to workmanship. No responsibility is assumed for possible omissions and inaccuracies. Circuitry and specifications are subject to change without notice. For the latest product specifications refer to the
Supertex inc.
(website: http//www.supertex.com) ©2013
Supertex inc.
All rights reserved. Unauthorized use or reproduction is prohibited.
Supertex inc.
1235 Bordeaux Drive, Sunnyvale, CA 94089 Tel: 408-222-8888 Doc.# DSFP-DN2535 B062813 6
