Datasheet AD8599-EP (Analog Devices)
| Fabricante | Analog Devices |
| Descripción | Ultralow Distortion, Ultralow Noise Op Amp (Dual) |
| Páginas / Página | 8 / 1 — Dual, Ultralow Distortion,. Ultralow Noise Op Amp. Enhanced Product. … |
| Formato / tamaño de archivo | PDF / 233 Kb |
| Idioma del documento | Inglés |

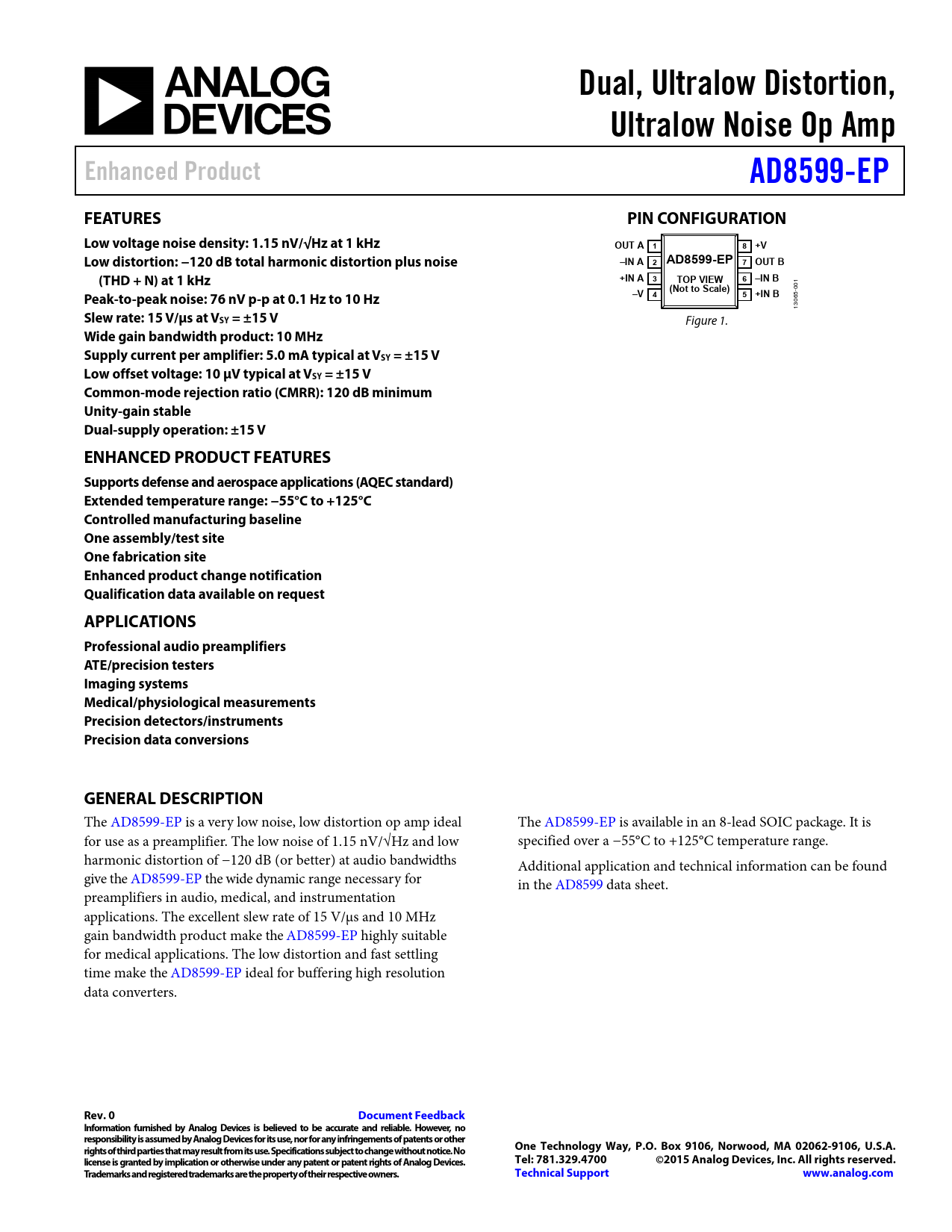

Dual, Ultralow Distortion,. Ultralow Noise Op Amp. Enhanced Product. AD8599-EP. FEATURES. PIN CONFIGURATION
Línea de modelo para esta hoja de datos
Versión de texto del documento
Dual, Ultralow Distortion, Ultralow Noise Op Amp Enhanced Product AD8599-EP FEATURES PIN CONFIGURATION Low voltage noise density: 1.15 nV/√Hz at 1 kHz OUT A 1 8 +V Low distortion: −120 dB total harmonic distortion plus noise –IN A 2 AD8599-EP 7 OUT B (THD + N) at 1 kHz +IN A 3 TOP VIEW 6 –IN B (Not to Scale)
01 0
–V 5 +IN B
5-
Peak-to-peak noise: 76 nV p-p at 0.1 Hz to 10 Hz 4
06 13
Slew rate: 15 V/μs at VSY = ±15 V
Figure 1.
Wide gain bandwidth product: 10 MHz Supply current per amplifier: 5.0 mA typical at VSY = ±15 V Low offset voltage: 10 μV typical at V SY = ±15 V Common-mode rejection ratio (CMRR): 120 dB minimum Unity-gain stable Dual-supply operation: ±15 V ENHANCED PRODUCT FEATURES Supports defense and aerospace applications (AQEC standard) Extended temperature range: −55°C to +125°C Controlled manufacturing baseline One assembly/test site One fabrication site Enhanced product change notification Qualification data available on request APPLICATIONS Professional audio preamplifiers ATE/precision testers Imaging systems Medical/physiological measurements Precision detectors/instruments Precision data conversions GENERAL DESCRIPTION
The AD8599-EP is a very low noise, low distortion op amp ideal The AD8599-EP is available in an 8-lead SOIC package. It is for use as a preamplifier. The low noise of 1.15 nV/√Hz and low specified over a −55°C to +125°C temperature range. harmonic distortion of −120 dB (or better) at audio bandwidths Additional application and technical information can be found give the AD8599-EP the wide dynamic range necessary for in the AD8599 data sheet. preamplifiers in audio, medical, and instrumentation applications. The excellent slew rate of 15 V/μs and 10 MHz gain bandwidth product make the AD8599-EP highly suitable for medical applications. The low distortion and fast settling time make the AD8599-EP ideal for buffering high resolution data converters.
Rev. 0 Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2015 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS PIN CONFIGURATION GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE POWER SEQUENCING ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
