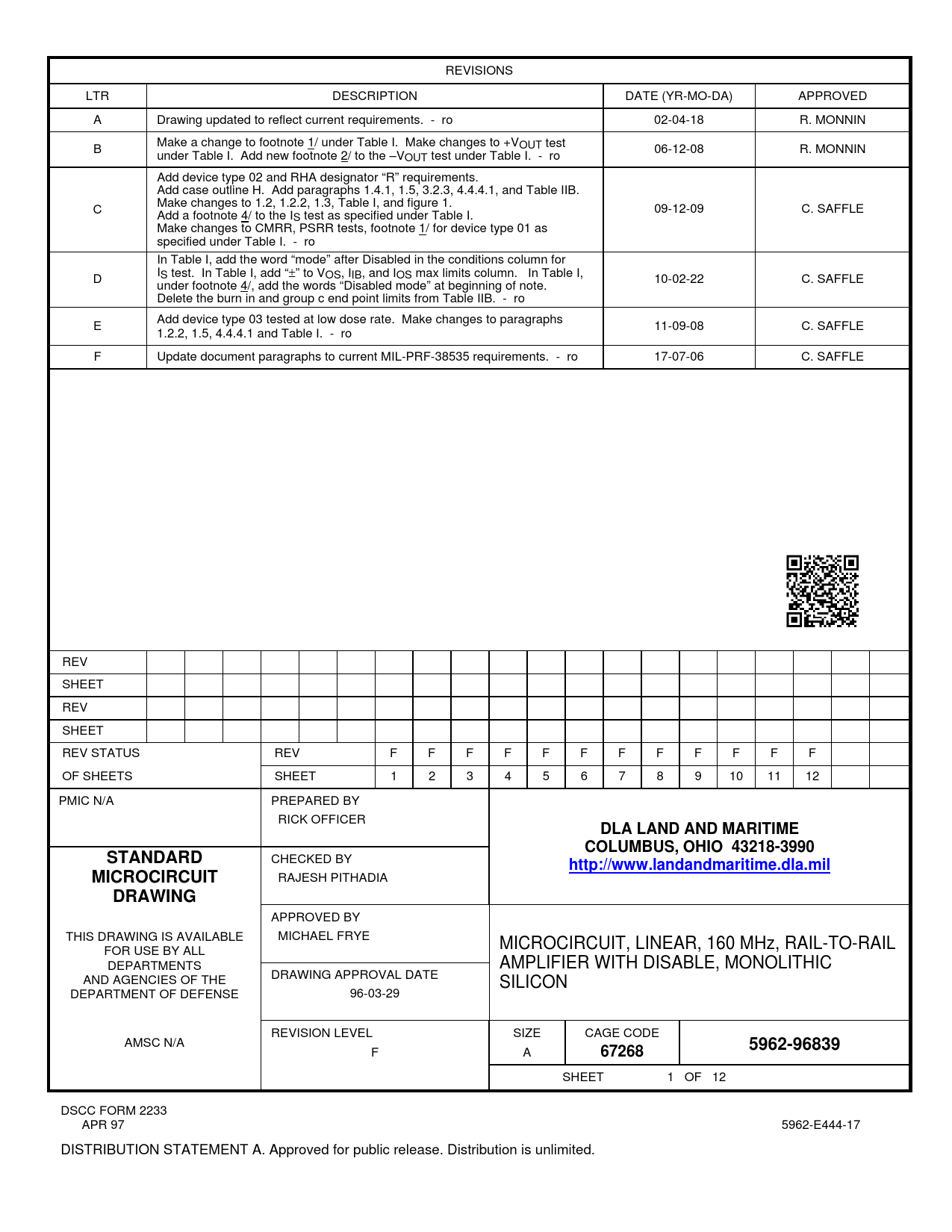

DLA LAND AND MARITIME. COLUMBUS, OHIO 43218-3990. STANDARD. http://www.landandmaritime.dla.mil. MICROCIRCUIT. DRAWING. 5962-96839

Datasheet AD8041 Analog Devices

Línea de modelo para esta hoja de datos

Versión de texto del documento

REVISIONS LTR DESCRIPTION DATE (YR-MO-DA) APPROVED A Drawing updated to reflect current requirements. - ro 02-04-18 R. MONNIN Make a change to footnote 1/ under Table I. Make changes to +V B OUT test 06-12-08 R. MONNIN under Table I. Add new footnote 2/ to the –VOUT test under Table I. - ro Add device type 02 and RHA designator “R” requirements. Add case outline H. Add paragraphs 1.4.1, 1.5, 3.2.3, 4.4.4.1, and Table IIB. Make changes to 1.2, 1.2.2, 1.3, Table I, and figure 1. C 09-12-09 C. SAFFLE Add a footnote 4/ to the IS test as specified under Table I. Make changes to CMRR, PSRR tests, footnote 1/ for device type 01 as specified under Table I. - ro In Table I, add the word “mode” after Disabled in the conditions column for I D S test. In Table I, add “” to VOS, IIB, and IOS max limits column. In Table I, 10-02-22 C. SAFFLE under footnote 4/, add the words “Disabled mode” at beginning of note. Delete the burn in and group c end point limits from Table IIB. - ro Add device type 03 tested at low dose rate. Make changes to paragraphs E 11-09-08 C. SAFFLE 1.2.2, 1.5, 4.4.4.1 and Table I. - ro F Update document paragraphs to current MIL-PRF-38535 requirements. - ro 17-07-06 C. SAFFLE REV SHEET REV SHEET REV STATUS REV F F F F F F F F F F F F OF SHEETS SHEET 1 2 3 4 5 6 7 8 9 10 11 12 PMIC N/A PREPARED BY RICK OFFICER
DLA LAND AND MARITIME COLUMBUS, OHIO 43218-3990 STANDARD
CHECKED BY
http://www.landandmaritime.dla.mil MICROCIRCUIT
RAJESH PITHADIA
DRAWING
APPROVED BY THIS DRAWING IS AVAILABLE MICHAEL FRYE MICROCIRCUIT, LINEAR, 160 MHz, RAIL-TO-RAIL FOR USE BY ALL DEPARTMENTS AMPLIFIER WITH DISABLE, MONOLITHIC AND AGENCIES OF THE DRAWING APPROVAL DATE SILICON DEPARTMENT OF DEFENSE 96-03-29 REVISION LEVEL SIZE CAGE CODE AMSC N/A
5962-96839
F A
67268
SHEET 1 OF 12 DSCC FORM 2233 APR 97 5962-E444-17 DISTRIBUTION STATEMENT A. Approved for public release. Distribution is unlimited.
